Product Details:
|
| Name: | Flexo Printer Slotter Machine | Model: | YKC-1226 |
|---|---|---|---|
| Origin: | China | Min: | 1 Set |
| Type: | Carton Printer Slotter Die Cutter Machine | After-sales Service Provided: | Online Support |
| Application: | Carton Box Making Machine | Warranty: | 1 Year |
| Speed: | 0 To 60pcs/min | Color: | Customer's Request |
| Condition: | New | Usage: | For Carton Print Slotting And Die Cutting |
| Function: | Corrugated Carton Printing |

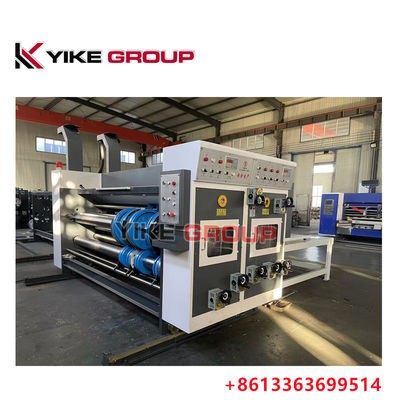

Chain Type YK-1426 Corrugated Carton Box Flexo Printer Slotter Die Cutter Machine
Specification:
| Max feeding paperboard size | 1200 mm * 2600 mm |
| Max effective printing size | 1200 mm * 2400 mm |
| Min process paperboard size | 450 mm * 550 mm |
| Thickness of the printing plank | 7.2 mm |
| design speed | 80pieces / min |
| economical speed | 60 pieces / min |
| Precision of the printing | ±0. 75 mm |
| Printing rolling axle circle-oriented regulating | 360 degree revolving |
| Printing rolling axle-oriented regulating | +/-10mm |
Main features
1.printer slotter phase :electric number digital adjust
2. auto ink circulation system
3. combined slotting creasing slitting knives which is easy to change order.
4.The gear of the machine: Auto lubrication with oil
5.Machine body thickness:50mm 6.automatic seperated, pneumatic lock up.
Chain Feed table unit
1. Table by a welded steel plate and channel. Table plate thickness: 3.7mm. Channel is China's national standard of 10 # channel steel. Ink Flexo Printing Slotting Machine
2. Table length 2380mm, 4 to 5 groups feed chain. Each chain has three push feeder.
4.ü The forefront of the table with platen spring. Flexographic Printer New Multicolor Semi-Automatic Letterpress paper printer Chian Machine
5.Automatic measurement of the number of cardboard.
Printing Unit:
1 high quality printing roller and anilox roller to make sure the printing precisely.
2 dynamic balance treatment, smooth operation and it is suitable for high speed operation.
3 high precision planetary phase adjustment device---the microcomputer digital phase meter can directly input digital, adjust faster, higher accuracy. 360 degree positive and negative adjustment.
4 Separate and combine by electric, pneumatic lock, pneumatic brake device ensure precision position; electric counter, the operation is convenient and quick.
5 Lubrication device: this machine adopts the automatic (mechanical pump) spray type circulation
lubrication device, automatic spray, inking amount evenly, each group and circulation, and improve the service life of the gear and the precision of the chromatically.
Slotting unit:
1. The slotting shaft adopt thickness wall seamless steel pipe and precisely processing, grinding, hard chrome, dynamic and static balance treatment, good operation.
1.2 The slotting with four knives synchronous adjusting device.
1.3 phase adjustment device: planetary gear structure
