Product Details:
|
| Automatic Grade: | Automatic | Condition: | New |
|---|---|---|---|
| Type: | Thin Blade Slitter Scorer | Application: | Machinery & Hardware |
| Warranty: | 1 Year | Keywords: | Thin Blade Slitter Scorer Machine |
| Color: | Customer's Request | Machine Type: | Thin Blade Slitter Scorer Machine |
| Speed: | 180pcs/min |

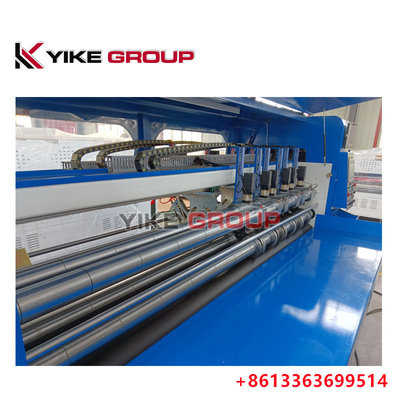

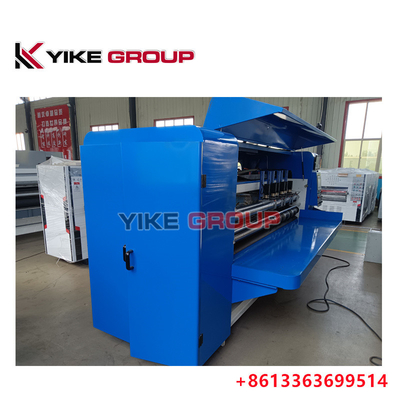

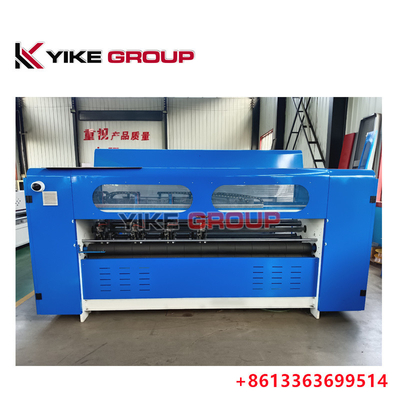

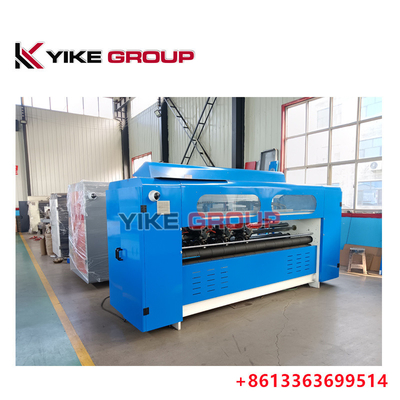

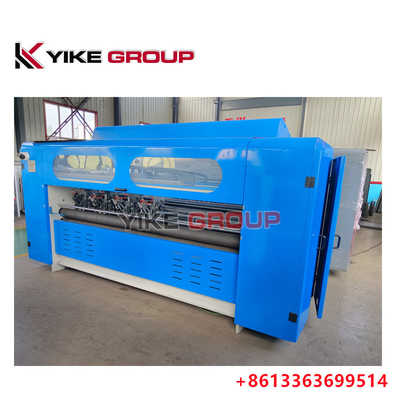

YK-2500C Computer Slitter Scorer Machine For Carton Box Making From YIKE GROUP
Human machine interface —PLC control,The system for robot operating system more humanized, simple structure, easy to maintain.
1.Manual/auto feeder is available
2. Pre pressing roller,slitting blade and scorer holder are auto adjusted
3.Grinding knife is auto/manual
4.Cardboard thickness and press power are auto adjusted(customer required)
5.Jog for fine-adjusted
6.Auto counter
7.Slitting and press line precision ±0.5mm
Auto slitter scorer :
8.Human machine interface —PLC control,cutter paper thin blade change order use stand alone stepper motor control,auto change order speed 1-20S,error precision±0.5 mm.
9. Operation humanized.,no technical content,worker use operation use easy.
10 Slitting part:Adopt high quality tungsten steel thin blade,sharp and long work life,slice more tidy,non-pressing and non-burr.
|
Model
|
YK--2500 | SMBD-ANC-2750 | ||
|
No.s of slitting scoring
|
4/6 5/8 6/10 | |||
|
Max.production speed
|
180m/min | 180m/min | 180m/min | 180m/min |
| Max.feeding width |
一刀与二刀最大分切2250mm The Max.slitting between the two blades:2250mm |
一刀与二刀最大分切2750mm The Max.slitting between the two blades:2750mm |
||
|
Max.slitting width
|
2600mm | 3100mm | ||
|
Min.slitting width
|
200mm | 200mm | ||
|
Min.feeding length
|
200mm |
200mm |
||
| Min.scoring distance |
40*135mm
|
40*135mm | ||
|
Gap adjustment
|
手动 | Manual | 手动 | Manual |
|
Main motor power
|
10kw | 12kw | ||
|
Dimensions L*W*H
|
1570*3450*1500mm | 1570*3950*1500mm | ||
|
Weight
|
2780kg | 2980kg | ||
