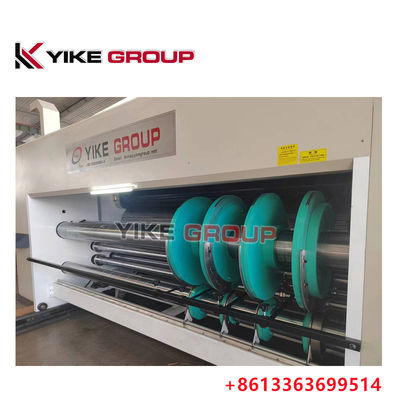

Product Details:
|
| Name: | Chain Feeder Printer Slotter Die Cutter Machine | Application: | Carton Box Making Machine |
|---|---|---|---|
| Speed: | 0 To 60pcs/min | Certification: | ISO CE |
| Condition: | New | Usage: | For Carton Print Slotting And Die Cutting |
| Max Feeding Paperboard Size: | 1400*2800mm | Design Speed: | 80pieces / Min |
| Economical Speed: | 60pieces / Min |
Main features
1.printer slotter phase :electric number digital adjust
2. auto ink circulation system
3. combined slotting creasing slitting knives which is easy to change order.
4.The gear of the machine: Auto lubrication with oil
5.Machine body thickness:50mm 6.automatic seperated, pneumatic lock up.
Chain Feed table unit
1. Table by a welded steel plate and channel. Table plate thickness: 3.7mm. Channel is China's national standard of 10 # channel steel. Ink Flexo Printing Slotting Machine
2.Table length 2380mm, 4 to 5 groups feed chain. Each chain has three push feeder.
3.Configuration 2 side cover. Made with 5 # angle iron.
4.The forefront of the table with platen spring. Flexographic Printer New Multicolor Semi-Automatic Letterpress paper printer Chian Machine
5. Automatic measurement of the number of cardboard.
Printer unit
Slotter unit
Die Cutting Unit
1. Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.
2.Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.
3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
4.Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
5.Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;
6. Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;
Technical parameter
|
Item
|
YK-1428 | YK-1426 |
|
The diameter of the anilox
|
450 mm | 450 mm |
|
Max feeding paperboard size
|
1400 mm * 2800 mm | 1400 mm * 2600 mm |
|
Max effective printing size
|
1400 mm * 2600 mm | 1400 mm * 2400 mm |
|
Min process paperboard size
|
450 mm * 550 mm | 450 mm * 550 mm |
|
Thickness of the printing plank
|
7.2 mm | 7.2 mm |
|
design speed
|
80pieces / min | 80pieces / min |
|
economical speed
|
60 pieces / min | 60 pieces / min |
|
Precision of the printing
|
±0. 75 mm | ±0. 75 mm |
|
Printing rolling axle circle-oriented regulating
|
360 degree revolving | 360 degree revolving |
|
Printing rolling axle-oriented regulating
|
+/-10mm | +/-10mm |
