Product Details:
|
| Voltage: | 220V/380V,Customer's Demand | Packaging Material: | Pe Film Or Pack It According To Customers Special Request . |
|---|---|---|---|
| Type: | Thin Blade Slitter Scorer | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Overseas Service Center Available |
| Warranty: | 1 Year And Long Life Technical Support | Name: | Thin Blade Slitter Scorer Cutting Creasing Machine |
| Function: | Slitter The Corrugated Cardboards | Keywords: | Thin Blade Slitter Scorer Machine |
| Condition: | New | Application: | Machinery & Hardware |
| Color: | Customer's Request,white Gray And Yellow | Machine Type: | Thin Blade Slitter Scorer Machine |
| High Light: | 2900mm corrugated slitter,corrugated slitter cutting creasing machine,cardboard thin blade slitter scorer |
||

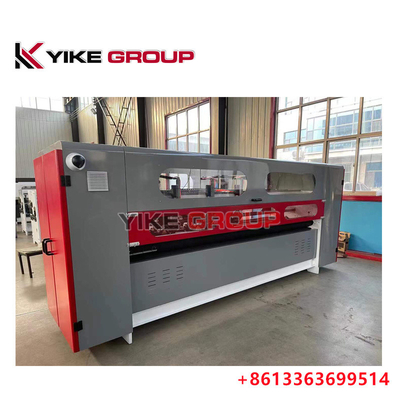

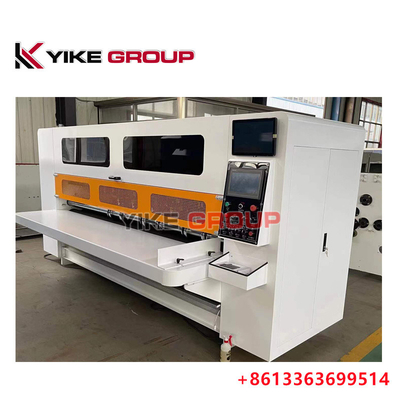

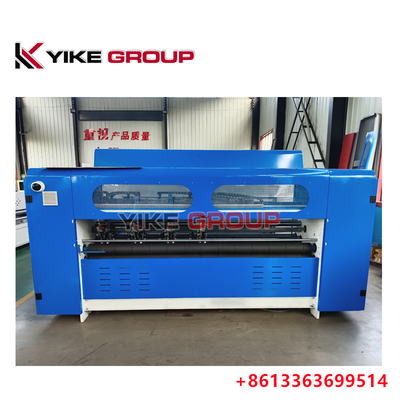

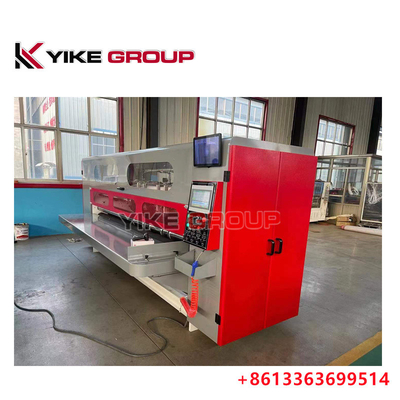

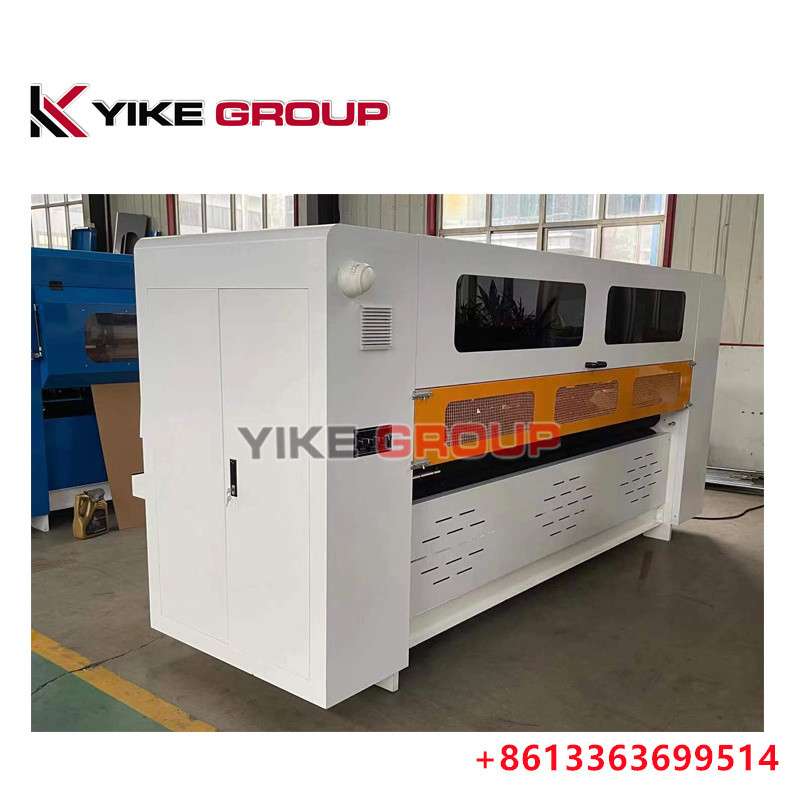

Corrugated Cardboard Thin Blade Slitting Cutting Creasing Machine
Human-machine interface —PLC control. The system for robot operating system is more humanized, simple in structure, easy to maintain.
1. Manual/auto feeder is available
2. Pre pressing roller, slitting blade, and scorer holder are auto-adjusted
3. Grinding knife is auto/manual
4. Cardboard thickness and press power are auto-adjusted
5. Jog for fine-adjusted
6. Auto counter
7. Slitting and press line precision ±0.5mm
8. Human-machine interface—PLC control, cutter paper-thin blade change order use stand-alone stepper motor control, auto change order speed 3-8S, error precision±0.5 mm.
9. Operation humanized, no technical content, worker use operation use easy.

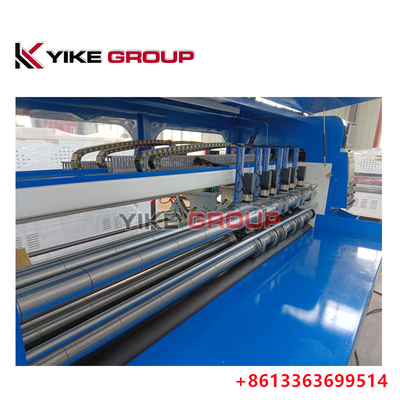

10. Slitting part: Adopt high-quality tungsten steel thin blade, sharp and long work-life, slice tidier,non-pressing and non-burr.
11. Pre pressing roller, slitting blade, and scorer holder are auto lifting
12. This machine can memory 999 group orders, don’t need a stopped machine that can change order and manual change order.
| Model | YK-CNC-2750 | YK-CNC-3100 | ||||
| No.s of slitting scoring |
4/6 5/8 6/10
|
|||||
| Max. production speed | 180m/min | 180m/min | 180m/min | 180m/min | ||
| Max. feeding width | 2250mm | The Max. slitting between the two blades:2250mm | 2750mm | The Max. slitting between the two blades:2750mm | ||
| Max.slitting width | 2500mm | 2900mm | ||||
| Min.slitting width | 200mm | 200mm | ||||
| Min. feeding length | 400mm | 400mm | ||||
| Min. scoring distance | 40*135mm | 40*135mm | ||||
| Gap adjustment | Auto | Auto | ||||
| Main motor power | 15kw | 20kw | ||||
| Dimensions L*W*H | 1900*3450*1500mm | 1900*3950*1500mm | ||||
| Weigh | 4780kg | 4980kg | ||||
| PRICE AND PAYMENT | ||||||
| FOB TIANJIN PRICE | USD ONLY SLITTER MACHINE | |||||
| PAYMENT | 30%TT,70%TT BEFORE SHIPPING | |||||
| DELIVERY TIME | 40-50DAYS AFTER PAYMENT | |||||
| PRICE VALIDITY | 30DAYS | |||||
