Product Details:
|
Voltage: | 220V/380V,Customer's Demand | Packaging Material: | Pe Film Or Pack It According To Customers Special Request . |
---|---|---|---|
Type: | Thin Blade Slitter Scorer | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Overseas Service Center Available |
Warranty: | 1 Year And Long Life Technical Support | Name: | Thin Blade Slitter Scorer Cutting Creasing Machine |
Function: | Slitter The Corrugated Cardboards | Keywords: | Thin Blade Slitter Scorer Machine |
Condition: | New | Application: | Machinery & Hardware |
Color: | Customer's Request,white Gray And Yellow | Machine Type: | Thin Blade Slitter Scorer Machine |
Highlight: | cnc thin blade slitter scorer machine,thin blade slitter scorer machine creaser,servo motor thin blade slitter scorer |

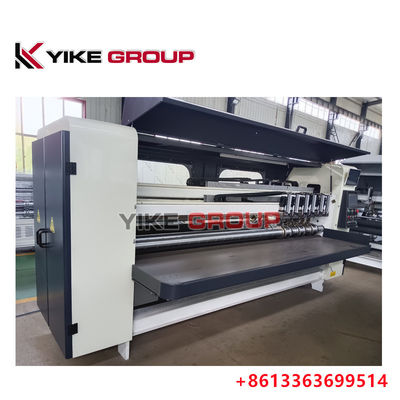

Automatic Computer CNC Servo Motor Thin Blade Slitter Scorer Creaser Machine For Cardboard
Human-machine interface —PLC control. The system for robot operating system is more humanized, simple in structure, easy to maintain.
1. Manual/auto feeder is available
2. Pre pressing roller, slitting blade, and scorer holder are auto-adjusted
3. Grinding knife is auto/manual
4. Cardboard thickness and press power are auto-adjusted
5. Jog for fine-adjusted
6. Auto counter
7. Slitting and press line precision ±0.5mm
8. Human-machine interface—PLC control, cutter paper-thin blade change order use stand-alone stepper motor control, auto change order speed 3-8S, error precision±0.5 mm.
9. Operation humanized, no technical content, worker use operation use easy.
10. Slitting part: Adopt high-quality tungsten steel thin blade, sharp and long work-life, slice tidier,non-pressing and non-burr.
11. Pre pressing roller, slitting blade, and scorer holder are auto lifting
12. This machine can memory 999 group orders, don’t need a stopped machine that can change order and manual change order.
Model | YK-CNC-2750 | YK-CNC-3100 | ||||
No.s of slitting scoring |
4/6 5/8 6/10
|
|||||
Max. production speed | 180m/min | 180m/min | 180m/min | 180m/min | ||
Max. feeding width | 2250mm | The Max. slitting between the two blades:2250mm | 2750mm | The Max. slitting between the two blades:2750mm | ||
Max.slitting width | 2500mm | 2900mm | ||||
Min.slitting width | 200mm | 200mm | ||||
Min. feeding length | 400mm | 400mm | ||||
Min. scoring distance | 40*135mm | 40*135mm | ||||
Gap adjustment | Auto | Auto | ||||
Main motor power | 15kw | 20kw | ||||
Dimensions L*W*H | 1900*3450*1500mm | 1900*3950*1500mm | ||||
Weigh | 4780kg | 4980kg | ||||
PRICE AND PAYMENT | ||||||
FOB TIANJIN PRICE | USD ONLY SLITTER MACHINE | |||||
PAYMENT | 30%TT,70%TT BEFORE SHIPPING | |||||
DELIVERY TIME | 40-50DAYS AFTER PAYMENT | |||||
PRICE VALIDITY | 30DAYS |
