Product Details:
|
| Type: | Automactic Carton Box Printing Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Whole Life,Avaliable,Online Support |
|---|---|---|---|
| Automatic Grade: | Automatic | Application: | Carton Box Making Machine |
| Name: | Flexo Ink Corrugated Carton Flexo Printing Machine,Flexo Printer Slotter Die-Cutter Stacker Carton Box Making Machine | Certification: | CE ISO SGS |
| Condition: | New | Driven Type: | Electric |
| High Light: | flexo printing and die cutting machine,flexo printer slotter die cutter |
||

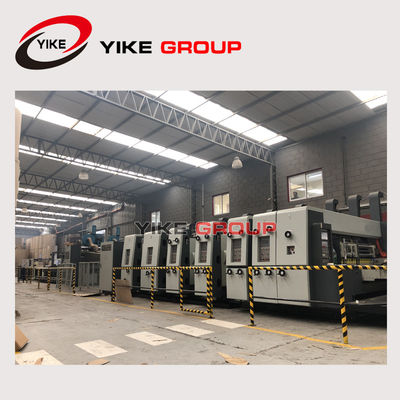

High Speed Flexo Printer Slotter with Fold Gluer Inline
Lead-edge Feeding System
1. Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).
2. 7.5KW high pressure centrifugal fans, according to the cardboard
warping degree of frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
3. Left and right side baffle position electrically adjustable,
screw-driven.and can remember by computer.
Printing Roller
1. With printing plate, outer diameter φ450mm
2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
|
YKL-1424 FFG/ Casemaker |
|
|
Wall board thickness |
50mm
|
|
Gear thickness
|
50mm
|
|
Max Machine Speed (pcs/min)
|
200
|
|
Max. Feeding Size (mm)
|
1400×2400
|
|
Max printing/working size (mm)
|
1400x2400
|
|
Min. Feeding Size (mm)
|
400x900
|
|
Skip-feeding Size (mm)
|
1600×2400
|
|
Standard Plate Thickness (mm)
|
7.2mm |
|
Suit corrugated thickness
|
2-11mm
|
|
Max slotter depth (mm)
|
300 |
|
Print precision (mm)
|
±0.3 |
|
Slot precision (mm)
|
±1.0 |
|
Die cut precision (mm)
|
±1.0 |
|
MODEL NUMBER
|
YKL-1424 |
| LEAD EDGE FEEDER |
1 UNIT
|
| FLEXO PRINTER |
4 UNIT
|
| COMPUTER SLOTTER |
1 UNIT
|
| ROTARY DIE CUTTER |
1 UNIT
|
| FOLDER GLUER IN LINE |
1 UNIT
|
| PP STRAPPER Option |
1 UNIT
|
|
PAYMENT
|
30% T/T IN ADVANCE, BALANCE PAID BEFORE SHIPMENT |
| DELIVERY TIME |
WITHIN 90 DAYS AFTER GET 30% DEPOSIT
|
|
PRICE VALID
|
30 DAYS |
※Gluer line Unit
1. Maxmum speed: 200m/min
2. Mechanical work speed: 150m/min.
3. Vacuum transfer
4. Fully automatic adjustment
5. Control way: PLC program control.
Folding part:
6.The upper and down conveyor clamping the cardboard to move forward,the cardboard inlet interval, as well as upper and down conveyor interval all adjusted electrically.
7. Paper entering section adopts spring pressure wheel to load cardboard, limit device is equipped in the pressure wheel, and the interval between the wheel and down conveyor can be adjusted independently, make sure high paper feeding precision.
Gluing part
1.Gluing box was used elastic fixed, structure is simple and reliable, easy cleaning.
2.Gluing wheel was used stainless steel, make sure using long-term.
