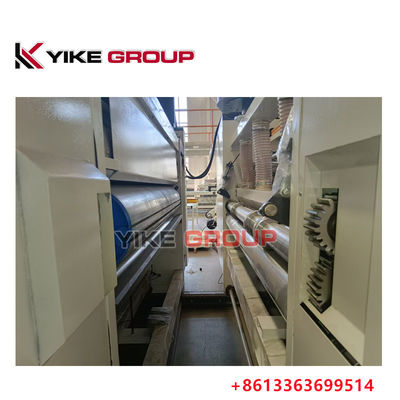

YIKE GROUP Corrugated Carton Box Lead Edge 2 Color Printer Die Cutter Machine

YIKE GROUP Corrugated Carton Box Lead Edge 2 Color Printer Slotter Die Cutter Machine

 Product Description

1. Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing

rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit

cardboard smoothly.

2. The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.

3. The machine is launched by pressing the start button with two hands, which ensure the operator's safety.

4. The side plate is electrical adjusted automatically while the backstop is adjusted manually.

5. Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.

6. The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber,

which is also good at avoiding crushing the cardboard.

7. The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and

chrome plated.

1. Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic

2. 7.5KW high-pressure centrifugal fans, according to the cardboard

warping degree of the frequency control pressure, to ensure warp

cardboard or thin cardboard high-speed accurate transmission.

3. Left and right side baffle position electrically adjustable,

screw-driven. and can remember by computer.

4.Front baffle adjust the position of the upper and lower intervals

synchronization by manual.

5. Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

6. Install 7” touch screen, could automatically display the

production quantity, production speed, and set the production quantity and every operation

※Printer Unit

Printing Roller

1. With printing plate

2. High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

3. Roller horizontal direction and circumferential direction with datum line, convenient for align plate

4. Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

5. Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

※Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing, creasing, slotter
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise
