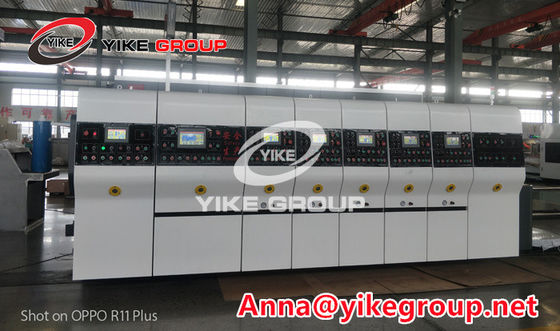

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making
Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making
Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making

Large Image :  Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE,ISO
Model Number: YKHD-1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PLASTIC FILM WRAP
Delivery Time: 60 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3Sets /per Month

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making

Description
Type: Automactic Carton Box Printing Machine,carton Box Making Machine,Carton Printer Slotter Die Cutter Machine,Other After-sales Service Provided: Engineers Available To Service Machinery Overseas,Whole Life,Avaliable,Online Support
Automatic Grade: Automatic Application: Carton Box Making Machine
Speed: 60-150 Sheets/min Name: 4 Color Chain Feed Corrugated Carton Box Flexo Printer Slotter Machine
Certification: CE ISO SGS Condition: New
High Light:

printing slotting die cutting machine

,

flexo printer slotter die cutter

CHINA YIKE GROUP CO.,LTD

Web: www.yikegroup.net

Email: Anna@yikegroup.net

WhatsApp: +86 13363699514



Low Noise Automatic Flexo Printer Slotter Machine For Carton Box Making



Detailed Product Description

Type:: Box Printing Machine Color:: Customer's Request
Max Machine Speed (pcs/min):: 200 Other Name: Flexo Printer Slotter Machine
Driven Type:: Electric Keywords:: Flexo Printing Machine
After-sales Service Provided:: Engineers Available To Service Machinery Overseas Partners: Italy, UK, Poland, UAE, Africa, Mexico, Brazil And So On



1. Feeder Unit



Lead-edge Feeding System

ü Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).

ü 7.5KW high pressure centrifugal fans, according to the cardboard

warping degree of frequency control pressure, to ensure warp

cardboard or thin cardboard high-speed accurate transmission.

ü Left and right side baffle position electrically adjustable,

screw-driven.and can remember by computer.

ü Front baffle adjust the position of the upper and lower intervals

synchronization by manual.

ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

ü Install 7” touch screen, could automatically display the

production quantity, production speed, and set the production quantity and every operating.

ü Slotting part is equipped with the interlock switch, to achieve the

emergency stop, stop feeding or feeding.



Machine Separation & Combination

ü Button switches electrically control the separation and combination

of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.

ü Air pressure interlocks, lock securely, conveniently and accurately.

ü Machine clutch drive shaft is equipped with overload protection device.

ü Active self-locking function: if unit is not completely locking state,

the host cannot start, to ensure the safety of machine and operator;

while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 0

2. Printer Unit



Printing Roller

ü With printing plate, outer diameter φ450mm

ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate

ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

ü Electric 360° adjust printing roller, automatic digital display adjustment,remember store digital.

ü Installed with foot switch to control plate roller reversing, convenient change plate

ü Auto-zero function,order memory.

ü Printing roller plate-change and fix-plate function.

ü Printing roll axial is adjusted left and right by manual,maximum movement left and right 10mm,auto-zero instruction.

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 1

3.Drying unit



►Vacuum adsorption ceramic wheels transfer, more rows ceramic wheels dislocation array to strengthen cardboard transmission stability.

►The bellows damper can adjust by automatic according to the cardboard size.

►Drying system with imported PLC program automatic controlling, man-machine dialog control and display.

►Automatic temperature control, fault alarm protection, automatic detection alarm, fault status display.

►Drying system with the host control starting and closing double protection, completely solve the cardboard directly irradiation time heat and burning this question when the machine stop.

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 2



Slotting Unit



►Single shaft five blades slotting ,an internal gear adjusts the height

of the carton box and prevents the lubricating oil from spilling or

leaking onto the cardboard

►The first pre-creasing,the cardboard not be damaged after prepressing.

►Upper creasing roll covered by anvil ring,so cardboard is not damaged

easily.

►Slotting bosses move along liner lead rails and are driven by lead

screws for flexible and precise movement.

►Upper boss and lower boss are coupled to keep the two knives aligned

while moving,which is helpful to prolong service life.

►Slotting register and height of carton box are digital controlled by

motor and PLC.

Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 3



Die Cutting Unit



►Side to side oscillation of anvil drum(45mm)

►The die drum’s transverse movement can prolong the service life of

anvil cover.

►Die-cutting register is digitally controlled by motor and PLC

►The die-cut cylinder lateral register is digitally controlled by motor and

PLC,rang about±10mm

►Motorized caliper adjustment between anvil roll and die drum.

►Auto speed compensation system controlled by the independent motor

can achieve the superb die accuracy.

►Anvil rubber roller speed compensation adopted independent motor for

driving to control the rubber roller speed,the compensation scope is

±3mm.



Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 4



Voccum Suction Flexo Printer Slotter Die Cutter Machine For Carton Box Making 5
