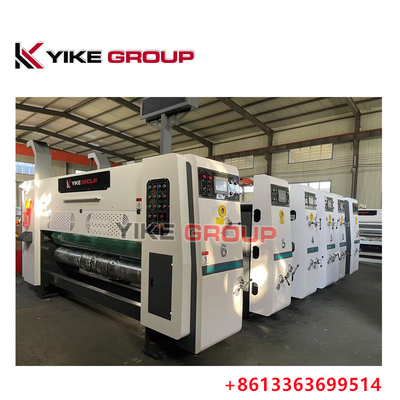

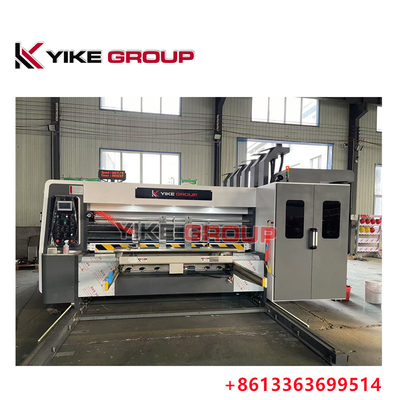

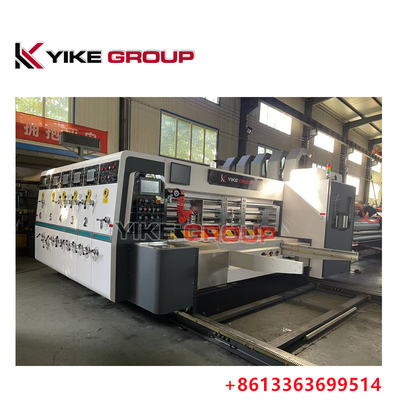

Yk-1220 Lead Edge Feeder Printer Electric Slotter Die Cutter Machine For Carton Box

Yk-1424 Lead Edge Feeder Printer Electric Slotter Die Cutter Machine For Carton Box

General Features:

►Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

►Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.

►Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .

※LEAD EDGE FEEDER UINT

• Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
• The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• The side plate is electrical adjusted automatically while the backstop is adjusted manually.
• Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
• The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
• The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
• The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
• The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
• Automatic counter for recording the cardboard supply quantity to show the output.
•

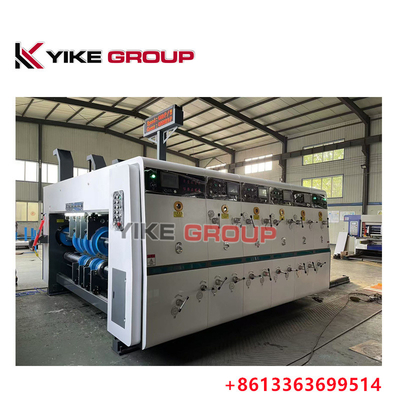

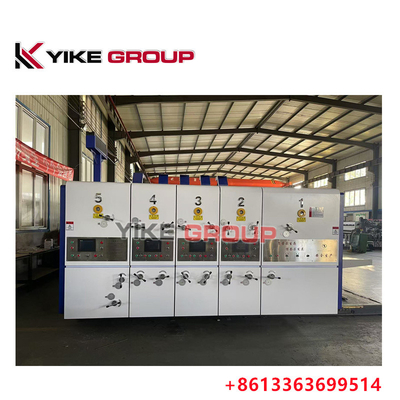

※Printer Unit

• Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
• Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
• Each printing unit can be electrical separation. Printing Slotting Machine
• High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
• Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.
• Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
• The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine
• Phase institutions is 360-degree Electric adjustment, ergonomic design.

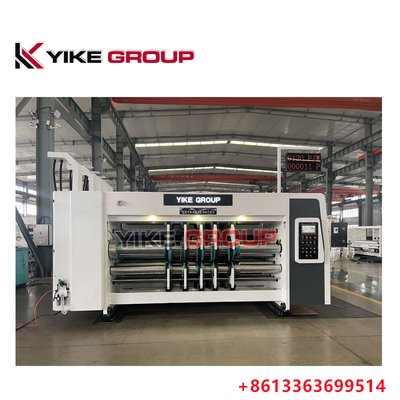

Slotting Unit

► Motor adjustment

1.Adopt 4 motor and 1 screw axe

2. Electric adjustment slotter and creaser

3. Manual lock and open screw on bottom shaft

► Slotted Knife Seat Traverse Adjustment Mechanism

1. The diameter of the upper and lower shafts of the slotted knife is φ155mm. After two grinding processes, the surface is plated with hard chrome and the movement is stable.

2. Groove width 7mm, made by professional manufacturers.

3. Alloy tool steel After heat treatment, grinding tooth slotted knife, hardness and toughness are superb.

4. Alloy steel material after heat treatment, grinding trimming knife, knife sharp, high precision.

5.The position of the rolling wheel and slotted knife holder is traversed and electric synchronous control is adopted.

6. The height of slot box adopts electric adjustment, which is convenient and quick.

7. Using a unique elastic de-icing device, the use of low cost, long life.

► Slotted Phase Adjustment Mechanism.

1The 360 degree positive and negative adjustment of planetary gears makes the adjustment more convenient, faster and more accurate.

2 Before and after grooving, the knife phase adopts double control of touch screen and electric button, and electric digital 360 degree adjustment (stop, dynamic can be adjusted).

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,
• The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
