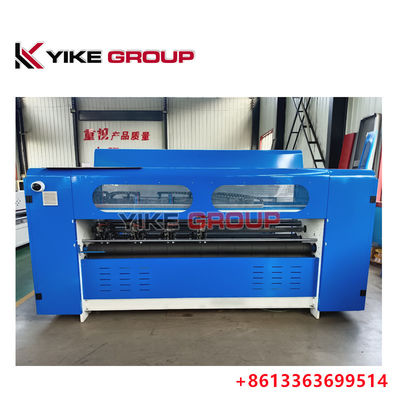

Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder

Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder
Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder
Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder

Large Image :  Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE,ISO
Model Number: YK-3000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Thin Blade Slitter Scorer Machine
Price: Negotiation
Packaging Details: Wrapped With Plastic Film
Delivery Time: Within 1 Month Upon Receipt Payment
Payment Terms: L/C, T/T
Supply Ability: 30 Sets Per Month
Contact Now

Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder

Description
Application: Thin Blade Slitter Scorer Machine Work Width: 3000mm
Blade Qty: 4 / 5 / 6 Blades Scorer Qty: 6 / 8 / 12 Scorers
Min. Paper Length: 260mm Power: 3KW
Highlight:

corrugated slitter machine

,

slitting cutting machine

Offline Thin Blade Slitter Scorer With Manual Type Paper Feeder, Blade By Electric



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 0





Function and Features

  • Grinding part: adopt manual type grinding , it could be grinding when working, improve work efficiency. Option: blade pneumatic grinding.
  • Double guide smooth shafts, operate stably; inlay PU ring seal, clean and dust-proof.
  • Slitting part: adopt high quality tungsten steel blade, sharp and long work-life, slice more tidy, non-pressing and non-burr.
  • Adopt 8 shafts design, two shafts in front and back of the slitter, can minimize the length of paperboard machining to 260mm.
  • 8 shafts with front-scoring feeding,back double rubber rollers for paper leading, running more steady.
  • Scoring part: adopt 5 points scoring, scoring distance in-phase adjust, blazonry and easy to bend the carton sheet.
  • Electric adjusted the space of slitter blade and auto pneumatic locking.

Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 1



Technical Parameters



TYPE YK-1800 YK-2000 YK-2500 YK-2700 YK-3000
Effective Width 1600mm 1800mm 2300mm 2500mm 2800mm
Total Power 3kw 4kw 5kw 5kw 5kw
Blade Size Ø105*190*1.2mm Ø105*190*1.2mm Ø105*190*1.2mm Ø105*190*1.2mm Ø105*190*1.2mm
Max. Slitting width 1600mm 1800mm 2300mm 2500mm 2800mm
Min. Slitting width 130mm 130mm 130kw 130kw 130mm
Min. Scoring width 30mm 30mm 30mm 30mm 30mm
Min. Paper length 260mm 260mm 260mm 260mm 260mm
Max. Paper thickness 12mm 12mm 12mm 12mm 12mm
Scorer Adjust Height 14mm 14mm 14mm 14mm 14mm
Dimensions L x W x H (mm) 2450*800*1700 2650*800*1700 3150*800*1700 3350*800*1700 3650*800*1700





Detailed photos



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 2



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 3



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 4



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 5



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 6



Offline Thin Blade Slitter Scorer Machine With Manual Type Paper Feeder 7
