Product Details:
|
| Name: | Flexo Printer Slotter Machine | Color: | 1-5 Color |
|---|---|---|---|
| Max Board Size: | 1200/2400 | Working Speed: | 250pcs/min |
| Usage: | Corrugated Cardboard Printing | Design Speed: | 200pcs/min |
| Highlight: | printing slotting die cutting machine,flexo printer slotter die cutter |
||

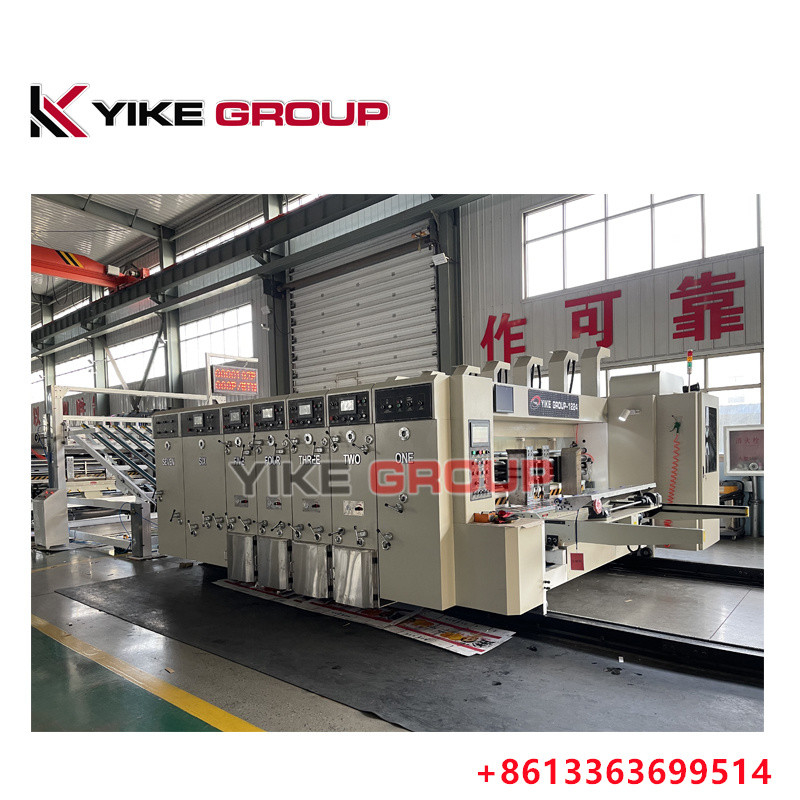

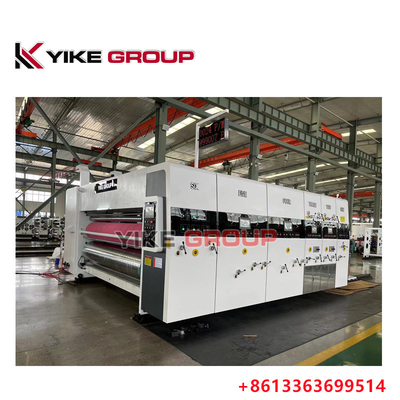

YIKE GROUP Automatic Flexo Printer Slotter Die cutter Machine 200pcs/min
|
Automatic Flexo Printer Slotter Die cutter Machine |
||
|
Max Machine Speed (pcs/min) |
250 |
|
|
Economic Working Speed (pcs/min) |
200-220 |
|
|
Max Feeding Size (mm) |
1200×2600 |
|
|
Max Printing Size (mm) |
1200×2400 |
|
|
Skip-feeding Size (mm) |
1450×2600 |
|
|
Min Feeding Height (mm) |
250 |
|
|
Plate Thickness (mm) |
7.2 |
|
|
Suitable Cardboard Thickness (mm) |
2 - 11 |
|
|
Min Slotting Distance (mm) |
Negative Knife |
350×100×350×100 |

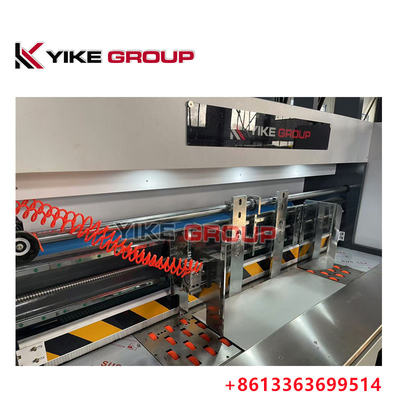

Feeding Unit
● Servo motor independent drive, with Japan's Shimpo feeding speed reducer, high precision, no wear.
● The servo motor drives the roller type front feed.
● Can be a continuous or interval feeding.
● The installation of antistatic device.
● Eliminate dust because of electrostatic effects on the dust particles and not easy to brush.

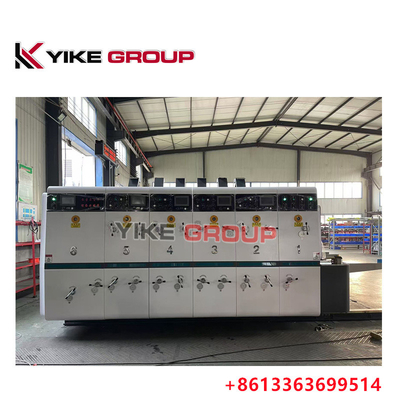

Printing Unit
● The independent unit are dual servo motor drive, gearless cumulative error, printing, embossing, to achieve complete synchronization,
high clear image.
● The vacuum wheel transfer printing, can guarantee the warp sheet, cardboard printing.
● The roll correction device can quickly and easily produce tilt printed version of the correct hang.
● The precision control system can accurately adjust the ink imprinting gas, ink gap.
● The printing precision is ±0.15mm.
● Closed type double balde system, with ceramic anilox roll imported ink to ink device, can significantly improve the monochrome and multicolor printing dot and trapping effect.
Dryer Unit of Automatic Flexo Printer Slotter Die cutter Machine
● one unit drying unit
● Vacuum adsorption ceramic wheels transfer,more rows ceramic wheels dislocation array to strengthen cardboard transmission stability
● using infrared irradiating combined drying system for fast color fixing,guarantee the drying of ink between colors,avoiding
smudging.can directly follow the light oil,slotting,die cutting process.
● vacuum suctioned drying unit;independent servo drive(optional)
● entire process roller-type vacuum suction transport system.
● heating range can be chosen according to the cardboard size,the
● bellows damper can adjust by automatic according to the cardboard
● size:small,medium,large
● lift controlled transport table
● customers can choose three drying system according to their configuration:hot air or infrared or ultraviolet light.
● the drying system by the import PLC program automatic controlling,Man-machine dialog control and display
● Automatic temperature control, fault alarm protection, automatic detection alarm, fault status display
● Drying system with the host control starting and closing double protection, completely solve the cardboard directly irradiation time heat and burning this question when the machine stop.

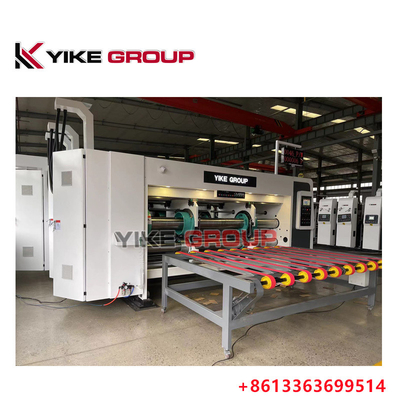

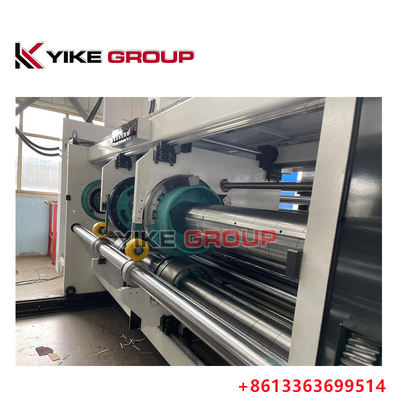

Die Cutter Unit
● Independent servo motor drive
● All clearance adjustment are electric adjustable, touch screen display adjustment. The man-machine interface set automatic positioning.
● The selection of high quality steel precision manufacturing, surface grinding, hard chromium plating, durable.
● The electric adjustment and the knife mold roll gap.
