Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Certification
China CHINA YIKE GROUP CO.,LTD certification
China CHINA YIKE GROUP CO.,LTD certification
Customer Reviews
YIKE GROUP Is the Professional Manufactuer for the Carton Box Machinery in China, we are very happy to choose so professional partner. Hope we can expand more business with each other.

—— Bal-UK

I'm Online Chat Now

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved
Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved
Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Large Image :  Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1224
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Flexo Printer Slotter Machine
Price: Negotiation
Packaging Details: Flexo Printer Machine Packages By Plastic Film, Container
Delivery Time: 3 Months For Chain Feeder Printer Slotter Machine
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Per Month

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Description
Name: Chaine Feeder Flexo Printer Slotter Machine Color: Two Color
Slotter: Combined Slotter Automatic Grade: Semi-Auto
Usage: Making Corrugated Parperboard Body Thkckness: 50mm
Highlight:

printing slotting die cutting machine

,

flexo printing and die cutting machine


China YIKE GROUP Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 0

I. Main Features

  1. Printer slotter phase: Electric number digital adjust
  2. Auto ink circulation system
  3. Combined slotting creasing slitting knives which is easy to change order.
  4. The gear of the machine: Auto lubrication with oil
  5. Machine body thickness: 50mm
  6. Automatic separated, pneumatic lock up.

II. Main Units

  • Chain Feed Table Unit  -- One Unit
  1. Semi-Automatic chain feeder
  2. Ateral positioning to guarantee accurate feed

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 1

  1. Automatic counting
  • Printer Unit -- Two Unit
  1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
  2. Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
  3. Each printing unit can be electrical separation. Printing Slotting Machine
  4. High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
  5. Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.
  6. Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
  7. The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine
  8. Phase institutions is 360-degree Electric adjustment, ergonomic design.

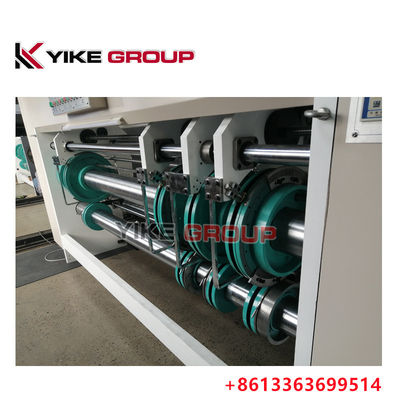

  • Slotter Unit -- One Unit
  1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(Stacking Unit)
  2. Phase institutions is 360-degree Electric adjustment, ergonomic design.
  3. Four-blade sync adjustment for carton height.
  4. Serrated slotted cutter. Thickness: 7mm. Cutting angle blade width: 40mm.

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 2

III. Specification


ModelYK-1424
Roller Diameter450mm
Speed pcs/min0-60
Max Board Size (mm)1400x2400
Max Print Area (mm)1400x2200
Print Plate Thickness5-9mm
Overprint Error≤ ±: 0.5 mm
Cardboard3/5/7 layers


IV. Option Unit

  1. Automatic Chain Feeding
  2. Die Cutter Unit
  3. Stacker
  4. Color Option 1-5 Colors

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 3

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 4

YIKE GROUP other type printer slotter die cutter machine as follow

Jumbo Type Chain Feeder Flexo Printing Slotting Machine For Corrugated Carton ISO Approved 5
