|Type:||Automactic Carton Box Printing Machine||Automatic Grade:||Full-Automatic|
|Application:||Carton Box Making Machine||Voltage:||380V/3 Phaze /50Hz,Customized|
|Warranty:||1 Year||Speed:||150PCS/min Pr Customzied|
|Name:||Touch Screen Flexo Printer Slotter Die Cutter Stacker Machine For Corrugated||Certification:||CE ISO SGS|
|Usage:||For Carton Print Slotting And Die Cutting||Keyword:||Flexo Printer Slotter|
touch screen flexo printer slotter,
corrugated flexo printer slotter,
touch screen flexo printer slotter machine
Printer Slotter Die Cutter Machine
Main Technical Parameters

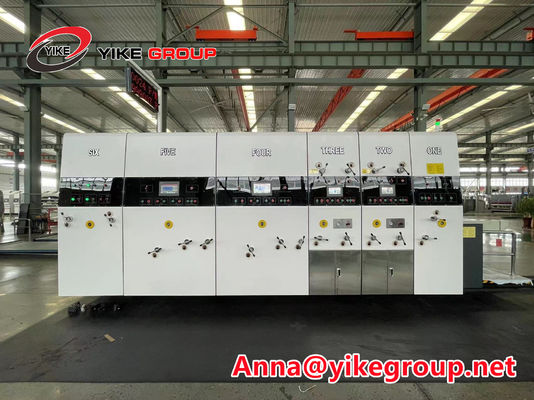

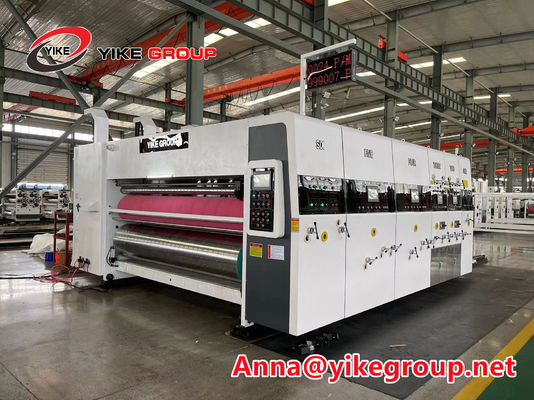

|Touch Screen Flexo Printer Slotter Die Cutter Stacker Machine For Corrugated|
|Wall board thickness||50 mm|
|Max Machine Speed (pcs/min)||200|
|Economic Working Speed (pcs/min)||180|
|Max. Feeding Size (mm)||1200×2400|
|Min. Feeding Size (mm)||350x600|
|Max. Printing Size (mm)||1200X2200|
|Standard Plate Thickness (mm)||3.9|
|Max slotter depth (mm)||300|
|Print precision (mm)||±0.3|
|Slot precision (mm)||±1.0|
|Suitable Cardboard Thickness (mm)||2 - 11|
ü Can measure the corrugated cardboard thickness, can adjustment feeding gap automatic
ü 7.5KW high-pressure centrifugal fans, according to the cardboard
warping degree of the frequency control pressure, to ensure warp
cardboard or thin cardboard high-speed accurate transmission.
ü Left and right side baffle position electrically adjustable,
screw-driven. and can remember by computer.
ü Front baffle adjust the position of the upper and lower intervals
synchronization by manual.
ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
ü Install 7” touch screen, could automatically display the
production quantity, production speed, and set the production quantity and every operation.
ü Slotting part is equipped with an interlock switch, to achieve the
emergency stop, stop feeding or feeding.
ü Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.
Feeding Roller: Feeding Roller
ü Upper feeding roll adopts outer diameter φ156mm rubber roller,
elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.
ü Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.
ü According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm
ü With printing plate
ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate
ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
ü Installed with foot switch to control plate roller reversing, convenient change plate
ü Auto-zero function, order memory.
ü Printing roller plate-change and fix-plate function.
ü Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.
