4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine

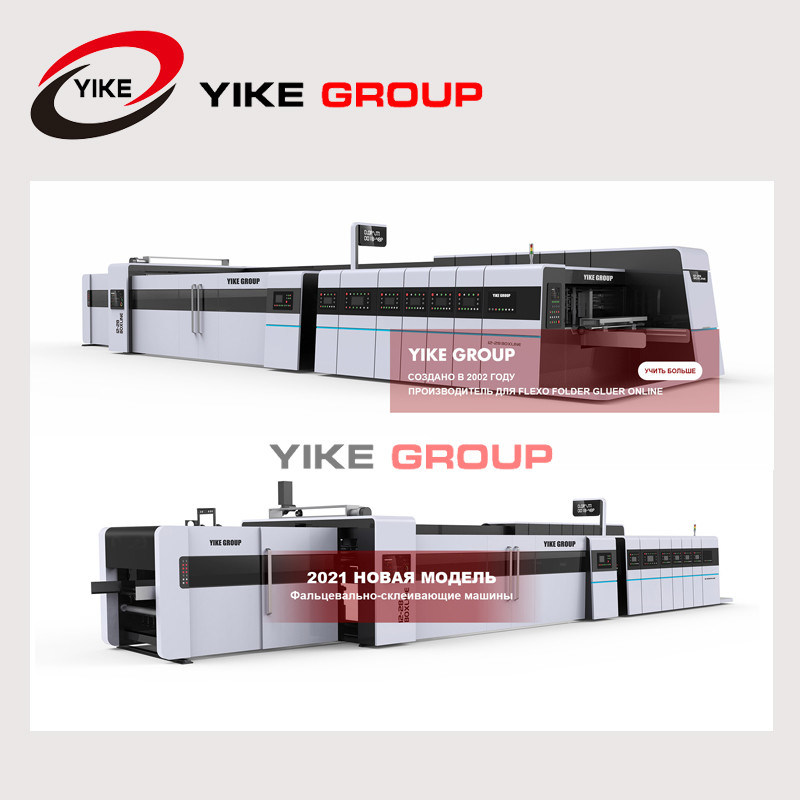

Large Image : 4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine

Product Details:

Place of Origin:	China
Brand Name:	YIKE GROUP
Certification:	CE,ISO
Model Number:	YKL-1224

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set Flexo Folder Gluer
Packaging Details:	Flexo Folder Gluer Packaged by Plastic Film
Delivery Time:	3 Months Upon Payment
Payment Terms:	L/C, T/T
Supply Ability:	3 Sets Flexo Folder Gluer Per Month

Contact Now

4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine

Description

Name:	Casemaker / Flexo Printer Slotter Machine	Color:	1-6
Voltage:	380V/220V/440V	Thickness Of Printing Plate:	7.2mm
Max Board Size:	1200x2400mm	Skip Feeding:	Yes
Feeder:	Automatic	Condition:	New
High Light:	4 colour flexo folder gluer machine , 1200x2400mm flexo folder gluer machine , automatic flexo folder gluer machine

4 Colors Flexo Folder Gluer Flexo Printer Slotter Die-cutter Stacker Machine YIKE GROUP

1. Main Features:

This machine is designed and made to high quality and safety standard,with the advantages of high speed, auto control and quick order shift.
Auto high quality materials and parts.
Well hardened and ground transmission gears, hardness more than 60(HRC).
Vacuum transfer system used in all printing sections.
YIKE GROUP FFG Flexo printer slotter die cutter with folder gluer online

4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine 0

2. Specification:

Data Model	900×2000	900×2400	1200×2000	1200×2400
Max. mechanic speed(pcs/min)	250	250	250	250
Max. feeding size(mm)	850×2000	850×2400	1180×2000	1180×2400
Min. feeding size(mm)	300×650	300×650	350×750	350×750
Skip feeding(mm)	1100×2000	1100×2400	1500×2400	1500×2400
Max. printing area(mm)	800×2000	800×2400	1150×2400	1150×2400
Max. thickness of board(mm)	7.2	7.2	7.2	7.2
Min.slotting space(mm) slotting type L(mm)	240×80×240×80	240×80×240×80	250×90×250×90	250×90×250×90
Max. slot depth(mm)	250	250	320	320
Max. thickness of board(mm)	12	12	12	12
Dimension(L×W×H)(mm)	14374×5770×3200 15674×5770×3200	14374×6170×3200 15674×6170×3200	15732×5870×3500 17232×5870×3500	15732×6270×3500 17232×6270×3500

4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine 1

4 Colour Automatic 1200x2400mm Flexo Folder Gluer Machine 2
