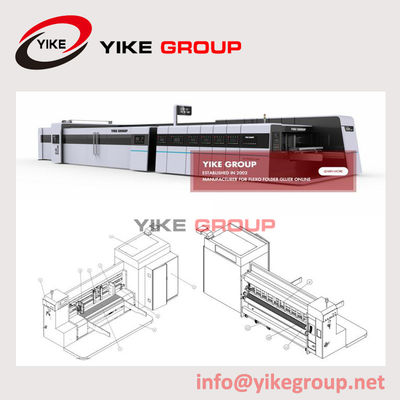

Corrugated Carton 1624 Flexo Folder Gluer Machine 200pcs/Min Speed

Corrugated Carton Flexo Folder Gluer For Casemaker, Boxmaker 200 Pcs / Min Speed

General Features

CE TECHNICAL: CE Not mean a certificate paper. It is the machine that should build according to European standard law.

• All cables have to be strong, and fireproof
• All encoders have to follow CE standards, use Germany brand or OMRON brand
• All electric parts, pneumatic parts have to follow CE standards, use SIEMENS and CE model
• All parts have to be safe. Emergency stop equipped on each unit
• The main motor has to stop once open the electric panel door

Main Technical Parameters

Price and payment

LEAD EDGE Feeder Unit

Lead-edge Feeding System

ü Can measure the corrugated cardboard thickness, can adjust feeding gap automatic

ü 7.5KW high-pressure centrifugal fans, according to the cardboard warping degree of the frequency control pressure, to ensure warp cardboard or thin cardboard high-speed accurate transmission.

ü Left and right side baffle position electrically adjustable,screw-driven. and can remember my computer.

ü Front baffle adjust the position of the upper and lower intervals synchronization manual.

ü Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.

Printer Unit

Printing Roller

ü With printing plate, outer diameter φ408mm

ü High-quality steel production, surface ground, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

ü Roller horizontal direction and circumferential direction with datum line, convenient for aligning the plate

ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

ü Installed with a footswitch to control plate roller reversing, convenient change plate

Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing line, creasing line, slotter line
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise
• Slotting phase and box height, computer and electric digital control
• Preload, creasing gap adjustment adopt computer and electric digital control

Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about the horizontal structure
• Die-cutter phase, computer, and electric digital control
• Horizontal phase, computer, and electric digital control range ±5mm
• Rubber roller and die roller gap use a computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,

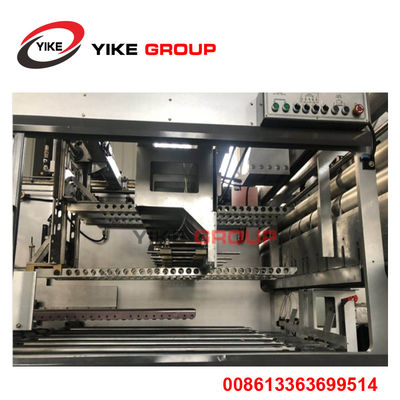

Gluer line Unit

• The gluing machine adopts high-quality steel welding carefully processed and assembled
• The gluing machine is used by linkage the die-cutting unit or slotting unit of printing machine, the electrical control system is communication with printing machine, When the printing machine running, the gluing machine also running. they are one system.
• Automatically provide the glue by a glue gun, circulation glue, never break glue, no work to add glue, save time and effort.
• Stainless steel coated glue wheels, corrosion resistance, wear resistance, uniform glue, glue saving, and use glue quantity is about one-third of the amount of artificial glue.
