Product Details:
|
| Type: | Rotary Slotter Machine For Corrugated Cardboard | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Whole Life,Online Support |
|---|---|---|---|
| Application: | Carton Box Making Machine | Speed: | 0 To 60pcs/min |
| Certification: | CE ISO SGS | Condition: | New |
| Packaging Type: | Plastic Film | Warranty: | 1 Year |
| High Light: | flexo printing and die cutting machine,flexo printer slotter die cutter |
||

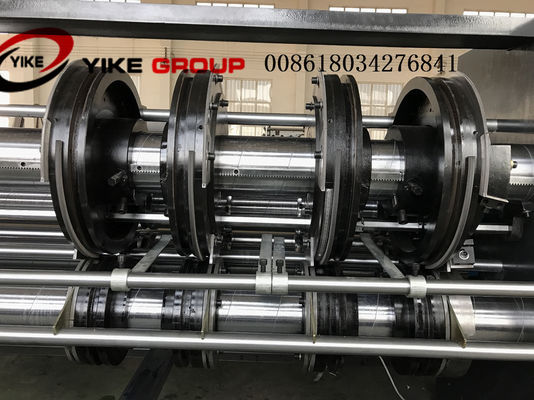

Rotary Slotter Machine For Corrugated Cardboard
Detailed Product Description
| Type:: | Die Cutter Machine | Name:: | Flexo Ink Corrugated Carton Flexo Printing Machine |
| Model:: | YK1425 | Maximum Speed:: | 60PCS/min |
| Notching Width:: | 45mm | Main Motor Power:: | 4.0kw |
| Weight:: | 4000kg | Maximum Groove: | 300mm |
| Minimum Feed Size:: | 650*350mm |
High-Quality Rotary Slotter Machine
Product Parameter :
|
Model
|
YK1425 |
|
Maximum speed
|
60PCS/min |
|
Notching width
|
45mm |
|
Slot width
|
7.5mm |
|
Maximum feed size
|
1400×2400mm |
|
Maximum groove depth
|
300mm |
|
Minimum feed size
|
650×350mm |
|
Main motor power
|
4.0kw |
|
Weight
|
4000kg |
Product details :
1. Feeding table adopts chain style manual feeding paper.Slot blade phase adopts 360°electronic position and
negative turn slightly adjust,blade axes treatedby rigidity chroming electroplate,and nicety grinding ,firmness
durable .Gear lubricate ,adopt spout out style cys. Reduce noise,prolong gear using life .
2. Transmit gear adopt no clearance coopperation ,debase gear dajust eorr. Gear adopt concentrate feed oil lubricate ,debase machine noise ,prolong the use-time.Slot reamer plate daopt four reamers synchronization,save exchange board time .360 degrees electric planet gear adjustment phase ,speedness and nicety.
3. Adopt hackle blade .Can matched stiletto equipment . Blades and crease lines Combined moved left and right.
