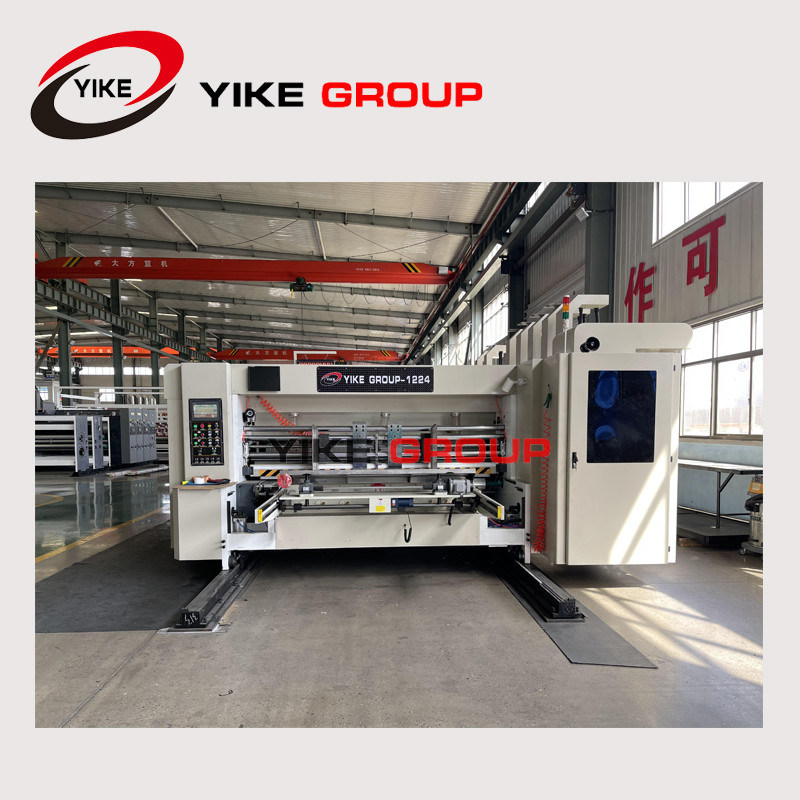

High Speed Flexo Printing Slotting Machine For Carton Box Making

High Speed Flexo Printing Slotting Machine For Carton Box Making

1. Lead-edge Feeding System

● Lead-edge suction feeding system, easy operation, high accuracy, (adopts lead feeder system).

● 7.5KW high pressure centrifugal fans, according to the cardboard

● Warping degree of frequency control pressure, to ensure warp

● Cardboard or thin cardboard high-speed accurate transmission.

2. Printer Unit

● Printing Roller

● With printing plate, outer diameter φ420mm

● High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

● Roller horizontal direction and circumferential direction with datum line, convenient for align plate

● Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

3. Slotting Unit (Option)

● Single-axle double-knife slotter, use Internal tooth structure adjutment the height of box, So that oil does not easily contaminated cartons

● The first pressure line round, after preloading cardboard not easily crush

● The above press round Urethane appearance package, will not damage the cardboard

● The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise

● Slotting phase and box height, computer and electric digital control

● Preload, creasing gap adjustment adopt computer and electric digital control

4. Die-Cutting Unit

● Rubber roller mechanical spiral commutation 40mm move about horizontal structure

● Die-cutter phase, computer and electric digital control

● Horizontal phase, computer and electric digital control, range ±5mm

● Rubber roller and die roller gap use computer and electric digital control
