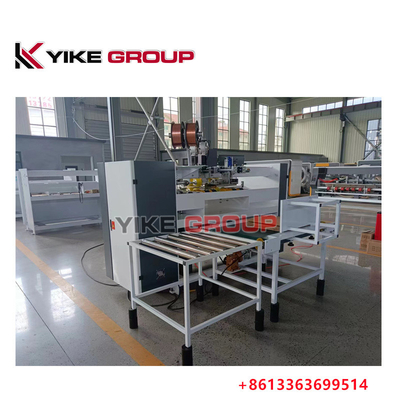

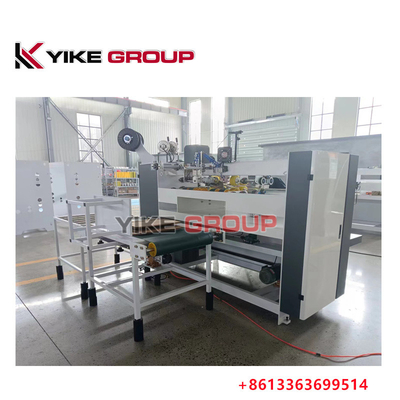

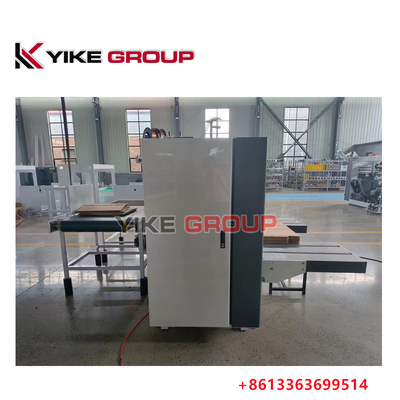

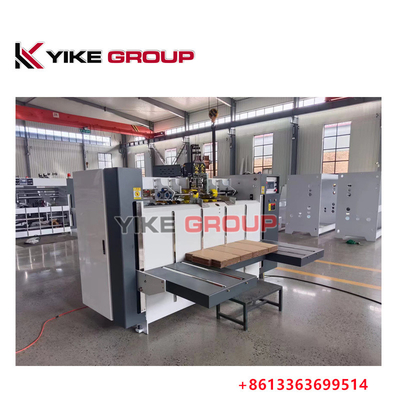

Max Cardbord Size 3200 Semi-Auto Carton box Stitcher Machine Single Piece From YIKE GROUP

Max Cardbord Size 3200 Semi-Auto Carton box Stitcher Machine Single Piece From YIKE GROUP

※General Features

Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.

Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.

Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers

※The function and characteristic

• Japan's Mitsubishi original imported dual servo drive with accurate accuracy and reduced mechanical transmission, which can effectively reduce the failure rate of the machine.
• Mitsubishi touch screen operation, the parameters (nail distance, number of nails, nail type, backgate) can be changed quickly and easily.
• The entire control system uses Japanese Mitsubishi PLC control system.
• The rear electric baffle is driven by a stepping motor, with accurate size and convenient size change.
• The full contactor in the control box adopts Mitsubishi brand.
• Optoelectronics and proximity switches use the Schneider brand.
• The bottom mold and blade are made of Japanese tungsten steel (wear-resistant).

• Mechanical speed: 600 nails / minute

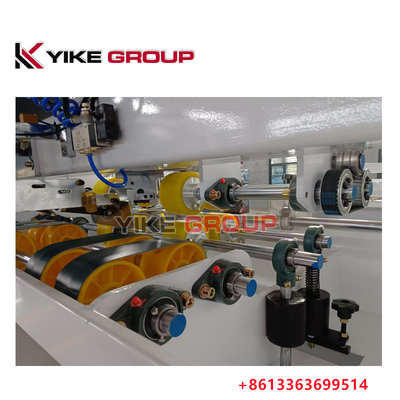

• Electric adjustment of the gap between the pressing rollers.
• Effective height of table lifting: 900mm.
• Machine size: host 2.8x1.7x2.2 meters.
• Machine weight: 1.5T.
• The protection function of the electrical isolation transformer of the whole machine;
• Automatic wire feeding system, 20KG flat wire, save time.
