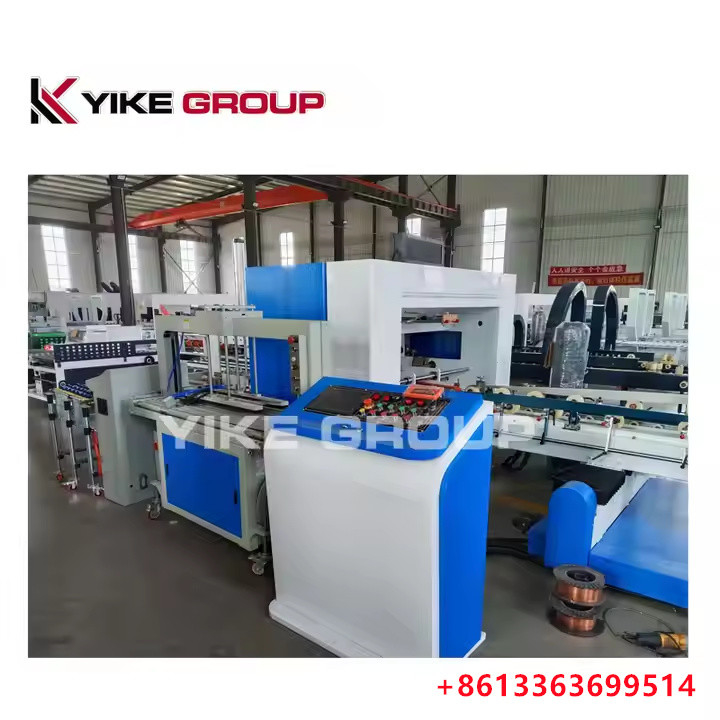

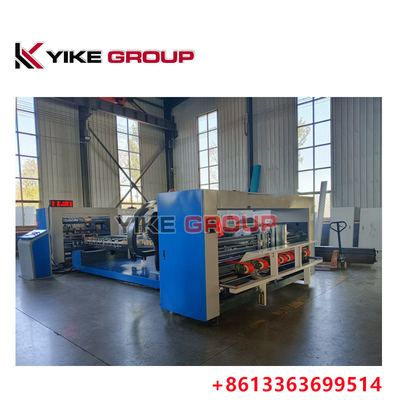

YIKE GROUP One-Click Order Computer Change Automatic Folding Gluing Machine

YIKE GROUP One-Click Order Computer Change Automatic Folding Gluing Machine

Machine features

Supplementary gluing machine consists of three parts: vacuum paper feeding part, gluing and folding part and counting and output part. Digital display adjustment box computer amplitude modulation, dual frequency conversion synchronization is not possible, with fast, reliable and accurate supplementary operation mode. Automatic paper feeding, automatic gluing and folding, automatic box feeding, automatic counting, automatic stacking output, synchronous start with paper feeding, differential adjustment, remote control within 100 meters to realize remote host start and stop, host acceleration scheduling, host stop, delivery Paper start and stop, emergency stop, left and right support arm adjustment, glue box adjustment, average glue box speed 230 m/min, high speed, energy saving, labor cost saving.

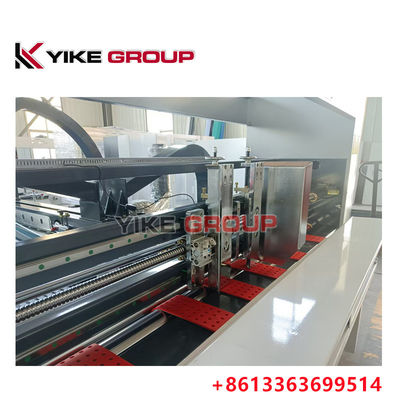

Feeding unit

• The vacuum suction feeding system is good at adapting the curved paperboard
•
• Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.
• The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.

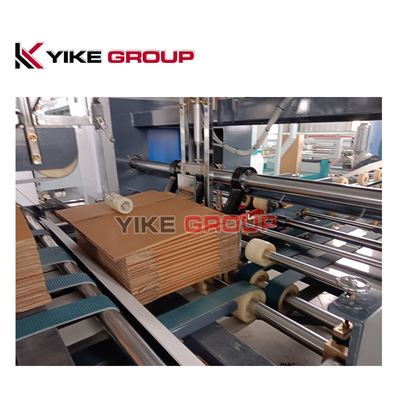

Folding and gluing unit

A   1.The glue quantity is controlled by imported high quality and stability motor, which is low noise

B   2.The gluing roll is made of stainless steel, which is easy for cleaning, the gluing is even and saves its volume.

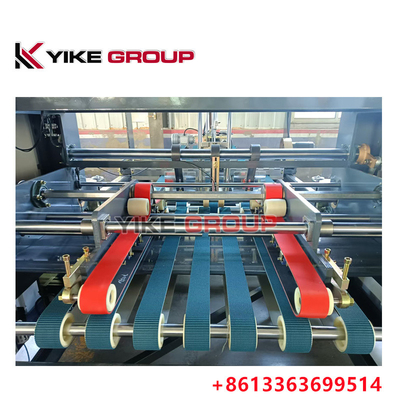

C   3.The transmission belt of folding unit is made of imported wear proof rubber belt,

      guarantee a long life time and makes the cardboard folding precisely.

      4.The re-creasing device is able to re-crease the cardboard to reach a good creasing

        if the first creasing is not good.

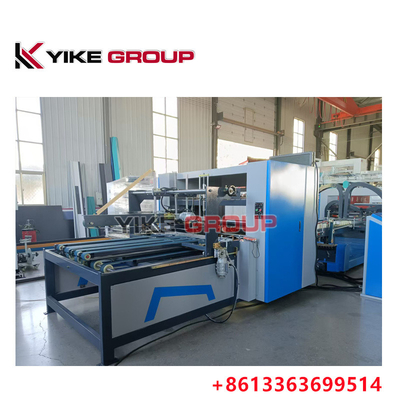

※   COUNTER AND Stacker unit

A. Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.

B. Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.

C. Count and launch adopts pneumatic method, reliable, accurate and fast.

D. Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful
