YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine

Certification
China CHINA YIKE GROUP CO.,LTD certification
China CHINA YIKE GROUP CO.,LTD certification
Customer Reviews
YIKE GROUP Is the Professional Manufactuer for the Carton Box Machinery in China, we are very happy to choose so professional partner. Hope we can expand more business with each other.

—— Bal-UK

I'm Online Chat Now

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine
YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine
YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine

Large Image :  YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-2600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plastic Packaging
Delivery Time: 40 working days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 100set/month

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine

Description
Type: Gluing Machine Certification: CE ISO
Warranty: 1 Year Name: Corrugated Carton Folder Gluer Machine
Automatic Grade: Semi-Automatic Packaging Type: Cartons
Color: According To Customer Function: Gluer Box,For Carton Box Folding Gluing

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine



YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 0



Machine features:



Supplementary gluing machine consists of three parts: vacuum paper feeding part, gluing and folding part and counting and output part. Digital display adjustment box computer amplitude modulation, dual frequency conversion synchronization is not possible, with fast, reliable and accurate supplementary operation mode. Automatic paper feeding, automatic gluing and folding, automatic box feeding, automatic counting, automatic stacking output, synchronous start with paper feeding, differential adjustment, remote control within 100 meters to realize remote host start and stop, host acceleration scheduling, host stop, delivery Paper start and stop, emergency stop, left and right support arm adjustment, glue box adjustment, average glue box speed 230 m/min, high speed, energy saving, labor cost saving.





Model



YK-2600

Dimension A+B(mm)



210-1300

DimensionC+D+C(mm)



170-1300

Equipment size (mm)



3500×11000

Installation area(mm)



4200×15000

Motor power(kw)



12kw



Paper supply department

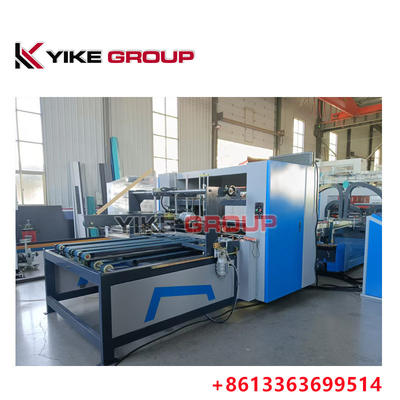

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 1



1. The paper is fed by belt front edge suction, which is accurate and reliable.

2. Adopt high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be controlled independently, and the operation is simple and reliable.

3. The pressing roller is linked with the folding part, the height is adjustable, and the thickness of the cardboard is 2-8mm.

4. The paper feeding wheel is linked with the folding part, the speed is controlled by frequency conversion, and the paper feeding speed is 0-230m/min.

5. The front baffle and the paper feeding belt of the paper feeding section are adjustable from left to right, and equipped with an air cylinder clapping device, which claps the cardboard at regular intervals to ensure that the paper is fed neatly.





Gluing and folding part

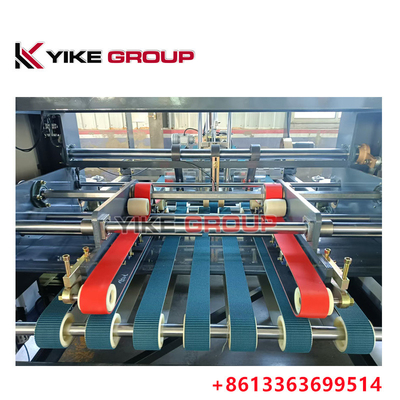

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 2



1. The main motor adopts frequency conversion speed regulation system without noise, flexible and stable speed regulation.

2. Imported high-friction synchronous belts are used to transport cardboard, automatic stacking, strong suction, preventing belt slippage, accurate and reliable paper feeding, and no deviation.

3. Stainless steel wheel is used to apply glue, the amount of glue is even, trouble-free and glue-saving.

4. The folding part is equipped with a cardboard correction device and an indentation correction device.



Counting and stacking department



1. Automatic stacking and neat output.

2. The main motor of the technical department has frequency conversion speed regulation, the speed is adjustable, and the starting is stable and reliable.

3. The cartons are conveyed by the belt, stacked neatly, and the speed is 0-230m/min.

4. Use the beating board to hit the carton, which has the function of correcting the deviation, and the deviation is very small.

5. Pneumatic method is used for counting and ejection, PLC electric control, reliable action, accurate and fast.

6. It adopts PLC programming controller and touch screen digital control, which is easy to operate, reliable in action, input data without stopping, and automatically count.

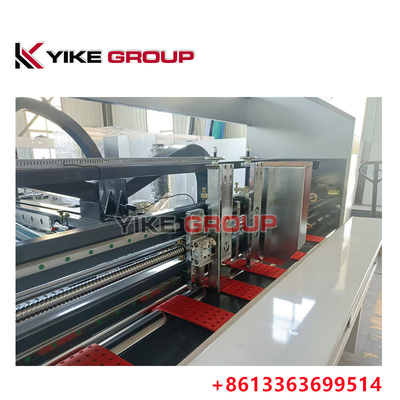

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 3

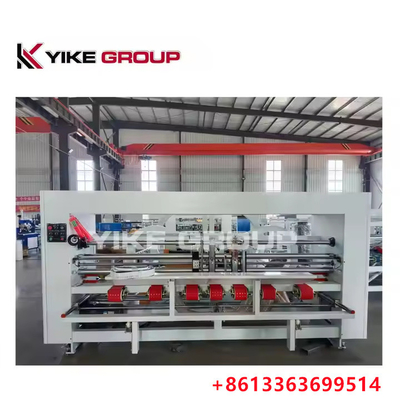

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 4



Electric box control department



1. Ergonomically designed, the console is designed with an inclined plane, which is beautiful in appearance and comfortable to use.

2. The layout of the internal electrical components is reasonable, the wiring is neat, and the labels are clear.

3. The electrical components use Taiwan Delta as the main controller and frequency converter, with precise and stable control.

4. The electrical box is equipped with a paper jam alarm emergency stop device, which can effectively

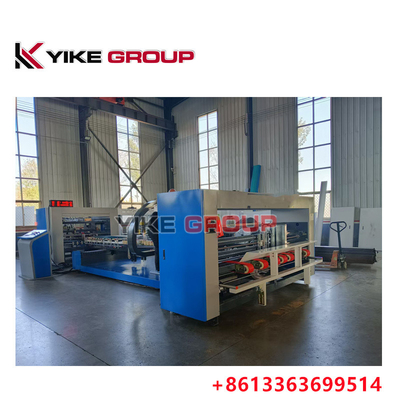

YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 5





YK-2600 Computer Type Automatic Corrugated Carton Folder Gluer Machine 6





FAQ
1. who are we?
CHINA YIKE GROUP, Which based in Hebei, China, start from 2002,sell to Mid East(24.00%),South America(21.00%),Eastern
Europe(15.00%),Africa(10.00%),Southeast Asia(10.00%),North America(5.00%),Western Europe(2.00%),Southern Europe(2.00%),Eastern
Asia(10.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Firstly pre-production sample before mass production;
Secondly Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line,Carton Box Making machine, Box Printing Forming Machine, Auto folder gluer, sitching machine, die cutting machine, bundling machine..
4. why buy from us not from other suppliers?
Factory related carton machinery import & export company, based on more than 30 years experience in providing complete and carton machinery solutions according to different customer situations and requriements. reliable quality and good service on site.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Spanish,Portuguese,Arabic,French,Russian,Italian
