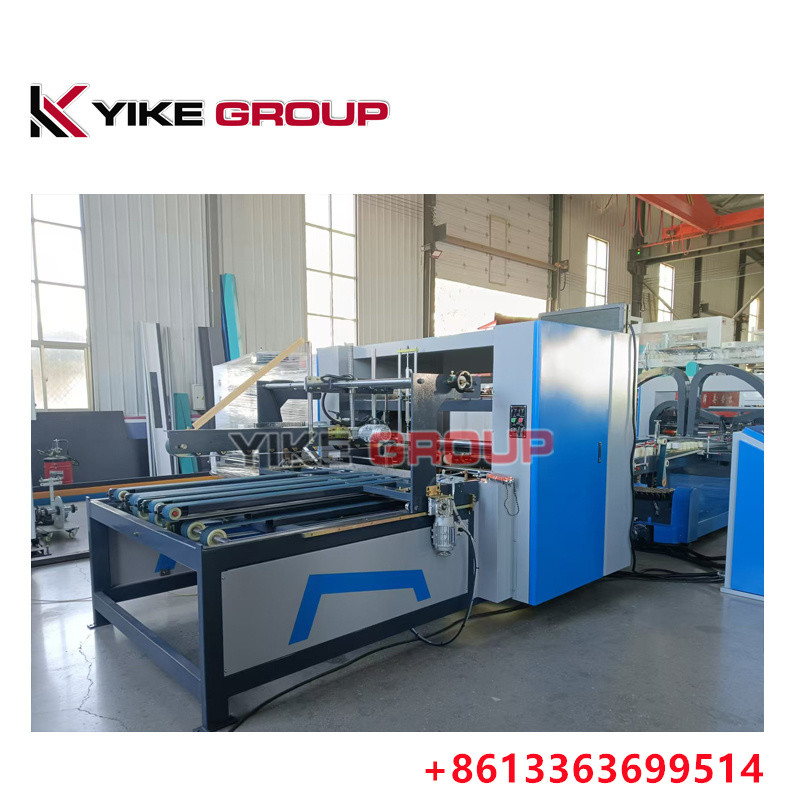

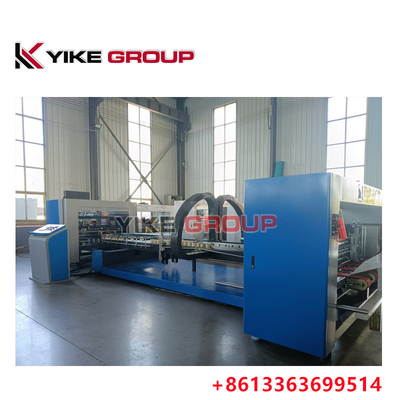

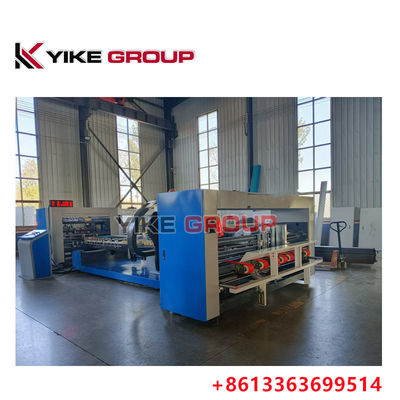

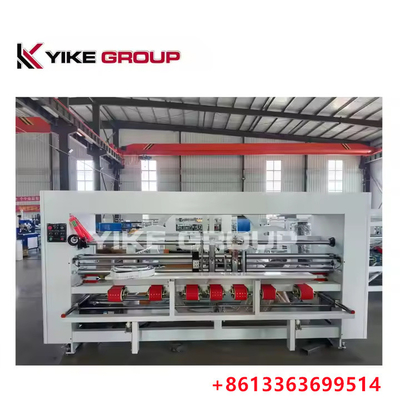

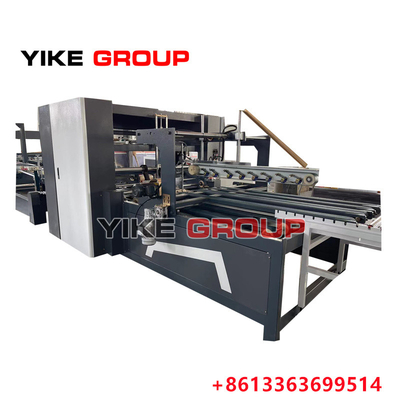

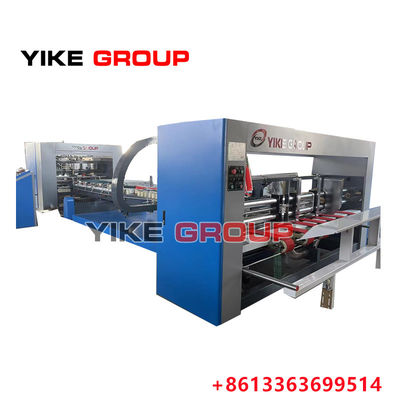

Automatic Box Folder Gluer Machine With PP Strapping Machine Making Carton Box

Automatic Box Folder Gluer Machine With PP Strapping Machine Making Carton Box

※Feeding unit

1.The vacuum suction feeding system is good at adapting the curved paperboard

2.Equipped with high quality electromagnetic clutch brake system, in order to control the feeding unit independently, which is good at reducing waste when changing order and improving the output precision.

3.The paperboard width adjustment unit is made of high quality steel, so as to adjusting the machine width conveniently in order to adapt to the different size of carton box.

※Folding and gluing unit

A. 1.The glue quantity is controlled by imported high quality and stability motor, which is low noise

B

D  2.The folding unit equipped with re-creasing and orthotic devices, the height of creasing wheel is adjustable in order to

       adapt different thickness of cardboard.

E. 3.The re-creasing device is able to re-crease the cardboard to reach a good creasing if the first creasing is not good.

※COUNTER AND Stacker unit

A. Correct part of the native characteristic, has a unique device, the most advanced coaxial is not synchronized, from each according to his ability, good rectifying. With double speed correction device, make the carton eliminate scissors mouth, good shape, size control.

B. Adopt PLC programmable controller and touch screen, digital controls. Response rapid, accurate and reliable, easy to operate.

C. Count and launch adopts pneumatic method, reliable, accurate and fast.

D. Pressing output using suspension conveying device, can accommodate more than 200 carton, the carton can be under pressure for a long time. It not only ensure the cartons sticky mouth bonding strength, and effectively improve the compressive degree of the carton, the carton appearance more beautiful.

Auto PP Strapping Machine

1. The machine is mainly composed of 4 units: receiving sheet turning unit, pat in order unit, conveying unit, and pressurized strapping unit.

2. Reduce rely on manpower, replace workers.

3. Work is compact, no need human intervention

4. Carton boxes after strapping are mouth tight and solid, no rebound, less sticky box edge breakage, etc

5. Less workers, higher speed, 2 ~ 4workers less than ordinary strapping machine, 10 to 20 workers less than manual strapping.

6. Suitable for exported packaging, environmental packaging, such as drinks box, beer case, instant noodles box, ceramic tile box, these high class packaging carton boxes.

The functional characteristics:

1. This product is suitable for use in carton manufacturers for matching glue boxes or ordering lines. The finishing package can be adjusted automatically according to the carton size.

2. The form of strapping: parallel 1-2 channels, the way there are photoelectric, manual and so on.

3. The ram steering power roller conveyor line: speed: 45mm / min.

4. The bottom bonding surface ≥ 90% bonding width ≥ 20mm bonding position deviation ≤ 0.5mm

5. As needed: configure the EFFL telescopic rack connected to other equipment.

More details if you need pls call me
