Product Details:
|
| Name: | Semi Auto Folding Gluing Machine | Color: | According To Customer |
|---|---|---|---|
| Function: | For Carton Box Folding Gluing | Power: | 1.2KW |
| Automatic Grade: | Semi-Automatic | Packaging Type: | Cartons |
| Machine Speed (M/MIN): | 45 | Machine Weight（TON）: | 1.55 |

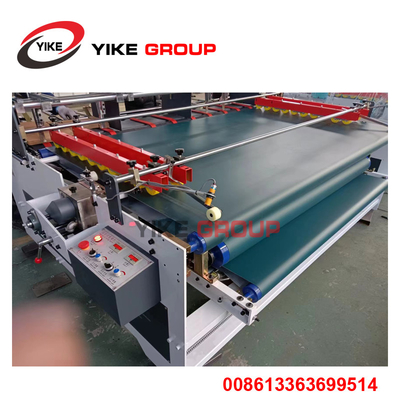

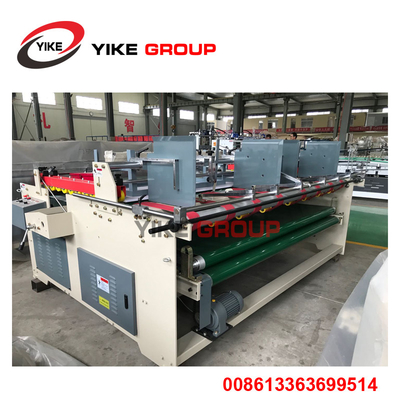

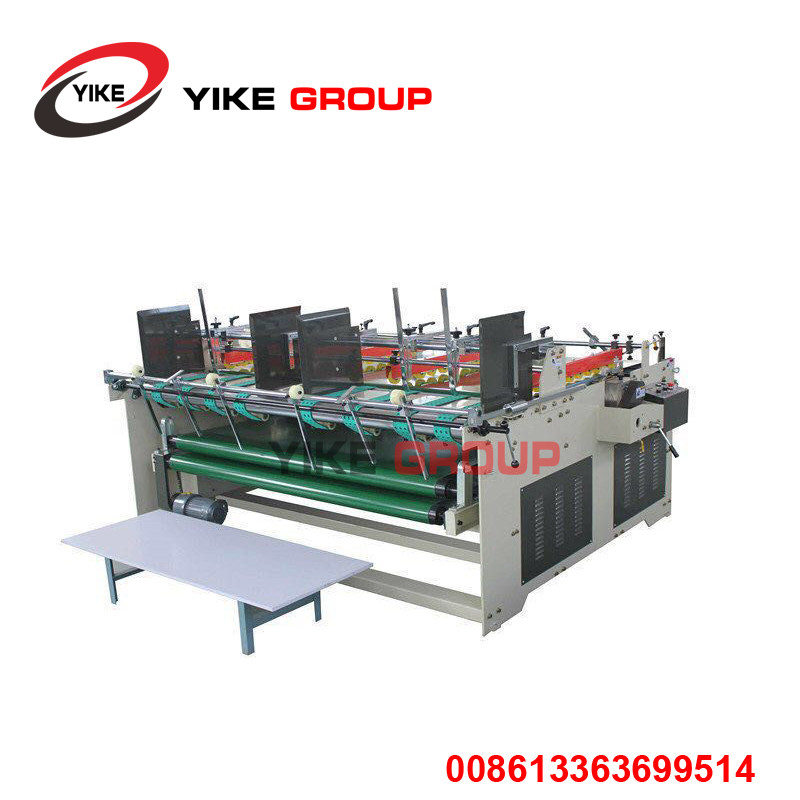

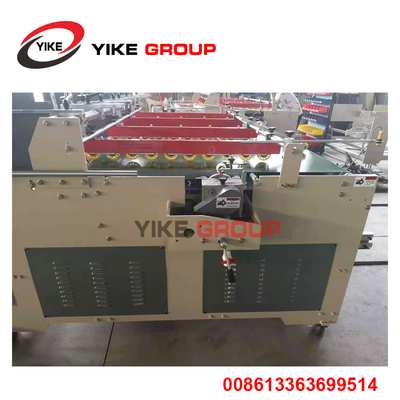

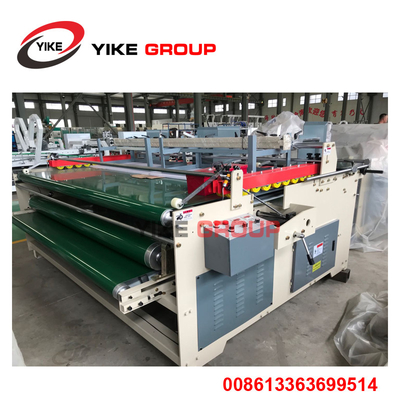

Cheap Price YK-2500 Press Carton Box Semi Auto Folding Gluing Machine
Introduction and features
The semi-automatic press-fit box gluer is developed according to the needs of users' small and medium orders. It has a small footprint, simple operation and no experience, and is very suitable for the production of small batch products and the replacement of varieties. Wide application range, single-page forming of ordinary carton and special-shaped color box.
Save glue, the amount of glue is only 1/5 of that of manual gluing; labor saving, the machine's maximum speed is 50m/min, and the efficiency is 5-6 times that of manual operation; this machine adopts manual folding, while improving work efficiency It is also suitable for products with improper indentation lines, special shapes and face paper with open windows that are not easy to be processed by fully automatic machines.
Technical parameters
|
Specification
|
YK-2000P | YK-2500P |
|
Motor power (KW)
|
1.15 | 1.2 |
|
Machine speed (M/MIN)
|
45 | 45 |
|
Machine weight(TON)
|
1.4 | 1.55 |
|
Maximum paper size(MM)
|
2000x1000 | 2400x1000 |
|
Minimum paper size (MM)
|
260x150 | 260x150 |
|
Appearance size (LxWxH) (MM)
|
2500x2500x1300 | 2700x2500x1300 |
1. Unilateral/bilateral gluing (optional) can be customized according to the needs of customers.
2. Diamond sander (optional) The patented sander can polish the sticky mouth very well to remove the UV light film or the plastic layer of the film, improve the adhesive force of the glue, and relieve the carton factory in some seasons that the carton is easy to open. problem.
3. Synchronous size adjustment (front supporting paper roller) truly realizes the simultaneous adjustment of bilateral working positions, which is convenient, fast and error-free.
★The transmission part of the motor adopts Taiwan Wanxin gear reduction
★This machine adopts famous brand electrical appliances: Delixi inverter, Chint contactor, Chint button, Omron relay, Beifening photoelectric switch, Meanwell power box, etc.
★All belts of this machine adopt Tianjin Seebeck honor products
★The paint of this machine adopts high-grade automobile paint
★This machine uses high quality steel
