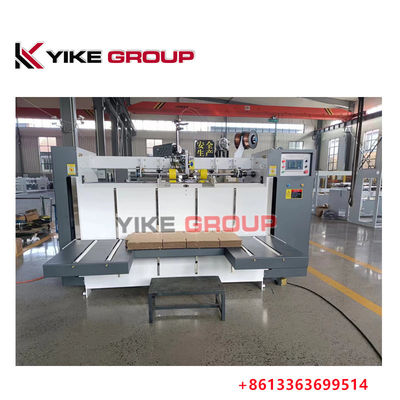

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine

Certification
China CHINA YIKE GROUP CO.,LTD certification
China CHINA YIKE GROUP CO.,LTD certification
Customer Reviews
YIKE GROUP Is the Professional Manufactuer for the Carton Box Machinery in China, we are very happy to choose so professional partner. Hope we can expand more business with each other.

—— Bal-UK

I'm Online Chat Now

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine
Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine
Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine

Large Image :  Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD 7250/Set
Packaging Details: Plastic Packaging
Delivery Time: 30 working days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 200set/month

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine

Description
Automatic Grade: Semi-Automatic Condition: New
Color: Customer's Request Nail Pitch: 30-120mm Adjustale.
Usage: For Carton Box Stapling Product Name: Semi-automatic Corrugated Carton Box Stitching Machine
Mechanical Speed: 600 Nails / Minute Machine Weight: 1.5T
Machine Size: Host 2.8x1.7x2.2 Meters Function: For Carton Box Stitching

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine





Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 0



※General Features



Quality: Due to high requirements for mechanical quality, raw materials selection, processing, assembly of industrial control over the industry standard, using the new design, quality management system, comprehensive tracking to every detail, delivery to the customer in both hardware and software are a high quality equipment.



Efficiency: Patent type feeding width automatic adjustment device and printing locking device with screw. With 4.0 engineering design of industrialization, both hardware and software are charged with the author’s high efficiency tools.



Service: Based on the industry’s first use of PDM design file management system, complete technical support files, regardless of the long time can still be credible commitment to customers, continuous and efficient after-service for the customer support. 24 hours service with 12 engineers .

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 1

※The function and characteristic

  • Japan's Mitsubishi original imported dual servo drive with accurate accuracy and reduced mechanical transmission, which can effectively reduce the failure rate of the machine.
  • Mitsubishi touch screen operation, the parameters (nail distance, number of nails, nail type, backgate) can be changed quickly and easily.
  • The entire control system uses Japanese Mitsubishi PLC control system.
  • The rear electric baffle is driven by a stepping motor, with accurate size and convenient size change.
  • The full contactor in the control box adopts Mitsubishi brand.
  • Optoelectronics and proximity switches use the Schneider brand.
  • The bottom mold and blade are made of Japanese tungsten steel (wear-resistant).
  • Mechanical speed: 600 nails / minute
  • Electric adjustment of the gap between the pressing rollers.
  • Effective height of table lifting: 900mm.
  • Machine size: host 2.8x1.7x2.2 meters.
  • Machine weight: 1.5T.
  • The protection function of the electrical isolation transformer of the whole machine;
  • Automatic wire feeding system, 20KG flat wire, save time.





Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 2



Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 3



最大尺寸(A+B)×2 MAX(A+B)X2 3600mm
最小尺寸(A+B)×2 MIN(A+B)X2 600mm
最大摇盖C MAX C 350mm
最小摇盖C MIN C 65mm
最小宽度(C+D+C) MIN (C+D+C) 350mm
最大纸箱宽度(B) MAX B 700mm
最小纸箱宽度(B) MIN B 150mm
最大纸箱长(A) MAX A 1100mm
最小纸箱长(A) MIN A 150mm
设备总功率(kw) TOTAL POWER 4kw
机械占地面积 MACHINE SIZE 2800×2600mm
机械重量(kg) WEIGHT 1500Kg
钉距(小/大mm) NAIL DISTANCE 20-120mm
机械速度/分 SPEED 600钉/分钟
钉线型号 NAIL MODEL 17,18
钉数 NAIL QTY 1-99





Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 4

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 5



Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 6

Factory Price Carton Box YK -2000 Semi Automatic Carton Stitching Machine 7
