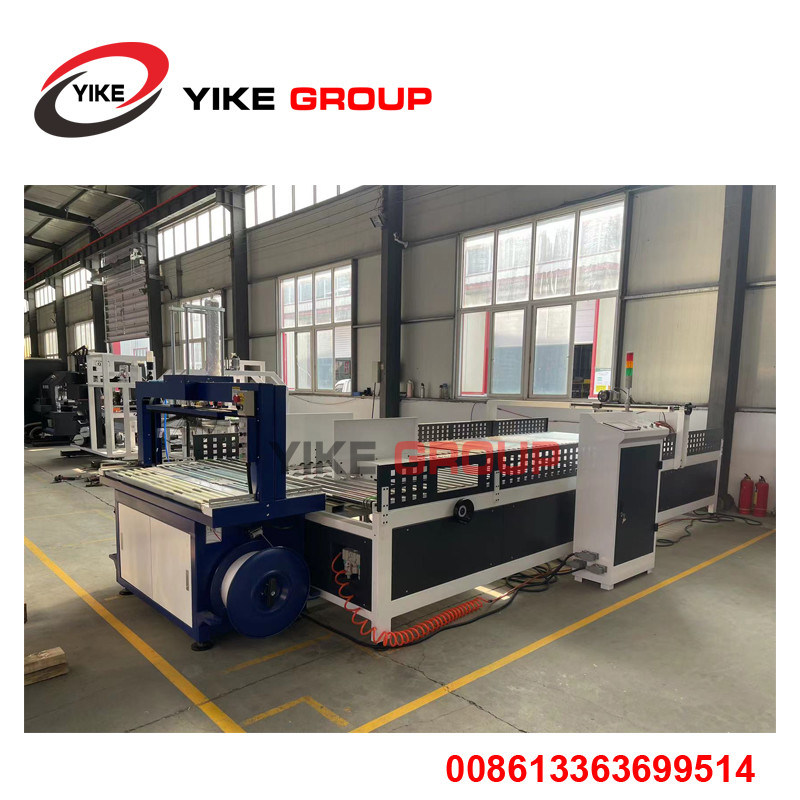

Factory Directly Supply YK-1100 Automatic Strapping Machine

1. The machine is mainly composed of 4 units: receiving sheet turning unit, pat in order unit, conveying unit,

and pressurized strapping unit.

2. Reduce rely on manpower, replace workers.

3. Work is compact, no need human intervention

4. Carton boxes after strapping are mouth tight and solid, no rebound, less sticky box edge breakage, etc

5. Less workers, higher speed, 2 ~ 4workers less than ordinary strapping machine, 10 to 20 workers less than

manual strapping.

6. Suitable for exported packaging, environmental packaging, such as drinks box, beer case, instant noodles

box, ceramic tile box, these high class packaging carton boxes.

7. Max sheet size: 1100x1100mm

8. Min sheet size: 300x350mm

The functional characteristics:

1. This product is suitable for use in carton manufacturers for matching glue boxes or ordering lines. The

finishing package can be adjusted automatically according to the carton size.

2. The form of strapping: parallel 1-2 channels, the way there are photoelectric, manual and so on.

3. The ram steering power roller conveyor line: speed: 45mm / min.

4. The bottom bonding surface ≥ 90% bonding width ≥ 20mm bonding position deviation ≤ 0.5mm

5. As needed: configure the EFFL telescopic rack connected to other equipment.

6. The size of the transport equipment: length 4850 × width 2300 × height 2000 (excluding telescopic rack)

1. Power supply 380V/50HZ 2KW/5A

2. Speed ≤ 12-14 packets / min. (depending on the size of the carton)

3. Gas source: 6kg/cm3.

4. Table height: 850mm.

5. Package size: A: L (300-1150) B: W (350-1150) C: H (0-350) mm

6. Applicable packing belt: Width 5mm, Thickness 0.6mm.

7. Strapping form: Parallel 1-2 channels, the way there are photoelectric, manual and so on.

8. Noise: Under working environment, the noise is ≤75DB.

Steering section:

1. The drum is made of stainless steel tube wall 1.5mm.

2. The roller bearing adopts the Harbin brand.

3. The position of the ram is manually adjusted by the screw according to the size of the carton.

4. The fastest speed of the steering line: 50m/min.

Push In Line:

1. The drum is made of stainless steel tube wall 1.5mm.

2. The roller bearing adopts the Harbin brand.

3. The motor adopts frequency conversion control, starts up, runs smoothly, and can adjust the speed of the

slap according to the size of the carton.

4. Adjust the size of the carton to be completed by manually adjusting the screw.

5. The fastest speed : 70m / min.
