Product Details:
|
| Automatic Grade: | Semi-Automatic | Weight: | 3 Ton |
|---|---|---|---|
| Driven Type: | Electric | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support |
| Type: | High Speed Semi-automatic Flute Laminating Machine | Application: | Machinery & Hardware,Food,Commodity,Medical,Beverage |
| Voltage: | 380V/50HZ | Condition: | New |
| Packaging Material: | Paper | Packaging Type: | Film |
| Product Name: | Semi Automatic Flute Laminating Machine | Warranty: | 1 Year |
| Speed: | 0-90m/min | Color: | Picture Color Can Also Make According To Your Requirement |
| Name: | Flute Laminating Machine | Function: | High Accuracy Laminating Machine |
| Highlight: | 90m/Min Semi Automatic Flute Laminator,380V Semi Automatic Flute Laminator,1300x1200mm Flute Laminator |
||
Anna Tang
Director of YIKE GROUP
Email: Anna@yikegroup.net
Whatsapp: 008613363699514

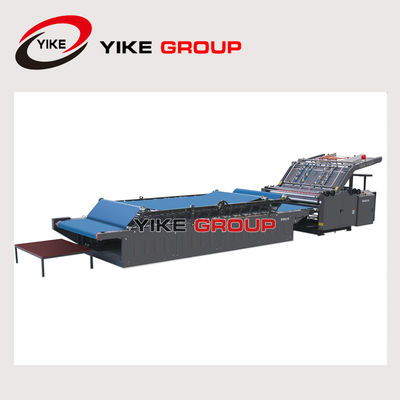

Instruction of Flute Laminator Machine:
This manual flute laminating machine use bottom sheet automatically sent by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating.
Specification:
| Model | YK-1300H | YK-1500H | YK-1600H |
| Max size of cover face | 1300mmX1100mm | 1500mmX1150mm | 1600mmX1150mm |
| Mix size of cover face | 360mmX360mm | 360mmX360mm | 360mmX360mm |
| Economic speed | 0-80 piece/min | 0-80 piece/min | 0-80 piece/min |
| Precision | +-1 | +-1 | +-1 |
| Power | 6kw | 6kw | 6kw |
| Size | 8.8m x 1.95m x 1.7m | 8.8m x 2.15m x 1.7m | 8.8m x 2.25m x 1.7m |
| Weight | About 3T | About 3T | About 3T |
