Product Details:
|
| Automatic Grade: | Automatic Flute Laminator | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
|---|---|---|---|
| Type: | Laminating Machine | Application: | Machinery & Hardware |
| Voltage: | 380V/50HZ | Condition: | New Automatic Flute Laminator |
| Product Name: | Flute Corruagated Cardboard Laminating Machine | Warranty: | 1 Year |
| Name: | Automatic Flute Carton Board Laminate Machine With Auto Delivery | Function: | Gluing Corrugated Carton Board |
| High Light: | High Speed Automatic Flute Laminator,15kw Automatic Flute Laminator,15kw Automatic Flute Laminating Machine |
||

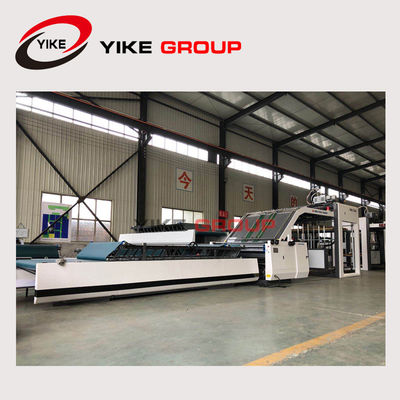

YK-1300A Automatic Flute Laminator
Introduction of YIKE GROUP Flute Laminator:
● Automatic gluing, and the glue can be used circulatory, avoid glue waste.
● Roller design scientifically, avoids glue fly out when the speed is high.
● Pressure rollers adopt one side adjustment, convenient and fast.
● Rocker controls wash roller's fluctuation, easy cleaning.
● Counter designs scientifically, easy recording the amount you have been worked.
Specification:
| Model | YK-1300A Automatic Flute Laminator | YK-1600A Automatic Flute Laminator |
| Max size of cover face | 1300X1200mm | 1600X1200mm |
| Mix size of cover face | 400mmX400mm | 400mmX400mm |
| Economic speed | 0-120 piece/min | 0-100 piece/min |
| Precision | ±1.5MM | ±1.5MM |
| Power | 15kw | 15kw |
| Size | 12m x 2m x 2.4m | 12m x 2.3m x 2.4m |
| Weight | About 4.5T | About 5.5T |
Main electric:
| Name | Brand | Add |
| SERVO MOTOR | DELTA | TAIWAN |
| AC DRIVE | DELTA | TAIWAN |
| INVERTER | DELTA | TAIWAN |
| MAIN MOTOR | MENGNIU |
CHINA
|
| TOUCH SCREEN | MCGS |
CHINA
|
| PLC |
DELTA
|
TAIWAN |
| TRANSFORMER | RENMIN | SHANGHAI |
| OTHER ELECTRIC SYSTEM |
SCHNEIDER
|
FRENCH |
| BEARING | Rhonda | CHINA |
| BELT |
MEGAPOWER
|
ITALY |
| COMPRESSOR | JINZENG |
CHINA |
