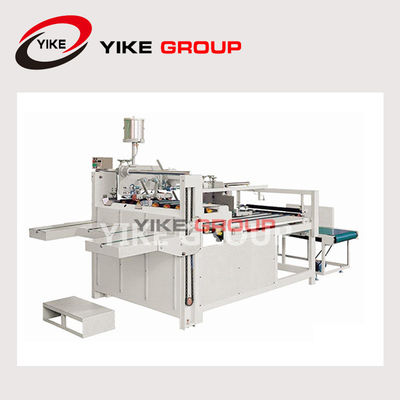

Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine

Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine
Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine

Large Image :  Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO CE
Model Number: YK-2800
Payment & Shipping Terms:
Minimum Order Quantity: One set
Price: To be negotiated
Packaging Details: film packing after wet and rust treatment
Delivery Time: 300 Set/Sets per Year
Payment Terms: L/C, T/T, Western Union

Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine

Description
Name: Automatic Folder Gluer Machine Application: Carton Box
Max Sheet Size: 2800*1300mm Corrugated Layer: 3/5 Layers
Speed: 60m/min Driven Type: Electric
Voltage: 380V,380v 50 Hz Condition: New
Packaging Type: Film Packaging Material: Plastic
High Light:

Semiauto Box Folder Gluer Machine

,

60m/min Folder Gluer Machine

,

Semi 60m/min Automatic Folder Gluer Machine

Semi Automatic Big Size Box Folder Gluer /3/5/7 Layer Corrugated Paperboard Folding Gluing Machine

1.Features

1) Designed with reasonable construction and outstanding shape for easy operation and perfect performance.

2) E-eyes can detect the lifting position and control platform lifting up/down automatically.

3) Automatic aligning devices in the middle of machine which can avoid cross happening.

4) Motorized adjustment for Side patting guide in the middle and stacking platform in the back side. with synchronously moving.

5) Pressure rollers combine with conveyor belts enhances the paper-shaping.

6) Auto-counter can set the quantity of finished items (1-999 pieces). Automatically stack finished carton for packing.

7) Electric components we use Schneider; Omron, CHINT brand and motor adopted domestic brand.

※Technological parameter



Model YK-2800S
Max size (L+W)*2 2800mm
Min size (L+W)*2 340mm
Max size(W+H)*2 1500mm
Min size (W+H)*2 260mm
High of feeder 1000mm
Power 4kw
Machine length 5300mm
Machine weight 1350kg
Machine speed 60m/min
Corrugated Box Semi Auto Big Box 60m/Min Folder Gluer Machine 0
