Product Details:
|
| Name: | Flat Bed Die Cutting Machine | Usage: | Corrugated Carton Cardboard |
|---|---|---|---|
| Automatic Grade: | Manual Die-Cutter Machine | Weight: | 2000KGS |
| Cardboard Layers: | 3,5,7 Layer Paperboard | Power: | 2.2KW |
| High Light: | rotary slotter machine,semi automatic die cutting machine |
||

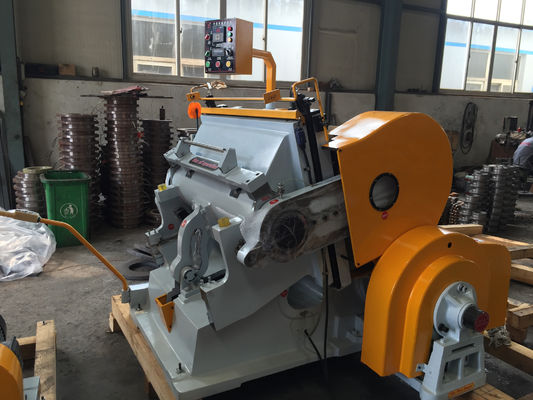

Manual Creasing and Die Cutting Machine For Cardboard / Paperboard
Characteristics:
● Sliding bearing is made of high quality copper alloy, thus to get effect of anti-friction and shake reducing.
● Flywheel is with big moment of force and large pressure.
● High strength due to one piece casting by using top-ranking material for machine body.
● Single plate electromagnetic clutch is sensitive and reliable.
● With functions of single, continuous and opening dwell operation, dwell range is adjustable.
● Operating position is reasonable arranged, moving-bed can be opened to its optimum.
● Safety system is reliable.
● Can cutting corrugated sheet and paper, can cut more paper together.
Specification:
| MODEL | WORKING SIZE | SPEED | POWER | WEIGHT | MACHINE SIZE |
| ML-750 | 750X520MM | 28+-2 | 2.2KW | 2000KG | 1260X1350X1280MM |
| ML-930 | 930X670MM | 23+-2 | 4.0KW | 3000KG | 1800X1600X1600MM |
| ML-1100 | 1100X800MM | 20+-2 | 5.5KW | 4500KG | 1900X1800X1700MM |
| ML-1200 | 1200X830MM | 20+-2 | 5.5KW | 4800KW | 1900X2000X1700MM |
| ML-1300 | 1300X920MM | 18+-2 | 7.5KW | 6000KW | 2000X2400X1800MM |
| ML-1400 | 1400X1000MM | 18+-2 | 7.5KW | 6500KW | 2000X2450X1900MM |
| ML-1500 | 1500X1050MM | 18+-2 | 7.5KW | 7000KW | 2000X2500X1930MM |
