YIKE GROUP CE Approved From China Factory Manual Corrugated Box Stitching Machinery

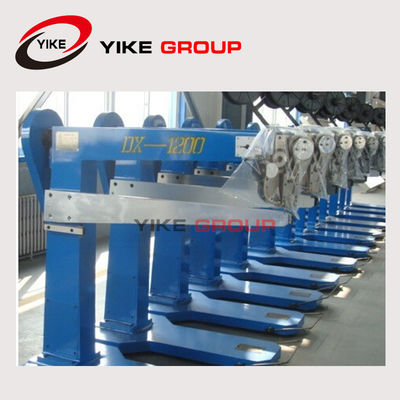

Large Image : YIKE GROUP CE Approved From China Factory Manual Corrugated Box Stitching Machinery

Product Details:

Place of Origin:	China
Brand Name:	YIKE GROUP
Certification:	ISO,CE
Model Number:	YK-600

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set for Corrugated Box Stitching Machinery
Price:	Negotiation
Packaging Details:	Box Stitching Machine Packages by Plastic Film
Delivery Time:	1 Months for Corrugated Box Stitcher Machine
Payment Terms:	L/C, T/T
Supply Ability:	Corrugated Box Stitching Machine 100 Sets Per Month

Contact Now

YIKE GROUP CE Approved From China Factory Manual Corrugated Box Stitching Machinery

Description

Length:	600MM	Usage:	Make Corrugating Carton Box
Thickness:	3/5/7 Ply Cardboard	Speed:	250 Nails/min
Type:	Corrugated Box Stitching Machine/carton Packing Machine Prices	Voltage:	220/380V Or According To Customers Need
Dimension(lwh):	Machine Model	After-sales Service Provided:	Engineers Available To Service Machinery Overseas,Video Technical Support,Overseas Third-party Support Available,Field Maintenance And Repair Service,Field Installation
Condition:	New Manual Corrugated Box Stitching Machinery
Highlight:	carton box stitching machine , cardboard stitching machine

YIKE GROUP CE Approved From China Factory Manual Corrugated Box Stitching Machinery

1. Features

There are mainly nailhead, bracket, drive motor, drive clutch, body, and footswitch.
The Drive motor is generally 0.5 kilowatts, With single or double-stage tripod transmission power, and the motor has only a one-speed ratio.
The Motor operates at work, but when the pedal switch is not stepped on, transmission the clutch is not fixed, and the nails are not nailed.
This Machine-Manual Stitching machine can reduce the labor intensity of employees, greatly improve the staff’s work efficiency and enthusiasm.

2. Specification for Corrugated Box Stitching Machinery

MODEL	SPEED	THICKNESS	LENGTH	SIZE	WEIGHT
DX-600	250NAILS/MIN	3/5 PLY	600MM	1100X600X1760MM	300KG
DX-900	250NAILS/MIN	3/5/7 PLY	900MM	1400X600X1760MM	400KG
DX-1200	250NAILS/MIN	3/5/7 PLY	1200MM	1700X700X1820MM	600KG
DX-1400	250NAILS/MIN	3/5/7 PLY	1400MM	1900X700X1820MM	800KG
DX-1600	250NAILS/MIN	3/5/7 PLY	1600MM	2300X700X1820MM	1000KG

YIKE GROUP CE Approved From China Factory Manual Corrugated Box Stitching Machinery 0
