Product Details:
|
| Name: | Semi-automatic Stitching Machine | Speed: | 500-600 Stitches/min |
|---|---|---|---|
| Usage: | Stitching Box | Product Name: | Stitching Machine |
| Function: | Stapling Box | Distance: | 30-120mm |
| Type: | Corrugated Box Stitching Machine | Power: | 6KW |
| Condition: | New | Packaging Type: | Cartons |
| Color: | Customer's Request |

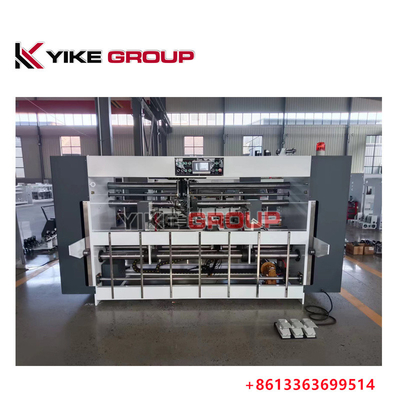

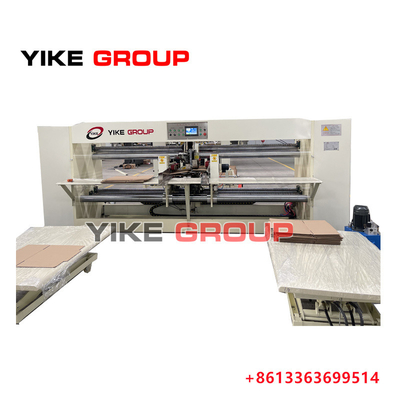

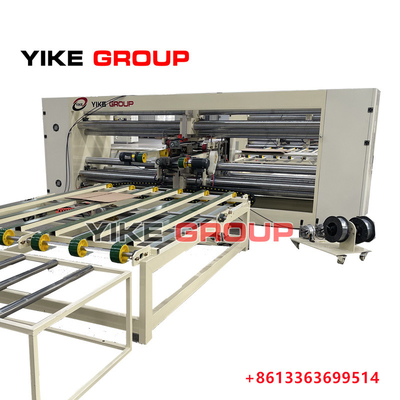

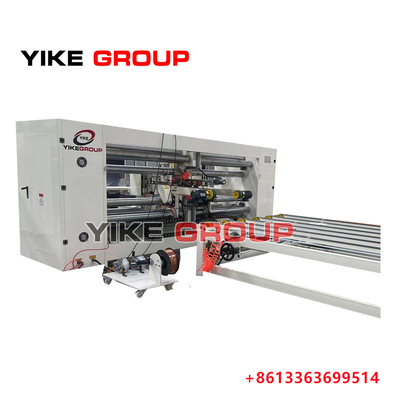

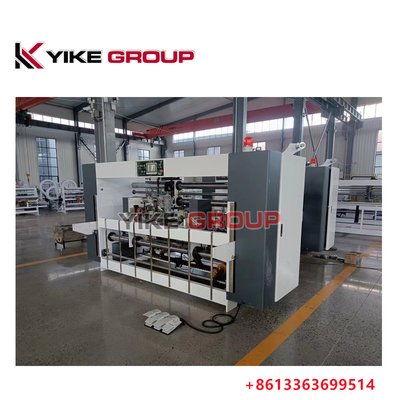

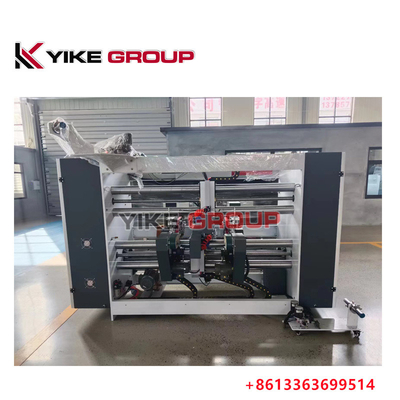

Speed 600 stitches/min Semi-automatic corrugated box stitching machine 2pcs
Main parts and function description:
★Imported four-servo control system.
★One set of dual purpose, can nail single, double and irregular cartons.
★The size adopts all-electric control.
★Can be nailed: single nail, double nail and reinforced nail can be completed at one time.
★The paper feeding department automatically counts, and the finished product is sent out for binding.
★Suitable for small and medium-sized cartons, fast binding and labor-saving.
★Adjust the nail distance, use the computer to set the nail distance automatically.
★Suitable for small and medium-sized cart
ons with three or five layers, cartons with bottoms and no lids can also be nailed, seven layers need to be customized (seven layers of cartons and cartons with bottom and no lids need to be specified when customizing the machine).
★Mechanical speed: 500 nails/min.
|
Max size(A+B)×2
|
5200mm |
|
Mini size(A+B)×2
|
1100mm |
|
Max carton length(mm)A
|
2400mm |
|
Mini carton length(mm)A
|
350mm |
|
Mini carton width B
|
200mm |
|
Mini carton height(C+D+C)
|
300mm |
|
Power
|
6kw |
|
Distance
|
30-120mm |
|
Speed
|
500-600nail/ min |
|
Nail size
|
17-18 |
|
Nail No.
|
2-99 |
Any require pls call us
+8613363699514
anna@yikegroup.net
Anna
