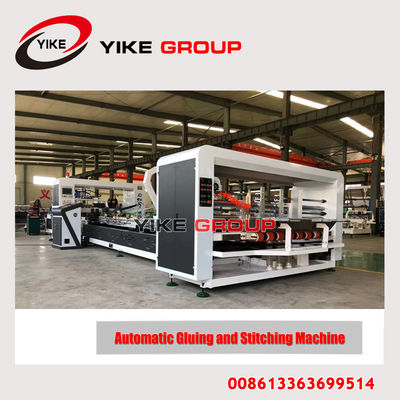

YIKE GROUP Automatic Corrugated Box Stitching Machine

YIKE GROUP Automatic Corrugated Box Stitching Machine, Corrugated Nailing Box Machinery, Carton Box Making Machine

1. Characteristics

• Automatic stitching machine is composed of vacuum feeding department and folder stitching department.
• Display adjustment control, PLC computer adjustment, double frequency conversions running synchronously.
• The operation model is easy, reliable and accurate.
• Automatic feeding, folding, stitching, counting and stacking.
• High speed, save energy and cost.

2. Function Introduction ​

Stitching Section

• Double imported servo drive high precision, reduce the mechanical transmission part, and reduce the mechanical failure rate.
• Stitching department adopt the touch screen operation. Parameter (stitching distance, number, species and back baffle) could change expediently.
• Control system adopts OMRON PLC control system.
• All switches in the control box adopt Taiwan ShiLin.
• Bottom block, knives of stitching department adopt German tungsten steel, which is wearable.
• The head of nail is made of special steel, computer precious produce.
• Switches and buttons adopt Taiwan Tiande.
• Change order in one minute very quickly, easy operation, no training necessary. Suitable for single, double and strengthen nail.
• Automatic counter and easy for strapping.
• Stitching distance can reach to 100mm, which display and adjust on the touch screen. Can stitch whatever the carton have cover or not.
• Automatic adjust paperboard thickness.

3. Specification

4. Machine Detail Photo
