Product Details:
|
| Name: | Flexo Printer Slotter Machine | Model: | YK-1426 |
|---|---|---|---|
| Origin: | China | Min: | 1 Set |
| Condition: | New | Packaging Type: | Cartons |
| Usage: | For Carton Print Slotting And Die Cutting | ||
| High Light: | printing slotting die cutting machine,flexo printing and die cutting machine |
||

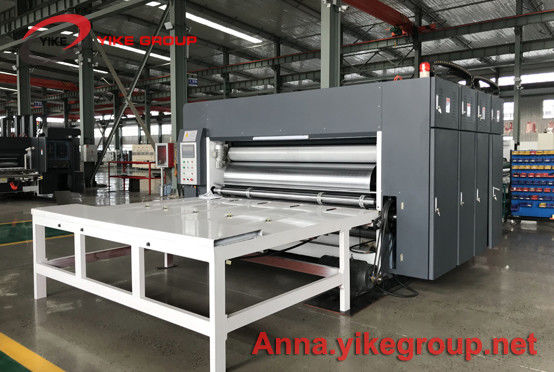

Chain Type Flexo Printer Slotter Machine , Carton Box Printing Machine
Detailed Product Description
| Type:: | Carton Box Printing Machine | Max Cardboard Size:: | 1400*2600mm |
| Min Cardboard Size:: | 350*500mm | Printing Roller:: | 480mm |
| Max Printing Size:: | 1400*2500mm | Speed:: | 0 To 60pcs/min |
| Color Unit:: | 1 To 5 Colors Optional | Packaging Type:: | Carton Wood Plastic |
Carton box printing and slotting machine is used for printing and slotting the corrugated cardboard, paperboard and the color unit from one color to 5 colors according to the customer requirement.
Specification:
| Model | YK-2300 | YK-2500 | YK-2800 |
| Color group | According to customer demand | ||
| Max paperboard size | 1200*2100mm | 1400*2300mm | 1600*2600mm |
| Min paperboard size | 320*500mm | 350*500mm | 400*500mm |
| Max printing size | 1200*2000mm | 1400*2200mm | 1600*2500mm |
| Printing roller diameter | 420mm | 480mm | 536mm |
| Max slotting deep | 300mm | 360mm | 410mm |
| Slotting width | 7mm | 7mm | 7mm |
| Min slotting space |
170*170*170*170 260*70*260*70 |
170*170*170*170 260*70*260*70 |
170*170*170*170 260*70*260*70 |
| Working speed | 0-60pcs/min | 0-60pcs/min | 0-60pcs/min |
Other specification optional according to the demand / adding knife can increase the slotting deep
1. Printing clear, accurate and easy operation.
2. Electric separation, automatic locking tightly.
3. Pneumatic positioning for separation which can ensure original adjusted size unchanged.
4. Pneumatic lifting of printing plate and automatic inking which can realize to ink when machine stop. It eliminates the ink dry during the machine stop and affects the printing effect.
5. It adopts diaphragm pump which can adjust the ink flow to improve the evenness of inking.
6. Electronic counter can accurate counting the quantity of the printed paperboard.
7. Alarm bell device can improve the safety when the machine turns on.
8. Electric phase adjustment can realize 360 degree vertical adjustment for printing and slotting position whatever machine run or stop. It can save time and improve the production efficiency
9. Electric phase display device can make the machine with NC phase adjusting function
10. The transmission gear adopts spray lubrication way which can reduce the noise and increase the gear service life.
11. Automatic shaft locking to make sure the printing accuracy.
12. Anilox roller: customer can choose the steel anilox roller or ceramic roller, the mesh according to customer demand.
Printing Unit:
1.1 high quality printing roller and anilox roller to make sure the printing precisely.
1.2 dynamic balance treatment, smooth operation and it is suitable for high speed operation.
1.3 high precision planetary phase adjustment device---the microcomputer digital phase meter can directly input digital, adjust faster, higher accuracy. 360 degree positive and negative adjustment.
1.4 Separate and combine by electric, pneumatic lock, pneumatic brake device ensure precision position; electric counter, the operation is convenient and quick.
1.5 Lubrication device: this machine adopts the automatic (mechanical pump) spray type circulation
lubrication device, automatic spray, inking amount evenly, each group and circulation, and improve the service life of the gear and the precision of the chromatically.
Slotting unit:
1.1 The slotting shaft adopt thickness wall seamless steel pipe and precisely processing, grinding, hard chrome, dynamic and static balance treatment, good operation.
1.2 The slotting with four knives synchronous adjusting device.
1.3 phase adjustment device: planetary gear structure
