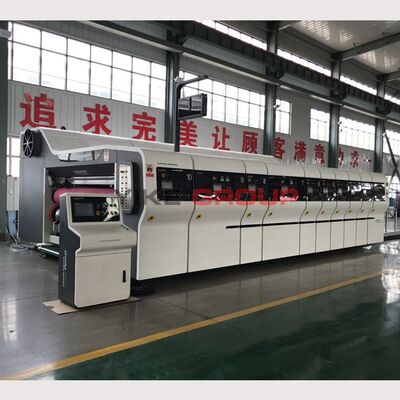

High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine

High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine

    • High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
    • High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
    • High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
    • High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
  • High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine

    Product Details:

    Place of Origin: China
    Brand Name: YIKE
    Certification: ISO,CE
    Model Number: YK-1224

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set Flexo Printer Slotter Machine
    Price: Negotiation
    Packaging Details: Flexo Printer Machine Packages By Plastic Film, Container
    Delivery Time: 3 Months For Flexo Printer Machine
    Payment Terms: L/C, T/T
    Supply Ability: 3 Sets Per Month For Flexo Printer Machine
    Contact Now
    Detailed Product Description
    Color: 4 Color Max Board Size: 1200/2400
    Slotter: Computer Slotter Max Speed: 300pcs/min
    Usage: Corrugated Paperboard Printing Max Printing Size: 1200/2200


    High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine

    General Features

    ►Stable: The lead feeder, servo phase, vacuum adsorption, many rows dislocation arrangement design, favors the cardboard stable transmission. Reinforced frame positioning device, gear direct rigid connection in the wallboard, imported gear from Taiwan and bearing from japan with high speed and long-term stability, with integral anilox roller lift version to keep promotion assure printing, the whole machine adopts the French Schneider electric, host, fan, PLC, touch screen use GERMAN SIEMENS.
    ►Precision: Rubber roller surface with double glue technology, low pressure transmission from the impact of the pneumatic pressure, can control the whole vacuum adsorption, more with a word dislocation encryption round ceramic array, cardboard more adsorption, without beating, the overall precision of the anilox roller transmission device, full speed to reduce anilox roller beating, with servo phase adjustment increase anilox roller printing quality, down adjustment pressure structure of the die cutting roller keep paperboard line transmission precision guarantee.

    Slotting Unit

    ►Single shaft five blades slotting ,an internal gear adjusts the height of the carton box and prevents the lubricating oil from spilling or leaking onto the cardboard.
    ►The first pre-creasing,the cardboard not be damaged after prepressing.
    ►Upper creasing roll covered by anvil ring,so cardboard is not damaged easily.
    ►Slotting bosses move along liner lead rails and are driven by lead screws for flexible and precise movement.
    ►Upper boss and lower boss are coupled to keep the two knives aligned while moving,which is helpful to prolong service life.
    ►Slotting register and height of carton box are digital controlled by motor and PLC.
    ►Transversal movement of the pre-creasing rolls,and slotting bosses’ are digital controlled by motor and PLC
    ►Motorized controls of the slotting bosses caliber.
    ►A protective device prevents the slotting knife from crashing when the height of the carton box is adjusted.
    ►Flexible angle cutting knife can cut 3 or 5 or 7 ply cardboard with no adjustment,easy to operate.

    Drying Unit

    ►Vacuum adsorption ceramic wheels transfer, more rows ceramic wheels dislocation array to strengthen cardboard transmission stability.
    ►The bellows damper can adjust by automatic according to the cardboard size.
    ►Drying system with imported PLC program automatic controlling, man-machine dialog control and display.
    ►Automatic temperature control, fault alarm protection, automatic detection alarm, fault status display.
    ►Drying system with the host control starting and closing double protection, completely solve the cardboard directly irradiation time heat and burning this question when the machine stop.

    Main Technical Parameters


    1224 VACUUM TRANSFER HIGH DEFINITION PRINTING SLOTTING DIE CUTTING MACHINE
    Max Machine Speed (pcs/min)300
    Economic Working Speed (pcs/min)250
    Max. Feeding Size (mm)1200×2400
    Min. Feeding Size (mm)350x600
    Skip-Feeding Size (mm)1400×2400
    Standard Plate Thickness (mm)3.9
    Min. Slotter Distance POSITIVE130X130X130X130
    Min. Slotter Distance NEGATIVE230X65X230X65
    Max Slotter Depth (mm)300
    Print Precision (mm)±0.3
    Slot Precision (mm)±1.0
    Die Cut Precision (mm)±1.0
    Suitable Cardboard Thickness (mm)2 - 11



    Printing Effective Photo

    High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
    High Definition Corrugated Cardboard Automatic Vaccum Transfer Flexo Printing Slotting Rotary Diecutting Machine
