Product Details:
|
| Name: | Printer Slotter Machine | Origin: | China |
|---|---|---|---|
| Model: | YKHD-1224 | Brand: | YIKE GROUP |
| High Light: | printing slotting die cutting machine,flexo printer slotter die cutter |
||
Detailed Product Description
| Type:: | Box Printing Machine | Plate Type:: | Flexo Ink Printing |
| Automatic Grade:: | Full-Atuomatic | Function:: | Printing Die Cutting Slotting |
| Usage:: | Paper Forming Machine | Box Type:: | Cardboard Box |

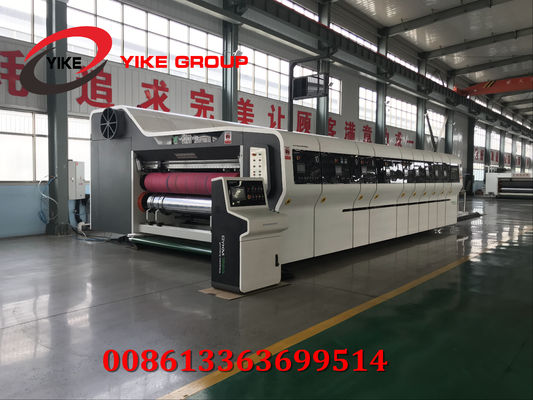

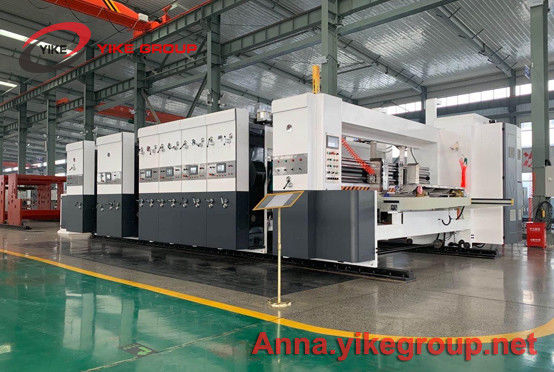

Automatic 5 Colors Flexo Printer Slotter Die Cutter High Definition For Carton Box
Product Parameter
| HRB 1224 VACUUM TRANSFER HIGH DEFINITION PRINTING SLOTTING DIE CUTTING WITH FOLDER GLUER LINE(5+1) |
|
| LEAD EDGE FEEDER | 1 |
| PRINTER/COATING (5+1) | 5+1 |
| DRY | 3 |
| SLOTTER | 1 |
| DIE CUTTER | 1 |
| GLUER LINE | 1 |
Specification Table
| Model | 920 | 1224 |
| Wall board thickness | 60mm | 60mm |
| Max Machine Speed(pcs/min) | 300 | 300 |
| Economic Working Speed(pcs/min) | 250 | 250 |
| Max. Feeding Size(m/m) | 900 x 2000 | 1200x2400 |
| Min. Feeding Size(mm) | 350x600 | 400x650 |
| Skip- feeding Size(mm) | 1200x 2000 | 1400x 2400 |
| Standard Plate Thickness(m/m) | 3.9 | 3.9 |
| Min. slotter distance POSITIVE | 130X130X130X130 | 150X150X150X150 |
| Min. slotter distance NEGATIVE | 230X65X230X65 | 250X75X250X75 |
| Max slotter depth(m/m) | 300 | 300 |
| Print precision(m/m) | ±0.3 | ±0.3 |
| Slot precision(m/m) | ±1.0 | ±1.0 |
| Die cut precision(m/m) | ±1.0 | ±1.0 |
| Suitable Cardboard Thickness(m/m) | 2-11 | 2-11 |
Product Description
1. Lead feeder with wheels feeding system, lead feeding can adjust cardboard length
according to cardboard specification.
2. Copy sun automation lead edge feeder with strong vacuum transfer for precise and stable feeding;(made from guangdong province)
3. Frequency conversion adjustment vacuum negative pressure value, can adopt to
different cardboard specification and curved cardboard.
4. Feeding roll is made of two-layer rubber,inner layer is soft and outer
layer is hard,this makes inner layer more flexible and surface more
wear-resistant,and reduce the flute damage of the cardboard;
5. Dust remove system with brush and segmented vacuum sheets cleaner;Self-locked system adopts for adjusting feeding rolls gap,motorized and PLC control of feeder side guides;
6. Motorized backstop forward /backward and up/down position for easy and quick
adjustment;
7. Five rows brush to strengthen the force of negative pressure fan dust removal device, pipe concentrated dust collection.
1. Pneumatic clutch is adopted on the anilox roll to:Make the roll run at the same speed as the main motor when the unit is printing;Make the roll stop when the unit is not printing;Reduce the possibility of damage to the rubber roll and the anilox roll for inproper operation;Allow units which are not in use to be washed up while running.
2. Printing register is digitally controlled by motor and PLC
3. Transverse register is also digital controlled by motor and PLC ±10mm
