| Machinery Test Report: | Provided | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Warranty: | 3 Years | Usage: | Making Cardboard |
| Function: | High Efficiency | Speed: | 200M/MIN |
| High Light: | Corrugated Cardboard Machinery,Corrugated Paperboard Production Line |
||
main technical parameters and requirements in production line
| 1 | Effective width | 2200mm | 2 | Design produce speed | 200m/min | |||
| 3 | Three layer work speed | 150-180m/min | 4 | Five layer work speed | 120-150m/min | |||
| 5 | Seven layer work speed | ------------------- | 6 | The highest change single speed | 100m/min | |||
| 7 | Longitudinal separation accuracy | ±1mm | 8 | Cross-cutting precision | ±1mm | |||
|
note |
Speed the above targets required to achieve:effective width2200mm,Comply with the following standards and ensure the paper's equipment condition 175 ℃ heating surface temperature. | |||||||
| Top paper index | 100g/㎡--180g/㎡ Ring crush index(N.m/g)≥8 (Water containing8-10%) | |||||||
| Core paper index | 80g/㎡--160g/㎡ Ring crush index(N.m/g)≥5.5 (Water containing8-10%) | |||||||
| In paper index | 90g/㎡--160g/㎡ Ring crush index(N.m/g)≥6 (Water containing8-10%) | |||||||
| 9 | Flute combination | |||||||
| 10 | Steam requirement | The maximum pressure 16kg/cm2 | Common pressure10-12kg/cm2 | use4000kg/Hr | ||||
| 11 | Electricity demand | AC380V 50Hz 3PH | Total power≈300KW | Running Power≈250KW | ||||
| 12 | Compressed air | The maximum pressure 9kg/cm2 | Common pressure4-8kg/cm2 | Use 1m³/min | ||||
| 13 | space | ≈Lmin91m*Wmin10m*Hmin5m(The actual drawing to provider to provide audited prevail) | ||||||
|
Customer-owned section
|
|
1, steam heating system:proposal with 4000Kg / Hr of a steam boiler pressure:1.25Mpa steam pipeline.
|
| 2, air compressed machine,air pipeline,glue conveying pipe. |
| 3, power supply,wires connected to the operation panel and line pipe. |
| 4, water sources,water pipelines,buckets and so on. |
| 5, Water, electricity, gas flush mounting civil foundation. |
|
6, Test with the base paper,corn starch (potato),Industrial use caustic soda,borax and other material.
|
| 7, Oil equipment,lubricating oil,hydraulic oil,lubricating grease. |
|
8, installation,commissioning of food, accommodation.And provide installers with the installation.
|

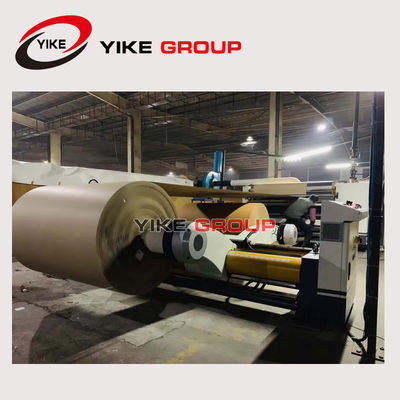

ZJ-V5B hydraulic shaftless mill roll stand
structural feature:
★adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.
★brake adjustable adopts multipoint braking system.
★every stand matched two sets paper car , and they can paper on the both sides at the same time.
technical parameters:
1,the range of clamping paper:MAX2200mm MIN1000mm 2,clamping diameters:MAX￠1500mm MIN￠350mm
3,main shaft diameter of paper holder:￠240mm 4,gas source work pressure(Mpa):0.4---0.8Mpa
5,equipment size:Lmx4.3*Wmx1.8*Hmx1.6 6,single weight:MAX4000Kg
SF-360C1 fingerless type single facer
structural feature:
1.Main corrugated roller: ￠360mm(according to the flute shape different),pressure roller￠415mm,preheat roller￠400mm.
2.Adopt negative pressure design,use less heat,make the core paper can be pressed evenly and attached to the surface of the corrugated roller, make the corrugator shape better.Because the pressure is evenly,the top of the corrugator can be glued more evenly,make the single corrugated paper bond better.
3.Corrugated roller use 48Crmo alloy steel, though heat treatment, surface through grinding make tungsten carbide treatment.
technical parameters:
1,effective width:2200mm 2,operate direction:left or right(Determined in accordance with the customer's facility)
3,design speed:200m/min 4,range of temperature:160—200℃
5,air source:0.4—0.9Mpa 6,steam pressure:0.8—1.3Mpa
7,corrugate flute(UVtype or UVVtype)
