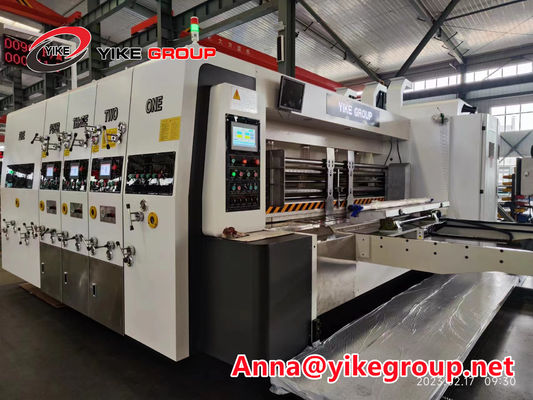

Fully Automatic 415V 440V Flexo Printer Slotter Machine 150pcs/Min

Printer Slotter Die Cutter Machine

Main Technical Parameters

Machine Separation & Combination

ü Button switches electrically control the separation and combination

of machine, with automatic alarm device, continuously alarm while moving, to ensure the safety of operators.

ü Air pressure interlocks, lock securely, conveniently, and accurately.

ü Machine clutch drive shaft is equipped with an overload protection device.

ü Active self-locking function: if the unit is not completely locking state,

the host cannot start, to ensure the safety of machine and operator;

while hosting normal working conditions, the unit clutch function is automatically locked, to avoid machine misuse and personal injury.

Dust-removal System

ü Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

Feeding Roller: Feeding Roller

ü Upper feeding roll adopts outer diameter φ156mm rubber roller,

elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.

ü Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.

ü According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

※Printer Unit

Printing Roller

ü With printing plate

ü High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running

ü Roller horizontal direction and circumferential direction with datum line, convenient for align plate

ü Fixed coil axis, suitable for standard hanging slats, realize rapid change plate

ü Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.

ü Installed with foot switch to control plate roller reversing, convenient change plate

ü Auto-zero function, order memory.

ü Printing roller plate-change and fix-plate function.

ü Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

※Slotting Unit

• Angle cutter made by ITALY model, cutting ring use Rubber materials
• Computer auto-control cardboard size by Linear guideway
• 6 shaft with rubber pre-creasing, creasing, slotter
• The first pressure line round, after preloading cardboard not easily crush
• The above press round Urethane appearance package, will not damage the cardboard
• The slotter knife stock use a traverse mechanism, screw with linear guide, to move more flexible and precise

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
