Speed 80pcs/Min Automatic Flexo Printing Machine Electrical Slotter For Carton Box

Speed 80 Flexo Printer Slotter Machine For Carton Box

Features

1. Lead Edge with First Printer Unit -- Economic Type to save cost
2. Working Speed: 80pcs/min
3. Single Turbine Box
4. Slotter: Electrical Slotter

Option Units

1. Paste Plate or Hang Plate
2. Auto or Manual Stacker
3. Stripper Unit
4. Vibration with Blower

※LEAD EDGE FEEDER UINT

• Automatic suction lead edge feeder equipped with a 7.5kw suction fan to feeding cardboard, the blowing rate is adjustable by the transducer according to the degree of crook of cardboard in order to transmit cardboard smoothly.
• The main control pannel is composed of control buttons and touch screen, which is very convenient and reliable.
• The machine is launched by pressing the start button with two hands, which ensure the operator's safety.
• The side plate is electrical adjusted automatically while the backstop is adjusted manually.
• Sheet cleaner is equipped to remove the contaminants on the cardboard which will improves the printing quality.
• The upper transmission roll is made of seamless steel tube, the surface is covered wearproof rubber, which is also good at avoiding crushing the cardboard.
• The lower transmission roll is made of seamless steel tube, with the treatment of grinding, embossing, and chrome plated.
• The transmission between the upper and lower transmission roll is driven by double slider coupling, which is good at reducing wear down and transmitting smoothly.
• The transmission shaft equipped with electromagnetic friction clutch, for avoiding damaging the motor in case of misoperation or overload.
• Automatic counter for recording the cardboard supply quantity to show the output.

※Printer Unit

• Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
• Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
• Each printing unit can be electrical separation. Printing Slotting Machine
• High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
• Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.
• Automatic uniform system to keep the anilox roller quit. When the machine stop,the anilox roller and rubber roller could running independently for transmission ink and prevent the ink dry out.
• The rubber roller is use high quality hard wearing rubber,and with the middle of a relatively high high-precision grinding. Semi Automatic Carton Flexo Printing Slotting Machine
• Phase institutions is 360-degree Electric adjustment, ergonomic design.

※Die-cutting Unit

• Rubber roller mechanical spiral commutation 40mm move about horizontal structure
• Die-cutter phase, computer and electric digital control
• Horizontal phase, computer and electric digital control, range ±5mm
• Rubber roller and die roller gap use computer and electric digital control,
• Adjust the transfer roller use computer and electric digital control,
• The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm

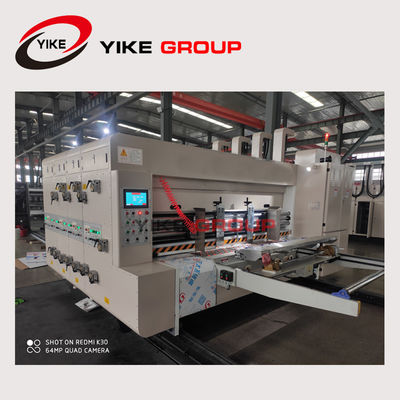

100% Real Machine Photos
