Lead Edge Automatic Die Cutting Machine YX-1680Q For Corrugated Board

Lead Edge Automatic Die Cutting Machine YX-1680Q For Corrugated Board
Lead Edge Automatic Die Cutting Machine YX-1680Q For Corrugated Board

Large Image :  Lead Edge Automatic Die Cutting Machine YX-1680Q For Corrugated Board

Product Details:
Place of Origin: China
Brand Name: YUNXIANG
Certification: CE,ISO
Model Number: YX-1680Q
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET Flat Bed Die Cutting Machine
Price: Negotiation
Packaging Details: Flat Bed Die Cutting Machine Packaged by Plastic-film
Delivery Time: Within 3 Months For Flat Bed Die Cutting Machine
Payment Terms: L/C, T/T
Supply Ability: 10 Sets Flat Bed Die Cutting Machine Per Month

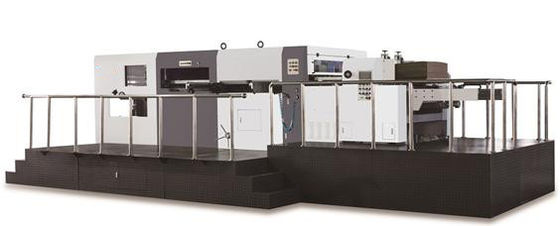

Lead Edge Automatic Die Cutting Machine YX-1680Q For Corrugated Board

Item: Flat Bed Die Cutting Machine Max. Paper Size: 1680x1250MM
Sheet Thickness: Corrugated Board<10mm Max. Pressure: 350 T
Die-Cutting Precision: ±0.15 Max.Cutting Speed: 5500 Sheets / Hour
High Light:

creasing and die cutting machine


semi automatic die cutting machine


WEB: www.yikegroup.net

Email: info@yikegroup.net

WhatsApp: +86 17743859771


Automatic Lead Edge Die-Cutting Machine With Stripping Unit For Corrugated Board





Automatic die-cutting & stripping machine is the key device for the production of cartons, paper boxes and high standard paper products, etc. It is especially applicable to the automatic die-cutting and stripping of complicated paper boxes and cigarette cases to rationalize the production of paper boxes. This machine is integrally assembled, transported and mounted, it can be put into operated in one day, and thus the cost is reduced. The precise assembly and high configuration make it better than Taiwan machines and competitive with Japan machines.



1, Paper Feeding Unit and Paper Conveying Unit


Paper Feeding Unit:


1) The high precision lead edge feeder, can adopt to different requirement of the different paper. Frequency conversion control wind volume adjustment. Wind suction area can adjust according to the paper size with high-power fan.

2) The forward, backward, light and low positions can be adjusted according to the stock for smooth feeding of thinner paper, large gram cardboard and corrugated paper etc.

3) Top speed can be reached at 5500s/h. Die cutting precision is within ± 0.15mm.


Paper Conveying Unit:


4) The paper conveying part is made of stainless steel plate to prevent rust and provide stable and correct paper conveying.

5) Paper is positioned by a pushing unit and a pulling unit which can be shifted conveniently for different specifications of paper.


2, Die-cutting Unit


1) The cast wall plate is rejected because of its low pulling force but high deformation, and steel wall plate is applied like Japan machines. The pulling force is enlarged, i.e. the pressing force is enlarged, and it becomes firm and endurable without any deformation.

2) This machine is upgraded to a brand high level by the automatic pressure regulation and automatic front scale regulation. The addition of this function upgrades it into a convenient and favorable digital device with high controlling speed.

3) The oil route is forcibly lubricated by a HP oil pump as made in Taiwan to reduce wearing, an oil cooler is added to cool the lubricating oil, and the main chain is lubricated timely to improve the operation efficiency.

4) The novel transmission mechanism provides high speed die-cutting, and the highly precise swing link platform improves the padding speed (almost without padding), as it is known the pressure can be hardly balanced in most of other common machines.

5) The pneumatic plate locking unit can fix the upper frame more firmly and faster. In our die-cutting machine, the front, back, left and right are pneumatically locked simultaneously to realize a high correctness and a high speed. However, common machines are tightened by screws.

6) The paper holding rack chain is imported from Germany, which provides a long service life and a stable die-cutting precision.

7) The Taiwan intermittent mechanism is the main transmission part of the die-cutting machine, and it improves the die-cutting speed and precision and reduces the device noise, while the speed and precision cannot be realized by any domestic mechanism.

8) The torque limiter is equipped with overload protection. The primary and secondary units can be separated at any overload to ensure the machine can be operated safely. The Italia pneumatic brake and clutch with Japan SMC rotary joint comply with the European standard. They provide fast clutching, high and stable force, long service life and low noise.


3, Paper Stripping Unit


1) By the one-time stripping system, all irrelative paper scrapes and waste edges (except the held margins) can be stripped in die-cutting.

2) The up, down and middle die cam tri-link transmission system is stable, harmonious, and correct for high power and fast loading, unloading and calibrating.

3) The stripping frame is pneumatically lifted with a centering unit, and it can be operated easily to shorten the preparation time.

4) The preliminarily loading platform is equipped with a centering unit to facilitate the mounting of stripping plate.

5) The stripping process is reasonably designed to eliminate the defect of low speed and plate deviating during stripping.


4, Paper Collecting Unit


1) Paper can be collected automatically and orderly.

2) The efficiency is improved by an uninterrupted paper collecting grid plate, and when paper is stacked to the specified height, the paper collecting grid plate will be replaced by another plate for uninterrupted paper collecting.

3) By the pneumatic sampling, the die-cut paper can be conveniently inspected at any time.


5, Electrical Control Unit


1) The electrical control system is Japan Omron PLC computer automatic control for fully detecting and controlling, and the Japan TOSHIBA frequency converter with Taiwan main motor provides high power for paper feeding, paper conveying, die-cutting, and paper collecting.

2) The human-machine interface can display various working conditions, indicate fault positions and give solutions.

3) The machine is equipped with various safety protection units. A visible and audible alarm will be given at any fault, and the machine will be automatically shut down to protect personal and device safety.





Model YX-1680Q
Max. Paper Size 1680×1250mm
Min. Paper Size 650×600mm
Max. Cutting Size 1670×1240mm
Max. Pressure 350T
Sheet Thickness Carboard250-2500g/m2 Corrugated Board<10mm (max.thickness)
Max.Cutting Speed 5500sheets/h
Die-Cutting Precision ±0.15
Max. sheet piles 1600mm
Total power 19.5KW
Weight 26T
Overall Dimension 8500×4350×2500mm




Accompanying Tools


Name Quantity Specification
Flat screw driver 1 piece 150
Cross screw driver 1 piece 150
Monkey wrench 1 piece 300
Allen wrench 1 set
Socket spanner 1 set 6-27
Sway spanner 1 piece
Steel plate handle 1 piece
Hammer 1 piece
Engine oil can 1 piece
Pressing oil gun 1 piece
Tool box 1 piece
