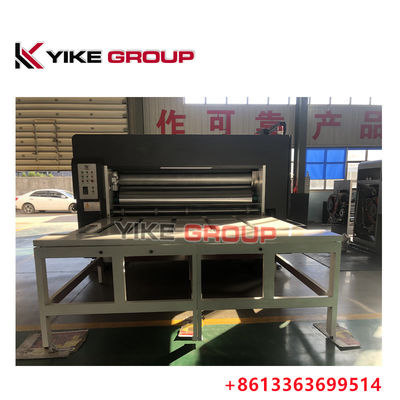

China YIKE GROUP Chain Type Corrugated Cardboard Two Color Printing Slotting Combined Machine

China YIKE GROUP Chain Type Corrugated Cardboard Two Color Printing Slotting Combined Machine

Features

1. Printer slotter phase: Electric number digital adjust
2. Auto ink circulation system
3. Combined slotting creasing slitting knives which is easy to change order
4. The gear of the machine: Auto lubrication with oil
5. Machine body thickness: 50mm
6. Automatic separated, pneumatic lock up.

Chain Feeder Flexo Printer Machine Advantages

The printing equipment of corrugated board printer integrates printing, slitting and indentation production functions. It has simple structure, small floor area, simple operation method and easy quality control. It plays a certain role in carton production process.

Main Units

• Chain Feed Table Unit  -- One Unit

1. Semi-Automatic chain feeder
2. Ateral positioning to guarantee accurate feed
3. Automatic counting

• Printer Unit -- One to Five Unit Option

1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High-speed Ink Printing Slotting Machine Manufacture
2. Frequency control system to control becomes easy and flexible. Each group of printing unit is equipped with jogging button for easy control and loaded rubber plate.
3. Each printing unit can be electrical separation. Printing Slotting Machine
4. High-precision anilox roller, diameter 195mm. The textured density of anilox roller is 180-300 lines / inch, to ensure the printing effect is clear and beautiful.
5. Ink supply system is pneumatic diaphragm pumps, high efficiency, Flexo Printing Slotting Machine saving ink. Automatic cycle supply. Cleaning with clean water can be.

• Slotter Unit

1. Gear enclosed spray lubrication system, keyless drive design, so that accurate long-term chromatic unchanged. High Speed Flexo Printing Slotting(stacking Unit)
2. Phase institutions is 360-degree Electric adjustment, ergonomic design.
3. Four-blade sync adjustment for carton height.
4. Serrated slotted cutter. Thickness: 7mm. Cutting angle blade width: 40mm.

• Die Cutting Unit

1. Die cutting roller for the high quality steel materials,30mm thickness, balance correction, hard-chrome plating.
2. Wallboard for high-quality cast iron material,50mm thickness, and large processing center production.
3. Soft-roll automatic grinding institutions to pouches repeat usage,grinding3-4times;
4. Line speed automatic compensation to ensure that each batch of cardboard boxes full of die-size line;
5. Use Imported Polyurethane soft rubber, ease of installation, can cut 12000000 times.;
6. Mechanical soft roll about 40 mm lateral movement ,the pads wear uniform;
7. 40cr material the use of grinding gears for 6,low noise long life;
8. Die cutting roller cylinder automatic separation devices to reduce wear pouches.

Technical Parameter

What Carton Boxes Does The Machine Could Make ?
