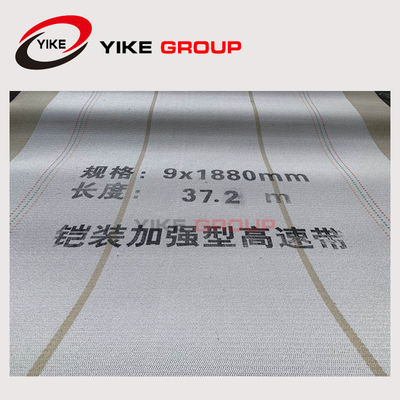

Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION

Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION
Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION

Large Image :  Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-YKSD
Payment & Shipping Terms:
Minimum Order Quantity: 30 Meters Corrugator belts
Packaging Details: Packages by Wooden Box
Delivery Time: 3 Months
Payment Terms: L/C, T/T
Supply Ability: 5000 Meters per Month

Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION

Description
Name: Corrugated Board Conveyor Belt Used For: Carton Production Line
Application: Carton Box Corrugator Machine Speed: 100-300m/min
Type: Conveyor Belt Standard Or Nonstandard: Standard
Weight: Standard Condition: New
Packaging Type: Film
High Light:

corrugated board corrugator belt

,

carton production line corrugator belt

,

double facer machine corrugator belt

Woven Type Corrugator Belt For Fosber, BHS, Tcy Corrugated Cardboard Production Line

 Strong Edge Corrugator Belt For High Speed Double Facer Machine


1. Features

·5-layer woven fabric
·Composition of cotton, synthetic and IFDY
·High moisture absorption and release; Low noise and high speed
·Woven structure, anti-skidding

Reinforced Edges Kevlar armored on both edges
-----------------------------------------------------------
Width: 1400-3200mm
Speed: 100-300m/min
Kevlar edge: 100-200mm
Suitable for: Top and Bottom Belt
Change cardboards width frequently , or hotter plates.




2. Specification

Corrugator Belt
Model YKKSD
Material 100% PET SYNTHETICS
Speed 100-300m/min
Weight  7.6+0.2kg/m2
Thicknss 8-9mm
Width 1400-3200mm
Heat resistance 240℃(Kevlar 350℃)
Tension 65MPA
Air.permeability 2.0M3/M2MIN
Min.winding radius R70(mm)
Life 40-50 MILLION METER


3. Application
Used for 2/3/5/7 ply Automatic corrugated cardboard production line, packaging industry. If you want to see more information about CORRUGATOR BELT, please here. It will provide more details about corrugator belt.



Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION 0
Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION 1

Woven Type Corrugator Belt BHS TCY FOSBER CHAMPION 2
