1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine

1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine
1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine

Large Image :  1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YKF-1450
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set For Flute Laminator Machine
Price: Negotiation
Packaging Details: Flute Laminator Machine Packages By Wooden Box
Delivery Time: 3 Months For Flute Laminator Machine
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Flute Laminator Machine Per Month

1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine

Description
Item: Flute Laminator Machine Application: Corrugating Paperboard
Max Size: 1300x1100MM Min Sheet Size: 500x500MM
Automatic Grade: Automatic Driven Type: Pneumatic
After-sales Service Provided: Online Support Type: Laminating Machine
High Light:

1650mm Flute Laminator Machine

,

5 Ply Flute Laminator Machine Auto

,

1650mm Automatic Flute Laminator



YIKE GROUP AUTOMATIC 5 PLY FLUTE LAMINATOR MACHINE

CHINA YIKE GROUP CO.,LTD
WEB: www.yikegroup.net
Email: Anna@yikegroup.net


In order to ensure the safe use of the machine, please connect the ground line according to the requirements.

  • Introduction:

YK-F series fully automatic multilayer flute laminator is consists of automatic face paper lifting section, face paper conveying section, double bottom paper synchronized or asynchronized conveying section, double bottom paper positioning section, cyclic gluing section, pressing section, delivering section and automatic collecting section. It suits to laminate the printed paper to the corrugated board or cardboard which is thicker than 350gsm, with features of high precision and high speed. It is the ideal laminating machine for all kinds of packaging company domestic and overseas.



Model


YKF-1300 YKF-1450 YKF-1600

Max paper size


1280x1100mm 1430x1100mm 1580x1100mm

Min paper size


500x500mm

Face paper thickness


150-600gsm

Bottom paper


A/B/C/E/F/G 2ply flute

Precision


1.5mm

Max Speed


6000pcs/h

Height of face paper pile


1600mm

Face paper table capacity


1500kg

Height of bottom 2ply pile


400mm

Total power


20kw

Dimension


15x2.2x2.6m 15x2.4x2.6m 15x2.5x2.6m

Machine weight


5000kg 5500kg 6000kg
  • Machine structure:
  • Face paper conveying section adopts advanced four sucking and four delivering feeder, with the help of high pressure vacuum pump it can feed the face paper 180-600gsm efficiently. Position displaying hand wheel on the face paper pile loading section makes the loading action more accurate and more convenient for the bottom paper loading at the same time. Limited switch fixed on face paper loading section makes the moving up action more accurate.
  • Conveying belt, pressing roller and automatic chasing lay all do help to the face paper delivery. Pressing roller adopts the specialized roller which is used on print machine, it can delivery both thick and thin paper effectively. Anti-curl structure helps to delivery face paper at the same time.
  •
PHOTOS

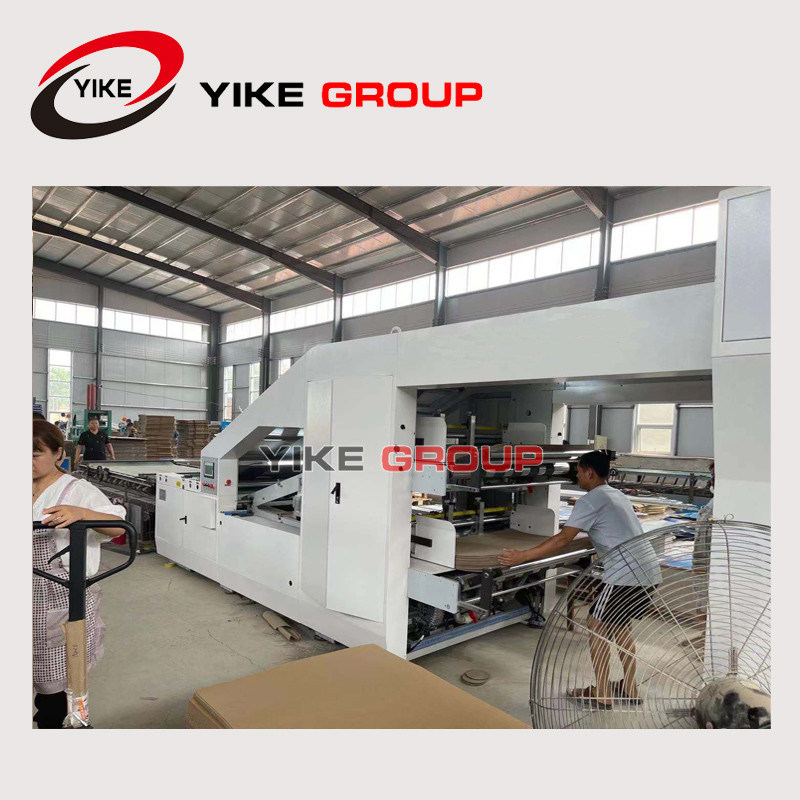

1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine 0
1650mm 3 / 4 / 5 Ply Fully Auto Flute Laminator Machine 1







1 MACHINE CAN DO

3PLY/4PLY/5PLY

3 IN 1
