3 Ply Corrugated Cardboard Production Line 1800mm Hydraulic Mill Roll Stand

Detailed Product Description

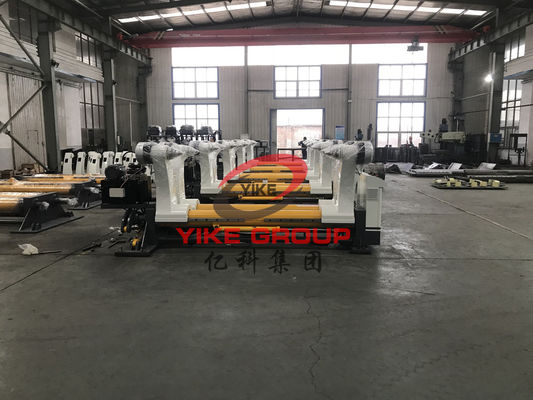

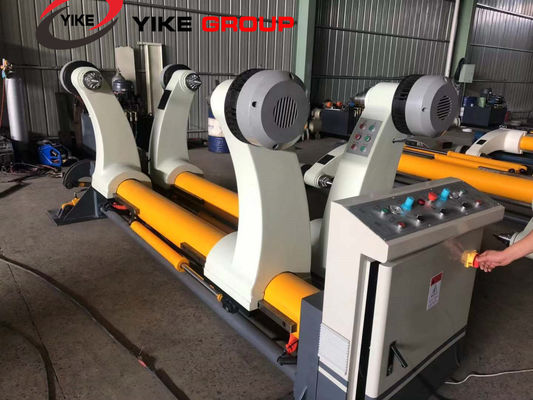

Hydraulic Mill Roll Stand For Corrugated Cardboard Plant/Carton Packing Machine/3 Ply Corrugated Carton Machine

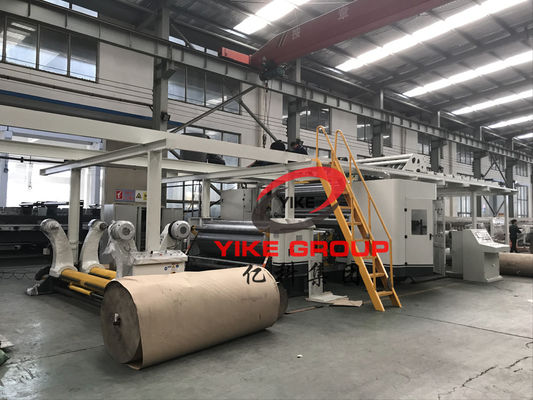

Hydraulic Mill Roll Stand is a part of Corrugated Board Production Line.Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others,the lifting of the paper adopts hydraulic drive.

• Technological Parameter:

*Effective working width: maximum 1600mm minimum 900mm

*Max machine speed: 120m/min Economy speed: 80-100m/min

*Working pressure: 0.6-0.9Mpa Steam pressure: 0.9-1.3Mpa

*Steam consumption: 0.5-0.8t/h

Working power: 380v 50Hz

*Dimension: 3600mm×2100mm×2100mm(length×width×height)

• Equipment Characteristics:

Adopt adsorption in order to transmit cardboard and keep corrugated stably.

Corrugated paper are adsorbed into corrugated roller through vacuum box by fans and come into negative pressure zone to finish corrugated.

1. The width of low corrugated roller suction groove no more than 2mm, can reduce corrugated cardboard stripe marks of single facer.

2. Cardan transmission, separating with vibration source, drive more stably, running reliable, simple maintenance.

3. Reduction box adopts oil lubrication, close style gear transmission, reduce the machine vibration.

4. Adopt auto-cycle supplying glue, pneumatic gluing and resetting with buffered effect.

5. Glue roller surface be special anilox engraved and chrome plating.

6. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after heat-treatment. The rigidity is HRC56-60°,the surface are whetted and chrome plating.

• Flute type:

A flute height is4.7mm

B flute height is2.75mm

C flute height is3.75mm

E flute height is1.8mm(or customers appointed)

• Main Components Parameter:

1. Upper and lower corrugated roller are made of 48CrMo high quality alloy steel, after heat-treatment. The rigidity is HRC56-60°,the surface are whetted and planting chorme.

2. Diameter of upper corrugated roller:φ318mm

Diameter of low corrugated roller:φ320mm Origin: HEBEI

3.. Diameter of pressure roller:φ 340mm

Pressure roller are made of No.45 seamless steel pipe that are treated by quenching.

4. Diameter of gluing roller:φ 240mm

Surface are treated with special anilox embossing and chrome plated.

5. No.45 Seamless steel pipe made in CHENGDU

6. Diameter of picking glue roller:φ 120mm

No.20 seamless steel pipe made in CHENGDU

7. Diameter of preheating roller:φ400mm 20g steel made in JINAN Iron and steel company wall thickness: 20mm

• Material and Purchase Standard Items:

1. The material of both sides wallboard and base material: HT200 casting made in HEBEI

2. Material of transmission department base: It is weld with channel steel

3. Rotary Joint, Metal hose, made in Johnson, SHANDONGLUGUANQIU

4. Bearing types: (main)made in JAPAN NSK

(General)made in WAFANGDIAN, HARBIN, LUOYANG

5. General bearing made in HAERBIN,WAFANGDIAND,LUOYANG

Bearing with block, made in ZHEJIANG JINRUN

6. Motor types: Main motor,11kw one set continuous work

Suction fan7.5kw one set continuous work

7. Electric types made in ZHEJIANG ZHEGNTAI

8. Pneumatic components: TIANYUAN Origin: SHANDONG ZAOZHUANG

• FAQ:

1. Q: Are you a factory or trading company?

A: We are a manufacture which is specialized in the production of various kinds of carton equipments for more than 30 years. (with export license)

2. Q: Where is your factory located? How can I visit here?

A: Our factory is located in Dongguang industrial area of Dongguang country, Cangzhou City Hebei province, China. It is about 2 hours from Jinan International airport by car. And it is about 1 hour from Cangzhou high-speed rail station. We can pick you up if you need.

Welcome to visit our factory!

3. Q: What are your products?

A: We are specialized in producing 3ply, 5ply, 7ply corrugated cardboard production line, high speed printing machine, ordinary printing machine, single facer, rotary die cutter and other corrugated cardboard production equipment.

4. Q: How does your factory do regarding quality controlling?

A: Over the years our company take “the quality first” “integrity-based” corporate purpose always meet users’ requirements as our sole purpose providing the products with excellent quality and professional technology for every customer . We always attach great importance to quality controlling from the very beginning to the very end.

1) All raw material we used are environment-friendly

2) Skillful workers care every details in handling the producing and packing process

3) Quality control department specially responsible for quality in each process

5. Q: How is the evaluation of the products?

A: Products are distributed Russia, the Middle East, Africa, Southeast Asia, EU and other countries and throughout the country. Product quality and enter reputation get the high praise at home and aboard.

6. Q: What is the payment terms?

A: T/T, it is 30% deposit due at placing order and 70% balance due before loading.
