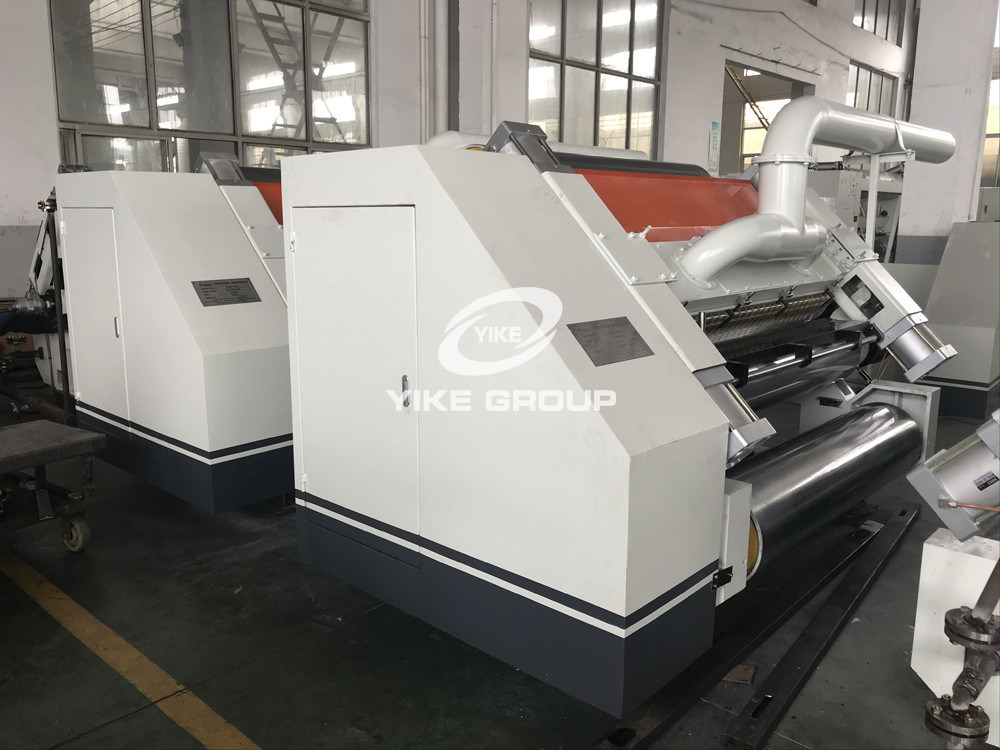

Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter

Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter
Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter

Large Image :  Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: CE
Model Number: 280S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set Single Facer
Packaging Details: Packaged by Plastic Film
Delivery Time: 3 Months Upon Receipt Of Payment
Payment Terms: L/C, T/T
Supply Ability: 30 Sets Per Month

Professional Fingerless Single Facer Corrugated Rolls Machine 280mm Diameter

Description
Other Name: Fingless Single Facer Diameter: 280mm
Parts: Corrugated Roller, Pressure Roller Material: Hard Chrome
Width: 1400-1800mm Type: 280S

good quality fingerless single facer corrugated rolls machine






  • Description

Single facer is design for producing single-face corrugated paper



  • Machine Function:



1.Corrugated Rollers:





Diameter

Φ280mm





Material



48CrMo high quality alloy steel, rigidity HRC55°-58°



Processing Way



After quenching and tempering,The surface of upper-lower roller is ground, then plating chrome or tungsten carbide



Control Way



Cylinder control Lifting Up-down



Driving Way



Frequency motor



Way of Transmit cardboard



Vacuum Cover adsorbable style, Height pressure fan withnoise deadening device



Way of Bearing lubricating



High temperature grease



Flute Type



(U/V) ACBEF(According to customers requirements)



2.Press Rollers:





Diameter

Φ284mm





Material



Carbon steel (MS)45#



Processing Way



After quenching and tempering,The surface of roller isground, then plating chrome



Control Way



Cylinder control Lifting Up-down



Way of Bearing lubricating



High temperature grease



3.Glue Roller:





Diameter

Φ216mm





Material

Carbon steel (MS)45#



Processing Way



Surface is ground,inscribed with 25 lines of pitted mesh,thenplated chrome



Driving Way



Frequency motor



Way of Bearing lubricating



High temperature grease



Glue Supply



Autamatic glue circulating system(storage tank+glue pump),electric supply glue



4.Preheater Rollers:





Diameter



Φ320mm



Material





seamless steel tube



Processing Way

After quenching and tempering,The surface of roller isground, then plating chrome





  • Machine Technical Parameter:



Working Width 2200mm
Design Speed 100m/min
Working Speed 80m/min
Pneumatic Source Pressure(Mpa) 0.4---0.8Mpa
Main Drive Motor 7.5KW
Suction Motor 7.5KW





  • Main Components Brand:



Components Name Brand
Corrugated roller JiYuan
Belower Shanghai
Pneumatic system Zhejiang Sonor CSM
Main bearing NSK
Main electrical Schneider
Button Schneider
Main motor Heibei Yongshun
Inverter Taiwan
Touch Screen Taiwan
