Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine
Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine

Large Image :  Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine

Product Details:
Place of Origin: Dongguang, Cangzhou, China
Brand Name: YIKE
Certification: ISO,CE
Model Number: YK-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Corrugated Box Stitching Machine
Price: Negotiation
Packaging Details: Box Stitching Machine Packages by Plastic Film
Delivery Time: 1 Months for Corrugated Box Stitcher Machine
Payment Terms: L/C, T/T
Supply Ability: Corrugated Box Stitching Machine 50 Sets Per Month

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine

Description
Item: Corrugated Box Stitching Machine MAX(A+B)X2: 3600MM
MIN(A+B)X2: 600MM Usage: Make Corrugating Carton
Stitching Distance: 20-120MM Stitcher Speed: 600nails/min
Motor: 2 Sets Japan Servo Motor Weight: 1.5 T
High Light:

semi automatic box stitching machine

,

cardboard stitching machine

YK-2000 Type High Speed Double Servo Drive Semi-Automatic Nail Box Machine



1. Main parts and function description of 2000 type high speed semi-automatic nail box machine:


★ Japan's Mitsubishi original imported dual servo drive, accurate accuracy, mechanical transmission part reduction, can effectively reduce the mechanical failure rate.
★ Mitsubishi touch screen operation, parameters (nail distance, number of nails, nail type, back panel) change is convenient and fast.
★ The entire control system uses the Japanese Mitsubishi PLC control system.
★ Rear electric baffle, driven by stepper motor, accurate size, easy to change size.
★ The full contactor in the control box adopts the Mitsubishi brand.
★ The photoelectric and proximity switches are based on the Schneider brand.
★ The bottom mold, the blade is made of Japanese tungsten steel (wearable).

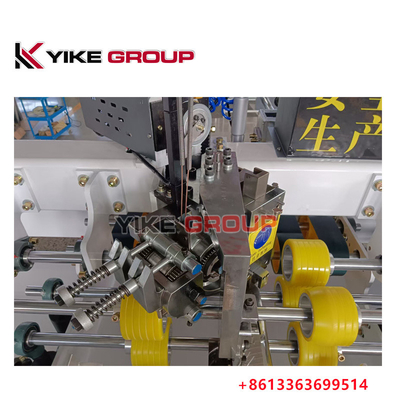

★ The whole set of nail heads are made of special steel, and the computer is precision machined.
★ Can be nailed single nail / double nail / /, reinforcing nail (/ / / / / / two ends are double nails in the middle part of a single nail) one-time completion, can be adapted to different customer requirements for nail types.
★ It takes only one minute to change the size of the carton and adjust the carton nail distance, which saves time and is convenient to operate.
★ The front feed unit automatically counts, and the paper feed table is equipped with a photoelectric sensor that automatically rises when feeding.
★ There is automatic counting function in the back section. The number of finished products can be sent to the end of the conveying machine in a set number (1-99), which is convenient for packing and binding.
★ Mechanical speed: 600 nails / minute.
★ Nail distance: 30-120mm can be adjusted at will.
★ The paper pad rubber wheel gap is electrically adjusted.
★ Effective height of workbench: 900mm.
★ Machine size: The main unit is 2.8x1.7x2.2 meters.
★ Machine weight: 1.5T.
★ The whole machine electrical isolation transformer protection function.
★ Automatic wire feeding system, 20KG flat wire, saving time.



2.



Max Size(A+B)×2 3600mm
Min Size(A+B)×2 600mm
Max Size C 350mm
Min Size C 65mm
Min Width(C+D+C) 350mm
Max Cardboard Width(B) 700mm
Min Cardboard Width(B) 150mm
Max Carton Length(A) 1100mm
Min Carton Length(A) 150mm
Power(kw) 4kw
Demision 2800×2600mm
Weight(kg) 1500Kg
Distance of Nail(mm) 20-120mm
Speed/Min 600nails/min
Stitcher Line Type 17,18
Stitcher Number 1-99

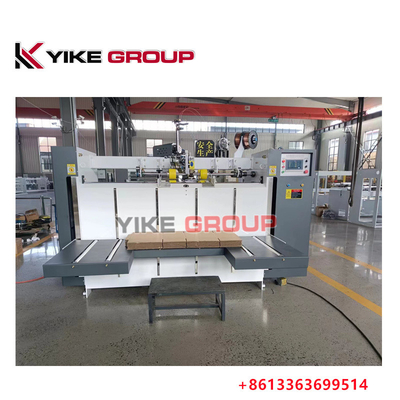

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine 0

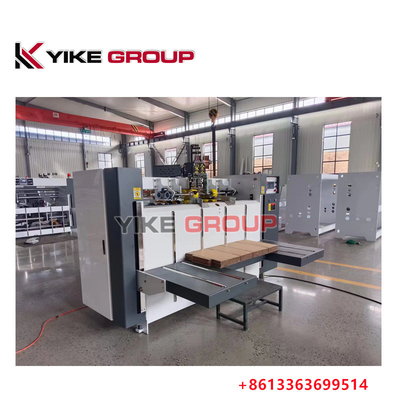

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine 1

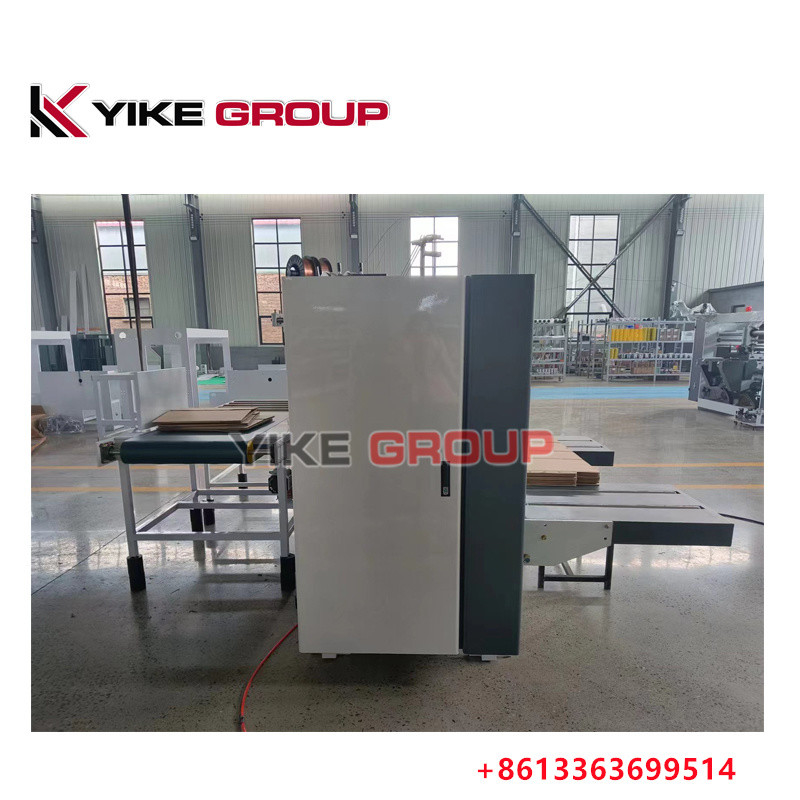

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine 2

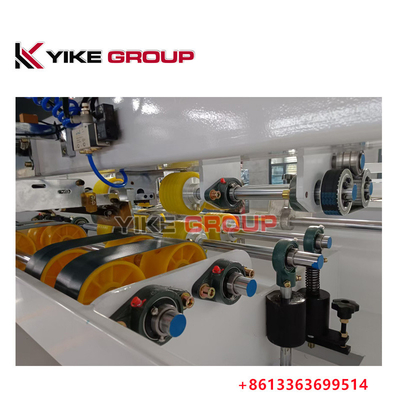

Professional Carton Box Making Machine Semi Auto Single Piece Stitcher Machine 3
