320C Single Facer Corrugated Carton Box Machine With Automatic Stacker

320C Single Facer Corrugated Carton Box Machine With Automatic Stacker
320C Single Facer Corrugated Carton Box Machine With Automatic Stacker

Large Image :  320C Single Facer Corrugated Carton Box Machine With Automatic Stacker

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-1800
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Single Facer Line
Price: Negotiation
Packaging Details: Single Facer Line Packed by Plastic Film
Delivery Time: 3 Months For Corrugated Carton Box Machine
Payment Terms: L/C, T/T
Supply Ability: 50 Sets Single Facer Line Per Month

320C Single Facer Corrugated Carton Box Machine With Automatic Stacker

Description
Item: Corrugated Carton Box Machine Size: 1800mm
Application: Single Facer Line Warranty: One Year
Single Facer: 320C Single Facer Roller: 320mm
High Light:

corrugated paperboard production line

,

single facer corrugated machine

320C Single Facer Line With Automatic Stacker In Corrugated Carton Box Machine



Product Introduce

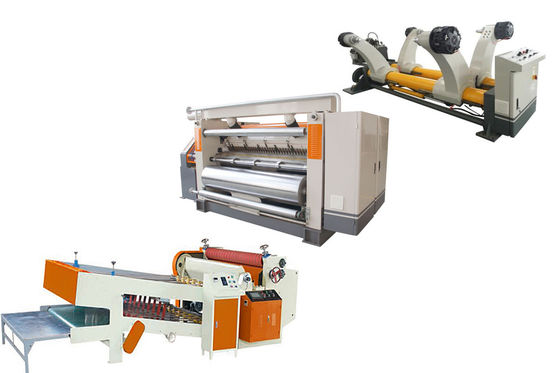

Single Facer Corrugated Paper Production Line is also called 2-layer corrugated paperboard production line. This Single facer Line is composed of Paper Roll stand, Single facer machine, paper cutting machine, Receiver Machine.



NC Computer Sheet Cutter With Automatic Paperboard Stacker



Main Technological Parameters:

1. Max. cutting width: 2000mm.

2. Design Speed: 100m/min.

3. Max. Working speed: 80m/min.

4. Min. Cutting length: 100mm.

5. Max. Cutting length: 9000mm.

6. Cutting precision: ±1.5mm (stable speed).

7. All the roll axis surface are grinded and chrome coated (except the knife axis).



Automatic Paperboard Stacker:

1. Working Width: 2000mm.

2. Speed: 80-100m/min.

3. Max. Stack length: 1350mm.

4. The machine can automatic count, automatic stack, automatic separate the pale without stop the machine.

5. Max. Stack height: 100mm.

6. This machine occupied small space, saving labor, it is the best choice for the low speed machine.



320C Single Facer Corrugated Carton Box Machine With Automatic Stacker 0

320C Single Facer Corrugated Carton Box Machine With Automatic Stacker 1
