YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece

YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece
YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece

Large Image :  YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece

Product Details:
Place of Origin: China
Brand Name: YIKE GROUP
Certification: ISO,CE
Model Number: YK-2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Corrugated Box Stitching Machine
Price: Negotiation
Packaging Details: Box Stitching Machine Packages by Plastic Film
Delivery Time: 3 Months for Corrugated Box Stitcher Machine
Payment Terms: L/C, T/T
Supply Ability: Corrugated Box Stitching Machine 50 Sets Per Month

YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece

Description
MAX(A+B)X2: 3600MM MIN(A+B)X2: 600MM
Stitching Distance: 20-120MM Stitcher Speed: 600nails/min
High Light:

semi automatic box stitching machine

,

cardboard stitching machine


YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece


I. The Characteristics

  • It can nail single nail, double nail, Strengthen nail completed in one-time, can be suitable for different kinds of customer requirements of nails.
  • It can be changed size quickly in one minute, can be operated easily and not had to experience.
  • Paper feeding section can automatic count, send after the bundle into the bundle.
  • It is man-machine interface control for convenient operation.
  • Back-automatic counting. The finished products done can be sent to the end of conveyor by setting the number(1-99).


II. Features

  • 2 Servo Motor, brand YASKAWA
  • Feeding unit auto counter
  • Computer adjust nail distance
  • Suit for 3,5ply carton box
  • Nail distance: 30-120mm
  • Speed: 500nails/min



III. Main Specifications



MAX(A+B)X2 3600mm
MIN(A+B)X2 600mm
MIN C 65mm
MIN (C+D+C) 350mm
MAX B 700mm
MIN B 150mm
MAX A 1100mm
MIN A 150mm
TOTAL POWER 4kw
MACHINE SIZE 2800×2600mm
WEIGHT 1500Kg
NAIL DISTANCE 20-120mm
SPEED 600nails/nin
NAIL MODEL 17-18
NAIL QTY 1-99

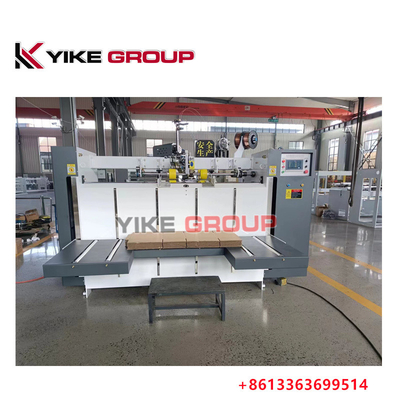

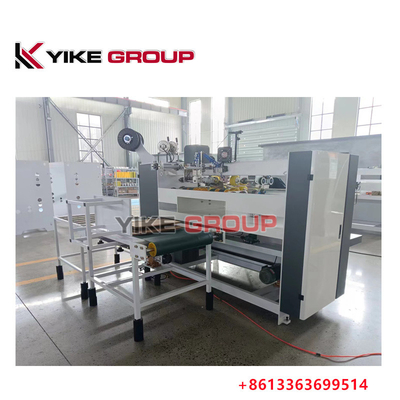

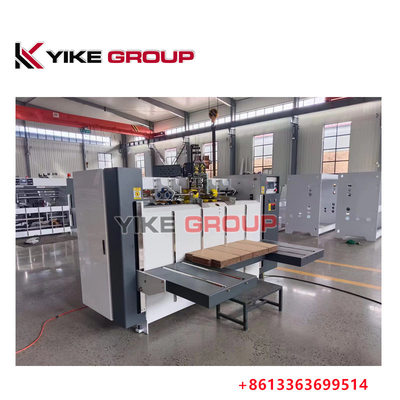

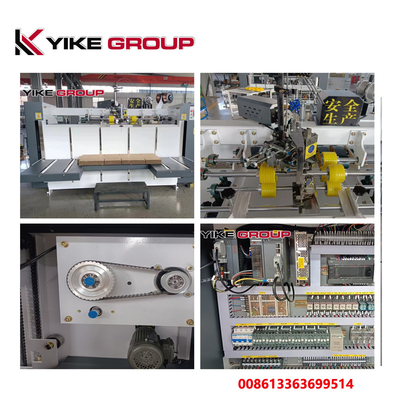

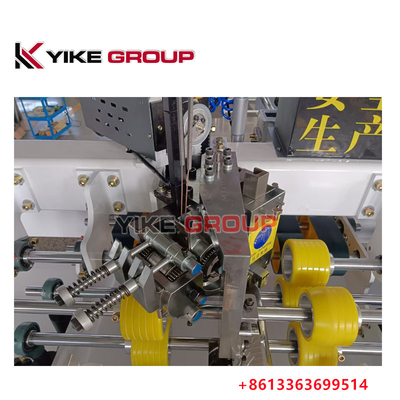

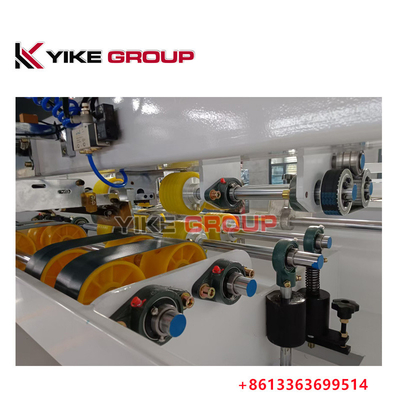

IV. Machine Detail Photo


YIKE GROUP 2000 Type Corrugated Box Stitching Machine / Box Making Stitching Machine With Single Piece 0
