1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating

1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating
1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating 1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating

Large Image :  1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating

Product Details:
Place of Origin: China
Brand Name: YUNXIANG
Certification: ISO,CE
Model Number: YX-280S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set for Single Facer Line
Packaging Details: Single Facer Packages by Plastic Film
Delivery Time: 3 Months For Single Facer Machine
Payment Terms: L/C, T/T
Supply Ability: 280S Single Facer 50 Sets per Month

1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating

Description
Item: Corrugated Cardboard Production Line Design Speed: 80m/min
Working Speed: 40-60m/min Size: 1600mm
Usage: 2 Ply Single Facer Line Application: Corrugated Carton Line
Roller: 280mm Heating Way: Electric Heating
High Light:

1600mm single facer corrugated machine

,

electric heating single facer corrugated machine

,

steam heating automatic carton box making machine

Electric Heating 1600MM 280S Single Facer Use For Corrugated Cardboard Production Line



I Single Facer Structure



The single-facer machine consists of a roll holder and a single-face corrugating machine. The corrugated medium is first heated, then the corrugated roll is used to make the desired flute type, and finally the rubber is coated at the peak (starch adhesive) with one side. Corrugated paper is bonded to form a single-faced corrugated board. The heating method of the core paper is steam heating, electric heating and oil heating.

Single-face machining flute can be customized.



II The Main Components



The main components of the single-facer machine are: base paper support, corrugating roller, pressure roller, preheating roller, glue application device, pneumatic device, paper guide sheet and vacuum adsorption device.



III Single Facer Heating Method

  1. Steam Heating
  2. Electric Heating

IV YX-280S Single Facer, Electric Heating

  1. Design speed: 80m/min
  2. Working speed: 40-60m/min
  3. Two options for gluer adjustment: Manual or Electric

V Parameters



Model SF-280S
Working width 1600 mm
Heating way Electric heating
Operate direction Left or right according to customer’s factory
Steam heating way speed 70-80m/min
Electric heating way speed 30-50m/min
Temperature range 160—200℃
Steam pressure 0.8—1.3Mpa
Air source 0.4—0.8Mpa
Flute type A,B,C,D,E,F,UV UVV





VI.  Single Facer Machine Safety Operation Procedures

  1. It is strictly forbidden to smoke and use open flames in the workshop. It is strictly forbidden for night shift personnel to order mosquito coils. It is strictly prohibited to dry clothes, objects or heating above the corrugated roller to prevent fire.
  2. The bare part of the live conductor can't be touched, and the control cabinet and electrical cabinet are forbidden to open at will, so as to avoid electric shock.
  3. Frequently clean the dust on the electrical components, and strictly abide by the principle of cleaning and repairing after turning off the power supply to prevent various safety hazards caused by short circuit caused by dust.
  4. It is forbidden to wear gloves with machine operators. Do not put your hands close to the rollers and corrugating rollers. If there is paper rolled into the rollers or corrugating rollers, they must be taken out after stopping.
  5. Operators should tighten their hair and clothing during working hours to prevent a safety accident from being caught by the running machine.
  6. The operation of the single-faced machine operator is concentrated during the working hours. It is not allowed to open a small gap. It is not allowed to talk to others while working, and it is even more difficult to make jokes. Do not leave the job without permission, and do not open other people's machines without permission.

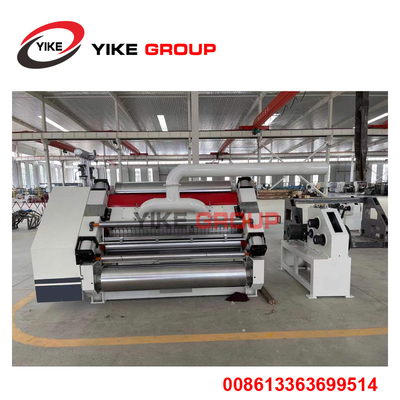

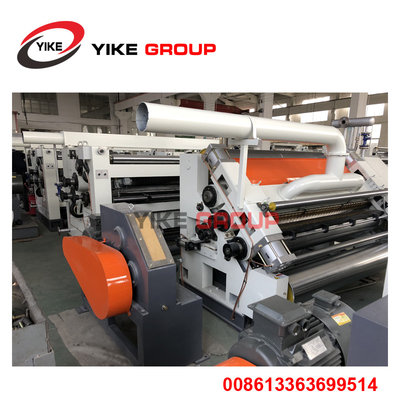

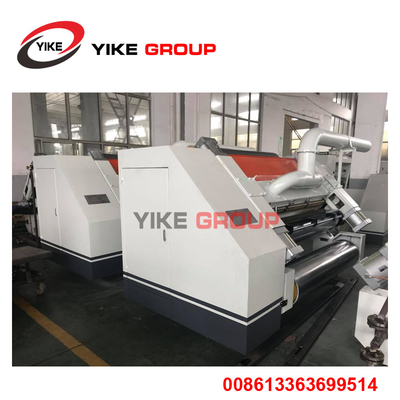

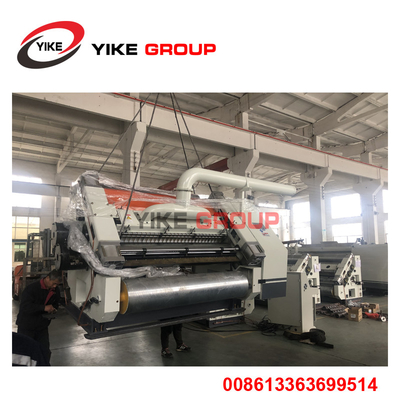

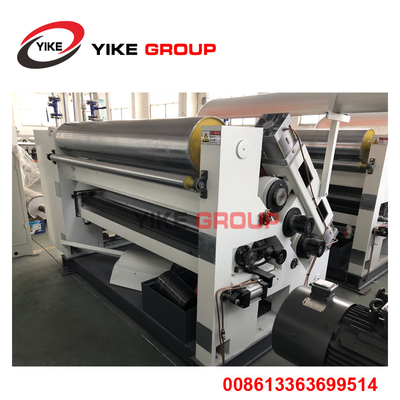

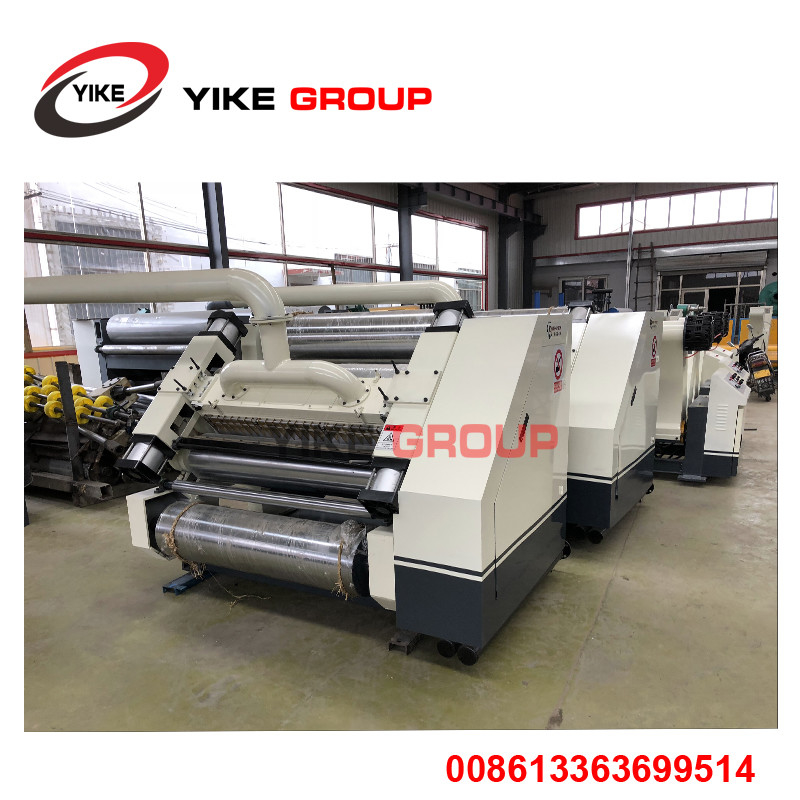

VII. 100% Real Photo



1600mm 280s Single Facer Corrugated Machine Electric Heating / Steam Heating 0
