|Work Speed::||150 Sheets/min||Name:||Lead Edge Flexo Printer Slotter Machine|
|Type::||Packaging Line||Printting Clours::||1-4 Colours|
|Option:||Slotter / Die Cutter Unit||Color:||Green, Gray|
corrugated box making machine,
automatic stacking machine

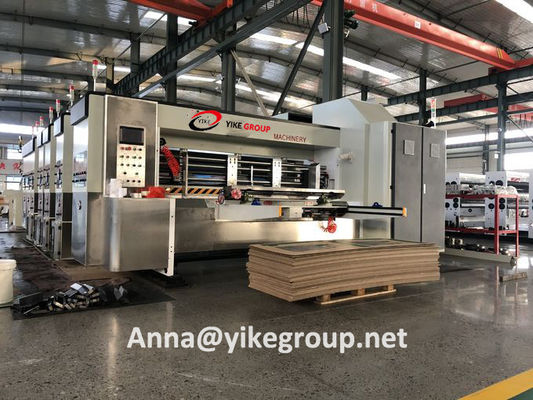

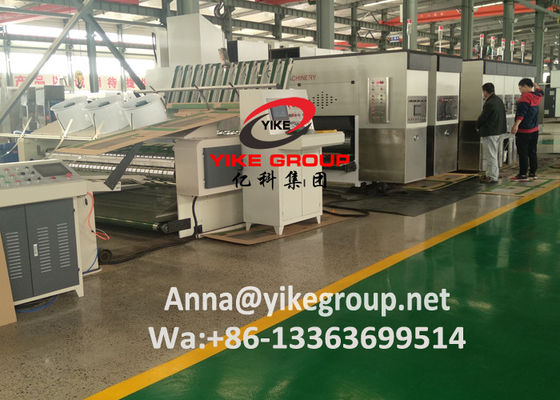

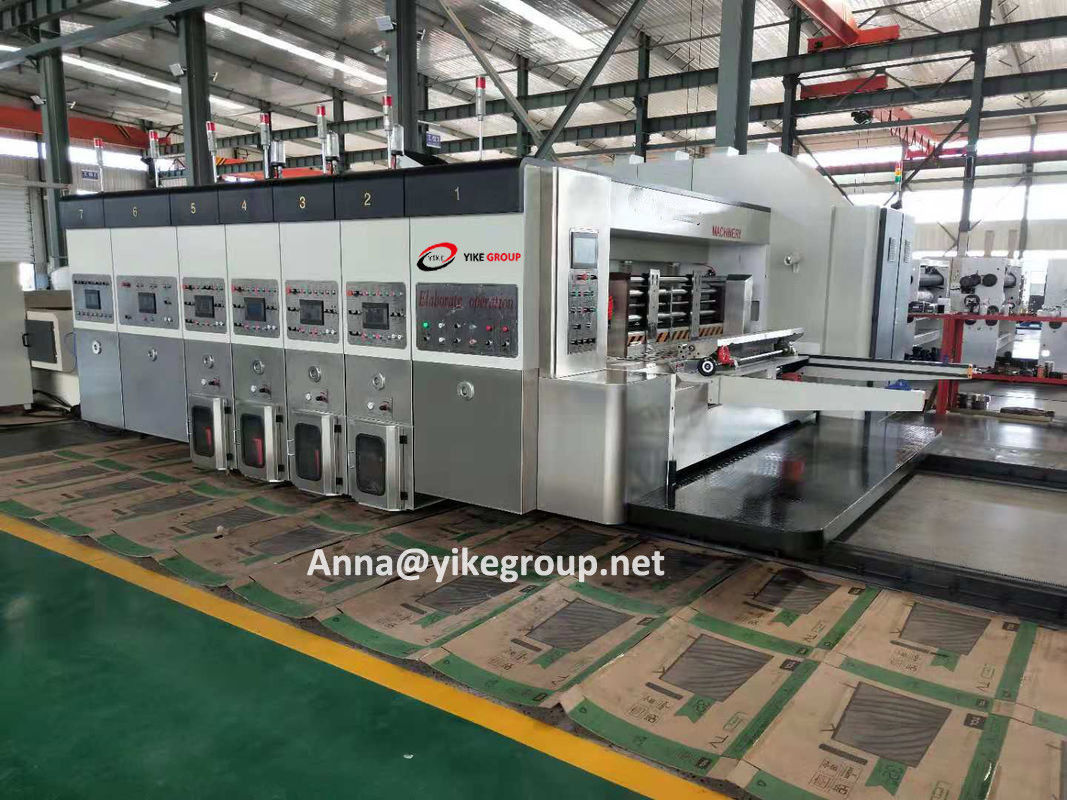

High Defination Lead Edge Flexo Printer Slotter Machine
1, printing roller
1) Printing roller ¢ 405.6 (including diameter ¢ 410)
2) Seamless steel pipe material, surface grinding, hard chrome plating.
3) Balance correction and smooth operation.
4) Ratchet fixed coil plate shaft, full-hanging grooved hanging plate. It is equipped with a hanging correction function, which saves the hanging time and improves work efficiency.
5) When loading and unloading plates, the electric control of the foot switch is reversed.
6) Phase adjustment: The printing roller is equipped with automatic zero return device, and adopts PLC multi-function touch screen control, touch screen man-machine interface, click to enter the plate roller phase adjustment interface; with automatic zero return, automatic plate and preset print position, etc. Features.
7) The axial adjustment is electric adjustment, and the adjustable distance is 10mm each.
2, embossing roller
1) High-quality seamless steel pipe, which is made by deep hole boring and boring.
2) The outer diameter of the stamping stick is ¢154mm.
3) High frequency hot loading, double disc welding.
3) Balance correction, remove the centrifugal force and run smoothly.
4) The embossing roller gap dial shows electric adjustment, the adjustment range is 1-11mm, and it is connected by the cross slider. When adjusting, the transmission gear will always ensure the correct position to engage.
3. The ceramic anilox roller adopts Jiangsu Haili Company to produce high-quality ceramic anilox roller, and the cable can be selected from 350-600 lines/inch.
1) The outer diameter of the net stick is ¢212mm.
2) The dots are consistent and the ink is evenly distributed.
3) The anilox roller gap dial shows electric adjustment, the adjustment range is 1-8mm, and the cross slider is used for connection. When adjusting, the transmission gear will always ensure the correct position to engage. (The cross slider is a bearing type cross slider)
4) Pneumatic lifting net roller prevents the ink from drying out when the printing plate is repeatedly inked and the machine is stopped for a short time.
5) This machine adopts the domestic famous brand Guangdong Keruo stable scraper system.
4, the ink chamber
1) It is made by Guangzhou Kerou Machinery Equipment Co., Ltd.
2) Innovative chamber fluid dynamics and ink seal design, good ink transfer effect, and more ink saving.
3) Air pressure or cylinder adjustment lock, scraper wear automatically compensates, so that the anilox roller and the squeegee fit better to obtain the best squeegee effect.
4) All-round installation design can replace any old-fashioned rubber roller or single scraper system.
5, ink system
1) Ink is applied by pneumatic two-way diaphragm pump, the ink supply is stable, and the operation and maintenance are simple.
2) Ink cup to prevent ink splashing and venting,
3) Stainless steel ink fountain, automatic cycle cleaning and automatic inking.
4) The equipment is equipped with an ink-deficient alarm system, which has high and low liquid level detection. If the ink quantity is insufficient, the alarm bell will be automatically sounded, and the ink quantity will be fully suspended.
A. Pre-pressure wheel (outer diameter φ198mm)
1. The upper and lower pre-pressing axles are seamless steel tubes with an outer diameter of φ130mm. The surface is polished once before plating and after plating, and the shaft is matched with five sets of pre-pressing wheels;
2. The outer pressure wheel is wrapped with the superior rubber, which does not damage the cardboard. The superior glue and the crimping seat adopt a detachable structure for easy replacement;
3. Pre-press wheel gap, computer can be adjusted, digital display, adjustment range 0-12mm.
B. Pressure roller (outer diameter is φ294.11mm)
1. The upper and lower pressure roller shaft diameter is made of seamless steel pipe, the outer diameter is φ150mm, the surface is polished once before plating and after plating, and there are four sets of pressure roller;
2. The outer pressure roller is wrapped with the superior rubber, which does not damage the cardboard. The superior rubber and the crimping seat adopt a detachable structure for easy replacement;
3. Press down the gap of the reel, the computer can be set to adjust, digital display, the adjustment range is 0-12mm.
C. conveying shaft
1. The outer diameter of the upper and lower conveying shaft is φ100mm, which is made of solid steel and is ground once after plating.
2. The upper conveying wheel is covered with voltaic rubber, and the lower conveying wheel is knurled, which can be quickly replaced after being worn;
3. Electric adjustment of the upper and lower conveying wheel gaps.
Die Cutter Unit
1. Pressure roller
1) The shaft diameter is 85mm, seamless steel pipe, after two grinding processes, the surface is plated with hard chrome and the movement is stable.
2) The pressure dial wheel dial shows electric adjustment. The adjustment range is 1-10mm. It is connected by the cross slider. When adjusting, the transmission gear will always ensure the correct position.
2, pad roller
1) Rubber pad roller Φ434.2 unknown mm (excluding superior rubber pad)
2) Alloy structure seamless steel pipe processing and grinding, hard chrome plating.
3) Youli rubber pad thickness 8mm. (outer diameter 450mm) width 250mm, under normal circumstances, 6 million times.
Contact Person: Anna YIKE GROUP
